Bulkhead Parts
Cabinet Parts
Door Parts
Dryer Heating Parts-electric
Optional Parts (not Included)
Top And Console Parts
SELECT A DIAGRAM
New Model Search:

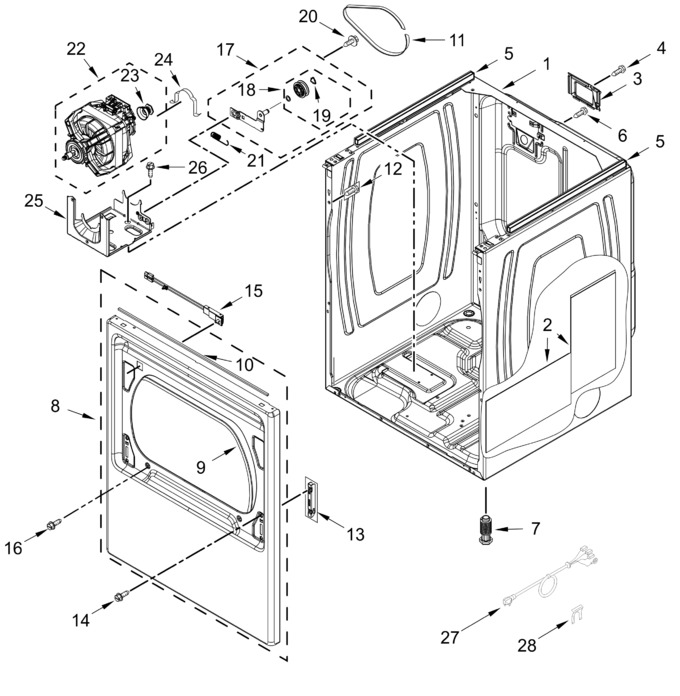

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11676145 | Cabinet (silver) |
|
$ 361.73 | |||||
| 2 | W11690850 | Panel, Dampening (Replaces: W11313127) |
|
$ 25.88 | |||||
| 3 | W11662367 | Terminal Block Cover (Replaces: W11394868) |
|
$ 69.68 | |||||
| 4 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 7.82 | |||||
| 5 | W11352071 | Seal, Foam (Replaces: W11241070) |
|
$ 64.89 | |||||
| 6 | W10850756 | Screw (Replaces: W10773242) |
|
$ 7.76 | |||||
| 7 | W11444912 | Foot, Dryer (Replaces: W11332301) |
|
Immediately | $ 26.84 | ||||
| 8 | W11790875 | Panel, Front (silver) (Replaces: W11673258) |
|
$ 264.59 | |||||
| 9 | WP3387242 | Front Panel Seal (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 10 | W11406199 | Seal, Foam (Replaces: W11261179) |
|
$ 62.14 | |||||
| 11 | W11667280 | Belt, Drive (Replaces: W11575710) |
|
$ 33.50 | |||||
| 12 | W10891954 | Screw (Replaces: 8281212) |
|
- | |||||
| 13 | W11568982 | Hinge, Inner Door (receptacle) (Replaces: W11116026) |
|
Immediately | $ 21.42 | ||||
| 14 | W10704731 | Screw |
|
- | |||||
| 15 | W11790281 | Switch, Door (Replaces: W11412774) |
|
$ 38.25 | |||||
| 16 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 17 | W10837240 | Assembly, Idler (Replaces: W10547287) |
|
Immediately | $ 35.78 | ||||
| 18 | 279640 | Assembly, Pulley (Replaces: W10468057) |
|
Immediately | $ 32.51 | ||||
| 19 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.80 | ||||
| 20 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 8.02 | |||||
| 21 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 24.57 | ||||
| 22 | W11549461 | Assembly, Motor (Replaces: W11492434) |
|
Immediately | $ 356.99 | ||||
| 23 | W10837625 | Pulley, Motor (Replaces: W10460106) |
|
Immediately | $ 12.16 | ||||
| 24 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 25.68 | ||||
| 25 | W11481730 | Bracket, Motor Mounting (Replaces: W11404905) |
|
Immediately | $ 87.83 | ||||
| 26 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 27 | W11710615 | Cord, Power (Replaces: W11578930) |
|
Immediately | $ 82.45 | ||||
| 28 | W11712577 | Clip, Strain Relief (Replaces: 694415) |
|
Immediately | $ 7.40 |
