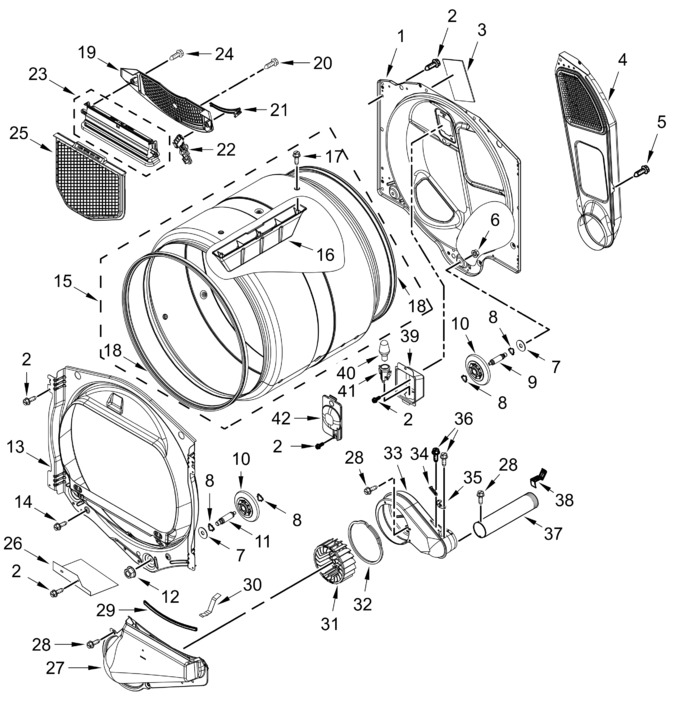

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11299301 | Bulkhead, Rear (Replaces: W11162455) |
|
$ 260.14 | |||||
| 2 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 3 | W11409002 | Pad, Foam (Replaces: W10504381) |
|
$ 23.76 | |||||
| 4 | W11677720 | Assembly, Air Duct (Replaces: W11104018) |
|
$ 220.72 | |||||
| 5 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 6 | WPW10080190 | Nut, Hex (left Hand Thread) (Replaces: W10001120) |
|
Immediately | $ 10.01 | ||||
| 7 | W11236646 | Washer (Replaces: 3387459) |
|
Immediately | $ 14.73 | ||||
| 8 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.80 | ||||
| 9 | WPW10359271 | Shaft, Drum Roller (right Hand Thread) (Replaces: W10359271) |
|
Immediately | $ 62.21 | ||||
| 10 | WPW10314173 | Roller, Support (Replaces: W10314171) |
|
Immediately | $ 28.50 | ||||
| 11 | WPW10359272 | Shaft, Drum Roller (left Hand Thread) (Replaces: W10359272) |
|
Immediately | $ 58.48 | ||||
| 12 | W11812294 | Nut, Hex (right Hand Thread) (Replaces: 3934666) |
|
$ 12.77 | |||||
| 13 | W11162467 | Bulkhead, Front |
|
$ 205.46 | |||||
| 14 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 15 | W10545923 | Assembly, Drum |
|
$ 458.60 | |||||
| 16 | W11782150 | Baffle, Drum (Replaces: 697693) |
|
Immediately | $ 95.57 | ||||
| 17 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 18 | 280114 | Seal, Drum (Replaces: W10521118) |
|
Immediately | $ 70.82 | ||||
| 19 | W11086603 | Grill, Outlet (Replaces: W10692558) |
|
Immediately | $ 36.90 | ||||
| 20 | WP488729 | Screw (Replaces: 695240) |
|
Immediately | $ 8.28 | ||||
| 21 | WP3387223 | Sensor, Electrode (Replaces: 3387223) |
|
Immediately | $ 6.17 | ||||
| 22 | WPW10298258 | Harness, Sensor (Replaces: W10298258) |
|
Immediately | $ 7.84 | ||||
| 23 | W11129408 | Assembly, Outlet Housing (Replaces: W10685669) |
|
Immediately | $ 53.28 | ||||
| 24 | WP3387230 | Screw (Replaces: 3387230) |
|
Immediately | $ 8.54 | ||||
| 25 | W10120998 | Lint Screen (Replaces: W10596627) |
|
$ 67.16 | |||||
| 26 | W11257251 | Shield, Blower |
|
$ 72.06 | |||||
| 27 | WPW10128606 | Assembly, Lint Duct (Replaces: 8066168) |
|
$ 217.48 | |||||
| 28 | WP489463 | Screw (Replaces: 489463) |
|
$ 8.25 | |||||
| 29 | WP697813 | Seal, Drum Front (Replaces: 697814) |
|
Immediately | $ 8.37 | ||||
| 30 | WP8066208 | Clip, Spring (Replaces: W10345456) |
|
$ 8.83 | |||||
| 31 | WP697772 | Wheel, Blower (Replaces: 697772) |
|
Immediately | $ 59.07 | ||||
| 32 | W11596046 | Seal, Spill Guard (Replaces: W10841728) |
|
Immediately | $ 54.09 | ||||
| 33 | W10888146 | Housing, Blower (Replaces: 8544362) |
|
$ 106.79 | |||||
| 34 | W10909685 | Fuse, Thermal (91c) (Replaces: W10693363) |
|
Immediately | $ 71.42 | ||||
| 35 | W11683629 | Thermistor (Replaces: W11452857) |
|
$ 62.36 | |||||
| 36 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 37 | 279936 | Pipe, Exhaust (Replaces: 8066224) |
|
$ 154.18 | |||||
| 38 | W11684573 | Clip, Exhaust (Replaces: 8572105) |
|
$ 8.17 | |||||
| 39 | 3977373 | Bracket, Drum Light |
|
$ 111.08 | |||||
| 40 | WP22002263 | Bulb, Light (Replaces: 3406124) |
|
Immediately | $ 14.85 | ||||
| 41 | W11222979 | Socket, Light (Replaces: W10214261) |
|
Immediately | $ 118.79 | ||||
| 42 | W11226088 | Lens, Drum Light (Replaces: 3402841) |
|
$ 32.64 |
