SELECT A DIAGRAM

Control Panel And Latch Parts


Door And Panel Parts


Fill, Drain And Overfill Parts


Inner Door Parts


Lower Rack Parts


Optional Parts (not Included)


Pump, Washarm And Motor Parts


Tub And Frame Parts


Upper Rack And Track Parts


Upper Wash And Rinse Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

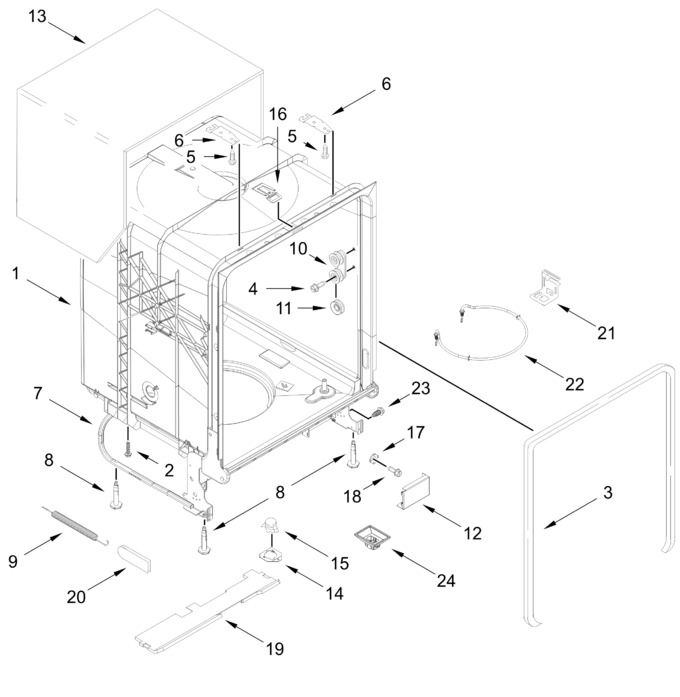

1	W11513977		Tub Assembly (includes Heater Assembly)   (Replaces: W11467711)				$ 725.47
3	W11768590		Seal, Tub   (Replaces: W11683628)			Immediately	$ 32.75
5	W11551549		Screw   (Replaces: W11296374)				$ 14.72
7	W11680335		Support, Bottom   (Replaces: W11623675)				$ 87.52
8	8193716		Leveler, Leg   (Replaces: W10619352)			Immediately	$ 88.96
10	WP8575897		Wheel Assembly   (Replaces: 8575897)			Immediately	$ 11.19
11	8194001		Wheel   (Replaces: 8270018)			Immediately	$ 43.06
12	W11779375		Cover, Terminal Box   (Replaces: W11736701)				$ 29.53
13	W10896113		Shield, Tub Sound   (Replaces: W10866979)			Immediately	$ 68.68
14	W11684257		Clip, Thermostat   (Replaces: W11525335)		Appelez-nous	-
16	WPW10544004		Strike, Latch   (Replaces: W10544004)			Immediately	$ 45.69
19	W11747584		Sound Insulation, Bottom   (Replaces: W10819539)			Immediately	$ 28.63
21	W11027055		Bracket, Heater Support   (Replaces: W10732961)				$ 35.84
24	W11684260		Shield, Thermostat   (Replaces: W11656602)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
