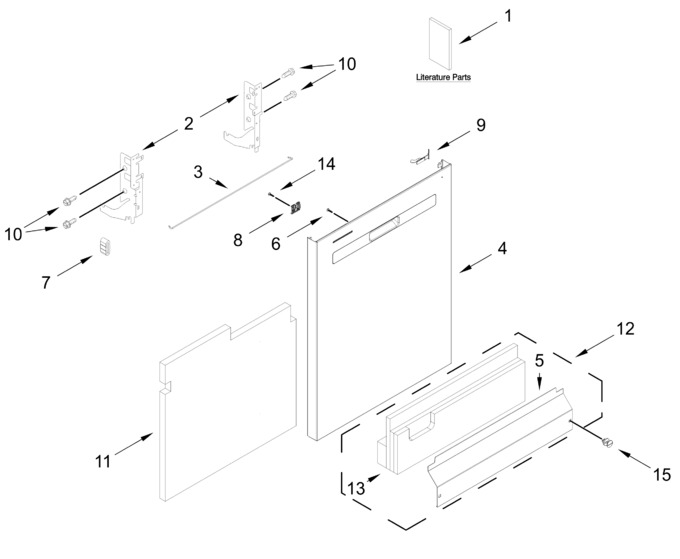

Control Panel And Latch Parts


Door And Panel Parts


Fill, Drain And Overfill Parts


Inner Door Parts


Lower Rack Parts


Optional Parts (not Included)


Pump, Washarm And Motor Parts


Tub And Frame Parts


Upper Rack And Track Parts


Upper Wash And Rinse Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11806565		Arm, Hinge (left)   (Replaces: W11687975)			Immediately	$ 142.39
3	W10850371		Stiffener, Door   (Replaces: W10803537)			Immediately	$ 32.88
4	W11613483		Front Panel (stainless, Includes Barrel Nut And Light Pipe)   (Replaces: W11528192)			Immediately	$ 435.04
5	W11763736		Access Panel (black)   (Replaces: W11674252)			Immediately	$ 42.25
6	WP9741232		Screw   (Replaces: 9741232)			Immediately	$ 5.07
7	WP8268961		Sleeve, Friction   (Replaces: 8268961)			Immediately	$ 5.93
8	W10692757		Barrel Nut, Front Panel				$ 16.01
9	W11504190		Light, Pipe		Appelez-nous	-
10	W11755068		Screw   (Replaces: W11714324)		Appelez-nous	-
11	W11126003		Insulation, Front Panel   (Replaces: W10315897)			Immediately	$ 65.25
12	W10827631		Access Panel & Insulation Assy (black)   (Replaces: W10369023)			Immediately	$ 195.64
13	W10831329		Insulation, Toe Panel   (Replaces: W10519755)			Immediately	$ 43.30
14	WPW10213953		Screw   (Replaces: W10711884)			Immediately	$ 7.55
15	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 30.39
	W11532444		Tech Sheet		Appelez-nous	-
	W11650522		Energy Guide		Appelez-nous	-
	W11774893		Owners Manual		Appelez-nous	-
	W11806608		Arm, Hinge (right)   (Replaces: W11687976)			Immediately	$ 142.24
