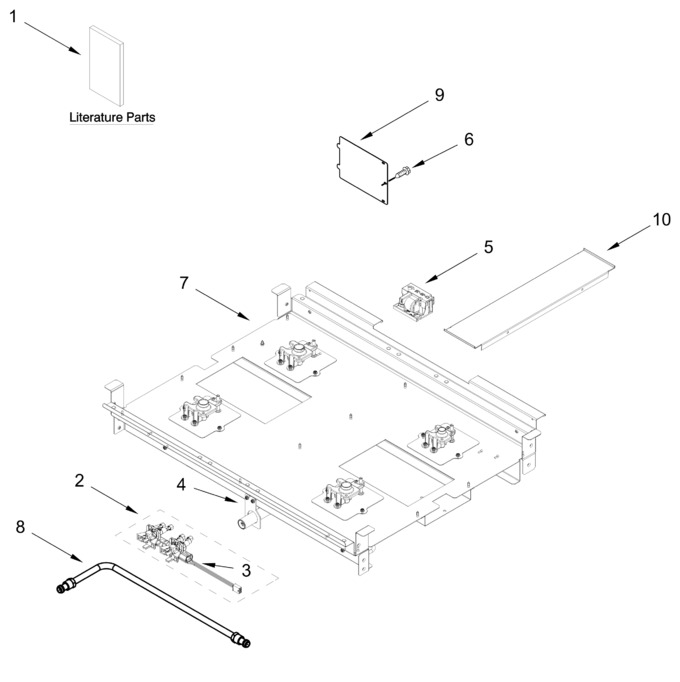

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11785686 | Valve Manifold Assembly (Replaces: W11651408) |
|
- | |||||
| 3 | W11785278 | Switch, Harness (Replaces: W11596339) |
|
- | |||||
| 4 | W11320153 | Bracket, Manifold (Replaces: W11121194) |
|
$ 79.97 | |||||
| 5 | W11818690 | Module, Spark (Replaces: W11121317) |
|
Immediately | $ 81.60 | ||||
| 6 | 7101P42660 | Screw |
|
- | |||||
| 7 | ARIDBAA9548A1EB15B27ADE369B6B57A1AD | Box, Burner (not Serviced) |
|
- | |||||
| 8 | W11335267 | Tube, Manifold Supply (Replaces: W10892073) |
|
- | |||||
| 9 | W10115843 | Cover, Ignition |
|
- | |||||
| 10 | W11121361 | Filler, Cooktop (black) |
|
$ 465.65 | |||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | ||||||
| W11785685 | Valve Manifold Assembly (Replaces: W11651409) |
|
$ 534.74 | ||||||
| W11200325 | Harness, Communication |
|
$ 116.19 | ||||||
| W10624584 | Cord, Power |
|
$ 189.57 | ||||||
| ARI9507B2260F4F1180177DEA5E15D01986 | (left Front, Left Rear) |
|
- | ||||||
| ARI55C06F183F5209A80F64451115E0C931 | (left) |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11317791 | Harness, Wifi (Replaces: W11242785) |
|
$ 113.72 | ||||||
| W10780278 | Harness, Door Lock |
|
Immediately | $ 95.87 | |||||
| W11544575 | Bracket, Anti-tip (Replaces: W10253333) |
|
$ 59.88 | ||||||
| 7101P48560 | Screw, Anti-tip Kit |
|
- | ||||||
| 4450800 | Screw, Grounding |
|
$ 13.47 | ||||||
| W11565476 | Diagram, Wiring (oven) |
|
- | ||||||
| W11428599 | Kit, Lp Conversion (Replaces: W11422176) |
|
Immediately | $ 47.84 | |||||
| W11184746 | Guide, Internet Connectivity |
|
- | ||||||
| W11200328 | Harness, Cooktop |
|
$ 199.91 | ||||||
| ARI97EE49875860764C24B1F1C761487B6B | (right) |
|
- | ||||||
| W11575703 | Diagram, Wiring (cooktop) |
|
- | ||||||
| W11446236 | Ignitor Wire, Wire-electrode Bake (Replaces: W11311196) |
|
$ 21.16 | ||||||
| W11508888 | Installation Instructions |
|
- | ||||||
| W11508896 | Use And Care Guide |
|
- | ||||||
| W11448065 | Harness, Main |
|
$ 330.37 | ||||||
| W11202275 | Sheet, Tech |
|
- | ||||||
| W11177312 | Guide, Quick Start |
|
- | ||||||
| W11335268 | Tube, Manifold Supply (Replaces: W10892076) |
|
- | ||||||
| ARIF4444C9CC15AF901E399B849F8A4059C | (right Front And Right Rear) |
|
- |
