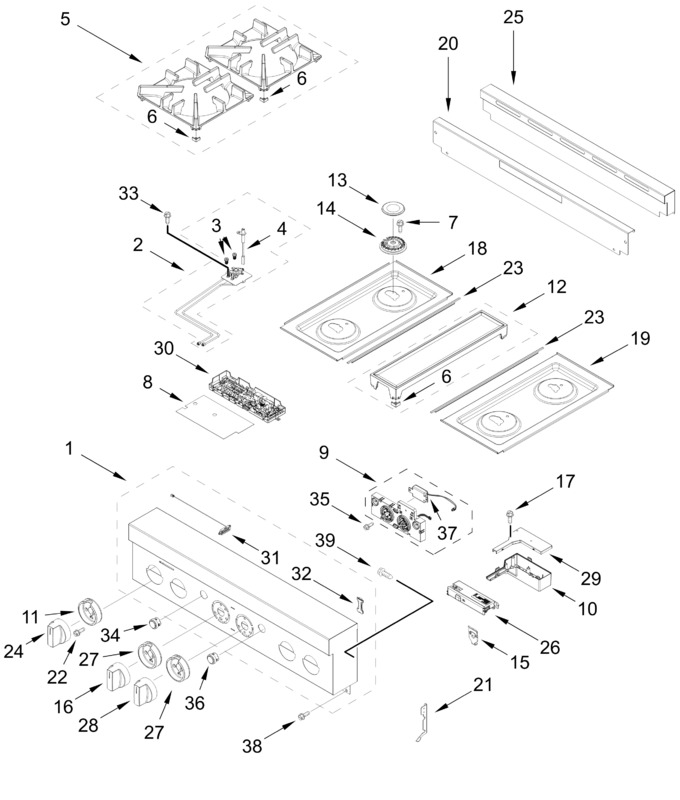

SELECT A DIAGRAM

Burner Box Parts


Chassis Parts


Cooktop, Burner, And Grate Parts


Internal Oven Parts


Optional Parts (not Included)


Oven Door Parts


Oven Parts


Venting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11289589		Panel, Console   (Replaces: W10878251)				$ 717.72
2	W11333305		Orifice Holder Assembly   (Replaces: W10892793)				$ 125.39
3	W11643164		Orifice, Main (17.4k)   (Replaces: W10892422)			Immediately	$ 60.97
4	W11573760		Igniter   (Replaces: W11238757)			Immediately	$ 23.48
5	W11515370		Grate Assembly (black, Set Of 2)   (Replaces: W11291176)				$ 394.33
6	W11550692		Bumper, Grate   (Replaces: W11042504)			Immediately	$ 12.57
7	W11766499		Screw   (Replaces: W11323260)			Immediately	$ 12.72
8	W11320149		Barrier, Appliance Manager   (Replaces: W11281269)				$ 130.57
9	W11492291		Interface, User   (Replaces: W11436328)				$ 573.94
10	W11320411		Cover, Wifi Outer   (Replaces: W11205795)		Appelez-nous	-
11	W11316873		Bezel (brass)   (Replaces: W11090283)			Immediately	$ 49.29
12	W11515366		Grate Filler Kit   (Replaces: W11291175)				$ 253.98
13	W11328971		Cap, Burner (black, Set Of 4)   (Replaces: W11121391)				$ 173.40
14	W11319683		Spreader, Flame (high)   (Replaces: W10891987)			Immediately	$ 250.69
15	W11318207		Spring Clip, Range   (Replaces: W11036559)				$ 12.88
16	W11574370		Knob, Oven Mode (stainless)   (Replaces: W11496094)				$ 93.11
17	7101P62460		Screw		Appelez-nous	-
18	W11316700		Panel, Left Cooktop   (Replaces: W11038237)				$ 502.01
19	W11333312		Panel, Right Cooktop   (Replaces: W11038253)				$ 475.25
20	W10323248		Insert, Island Trim				$ 268.00
21	W10130760		Bracket, Moving Console (left)				$ 75.94
22	W11509770		Screw   (Replaces: W11328357)				$ 14.23
23	W10271524		Trim, T-strip (black)				$ 212.34
24	W11785279		Knob, Burner (stainless)   (Replaces: W11560125)				$ 52.49
25	W11477029		Trim, Island				$ 385.64
26	W11234290		Wifi Module Assembly   (Replaces: W11110768)				$ 179.89
27	W11317499		Bezel, Oven (stainless)   (Replaces: W10914998)				$ 28.02
28	W11574369		Knob, Oven Temperature (stainless)   (Replaces: W11496091)				$ 118.01
29	W11320410		Cover, Wifi Inner   (Replaces: W11205794)		Appelez-nous	-
30	W11620689		Manager, Appliance (powermax)   (Replaces: W11543347)				$ 472.57
31	W11318855		Antenna, Wifi   (Replaces: W11130078)				$ 228.92
32	W11318856		Light Pipe Assembly   (Replaces: W10896369)				$ 109.35
33	7101P42660		Screw		Appelez-nous	-
34	W11318857		Button Assembly, Oven Light   (Replaces: W11090651)				$ 23.81
35	WP3400814		Screw   (Replaces: 3400814)				$ 4.62
36	W11319196		Button Assembly, Oven Start   (Replaces: W11090650)				$ 23.67
37	W11123146		Speaker Assembly   (Replaces: W10568405)				$ 80.93
38	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
39	3196265		Screw   (Replaces: 3400099)		Appelez-nous	-
	ARI68146C2FADA8E1AE3122F181AC9275E2		(left Front, Right Front)		Appelez-nous	-
	W11333309		Orifice Holder Assembly   (Replaces: W10892730)				$ 122.96
	ARIA12C7E5D311C54B1AACBC1820DF34957		(right Front)		Appelez-nous	-
	W10130759		Bracket, Moving Console (right)				$ 75.94
	ARI58AF8D252016DDED824FB66FD9161A41		(for 4 Cooktop Burners)		Appelez-nous	-
	ARI8EE4F5E59D536F62986D20F6E6C7927B		(left Front, Left Rear, Right Front)		Appelez-nous	-
	W11661909		Orifice, Simmer (2.6k)   (Replaces: W10892435)			Immediately	$ 74.14
	W11620688		Orifice Holder Assembly   (Replaces: W11505833)		Appelez-nous	-
	W11238756		Igniter			Immediately	$ 67.96
	W10892440		Orifice, Main (7.2k)				$ 99.86
	W11333306		Orifice Holder Assembly   (Replaces: W10892494)			Immediately	$ 127.98
	W10892418		Orifice, Main (15.4k)			Immediately	$ 103.03
	W10892429		Orifice, Simmer (2.0k)				$ 99.86
	W11319673		Spreader, Flame (low)   (Replaces: W10892022)			Immediately	$ 229.46
	ARI76BF577D359F4F7B6AC1C45BB9FB0006		(left Front)		Appelez-nous	-
	ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9		(left Rear)		Appelez-nous	-
	ARI283693F3486669333C7F1EE938CD8A5B		(right Rear)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
