Base And Pedestal Unit Parts

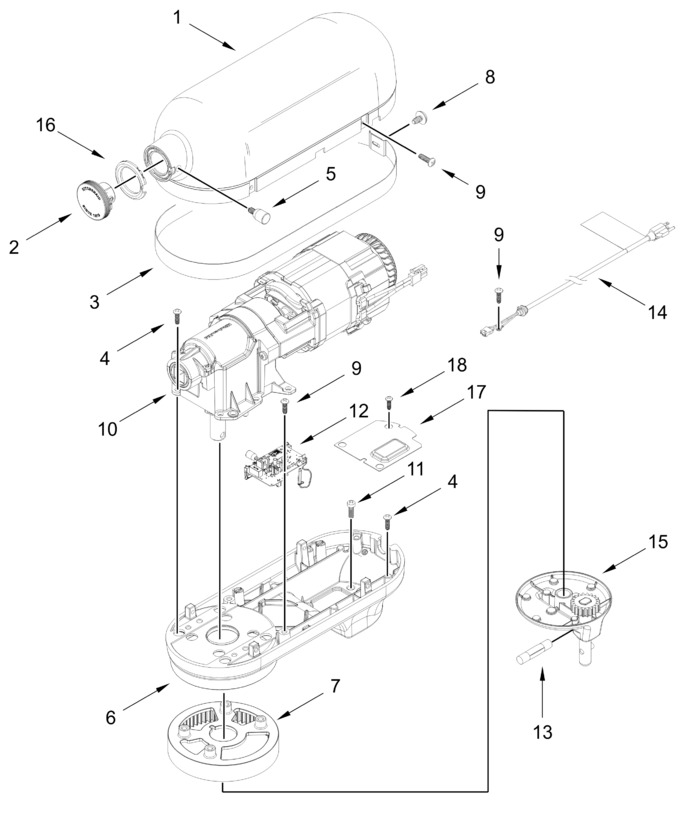

Case, Gearing And Planetary Unit Parts
Color Variation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARIE2349C8387B89940710B9163D09F6C3F | Motor Housing (refer To Color Variation Parts Page) |
|
- | |||||
| 2 | W11677160 | Cap, Attachment Hub (Replaces: W11618094) |
|
- | |||||
| 3 | ARI608B4B1E04B92500E5C565DDA719ABEA | Trim Band (refer To Color Variation Parts Page) |
|
- | |||||
| 4 | W10914506 | Screw (Replaces: W10351843) |
|
$ 4.59 | |||||
| 6 | ARI8E175B3626B97CC6F0F94E9B054BDD04 | Lower Gearcase (refer To Color Variation Parts Page) |
|
- | |||||
| 7 | W11647948 | Gear, Ring And Plate Assembly (Replaces: W11454895) |
|
- | |||||
| 8 | WP3196170 | Screw (Replaces: 3400617) |
|
$ 7.55 | |||||
| 9 | WP3400814 | Screw (Replaces: 3400814) |
|
$ 4.62 | |||||
| 10 | W11649201 | Motor, 230 Volt Assembly (Replaces: W11480076) |
|
- | |||||
| 11 | W10913677 | Screw (Replaces: 3400200) |
|
$ 4.64 | |||||
| 12 | W11752213 | Control Assembly, 220/230 Volt (Replaces: W11512562) |
|
- | |||||
| 13 | WPW10234531 | Pin, Groove (Replaces: W10234531) |
|
Immediately | $ 5.29 | ||||
| 14 | W11729258 | Power Cord (black) (Replaces: W11459250) |
|
- | |||||
| 15 | ARIAA41C36806E6470948E1E2606E8CED45 | Planetary Assembly (refer To Color Variation Parts Page) |
|
- | |||||
| 16 | W11123129 | Ring, Attachment Hub (Replaces: 9706141) |
|
$ 19.69 | |||||
| 17 | W11560130 | Plate, Lower Housing |
|
- | |||||
| 18 | W11677192 | Screw (Replaces: W10419037) |
|
- | |||||
| W11521862 | Thumb Screw (satin Chrome) |
|
- |
