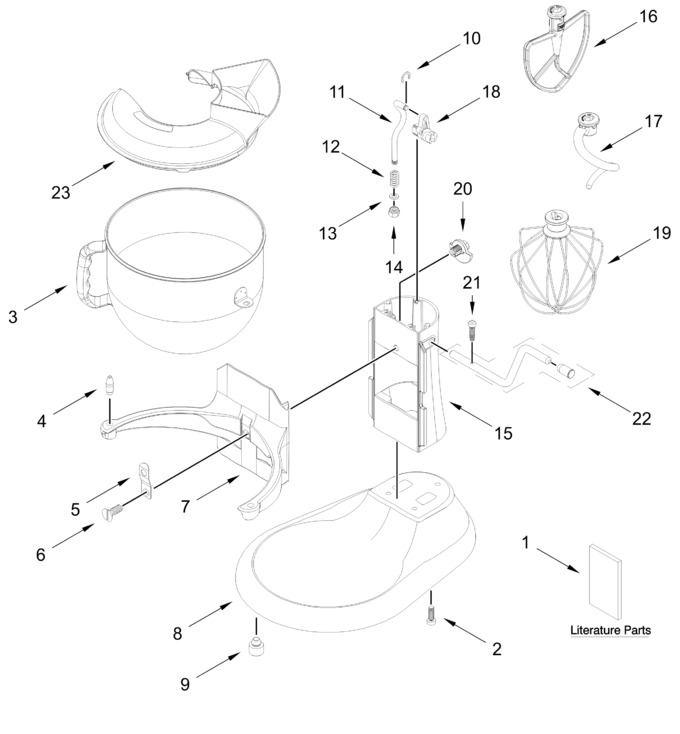

Base And Pedestal Unit Parts


Case, Gearing And Planetary Unit Parts


Color Variation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W10913677		Screw   (Replaces: 3400200)				$ 4.64
3	W11762674		Bowl (6 Qt)   (Replaces: W11683440)				$ 134.82
4	WP240185		Pin, Retaining Bowl   (Replaces: 240185)				$ 4.50
5	WPW10504114		Clip, Bowl Retainer   (Replaces: W10504114)			Immediately	$ 5.14
6	W10861883		Screw   (Replaces: 3400018)			Immediately	$ 4.94
7	ARI7AB936196EFA5101EA499FE554FAFF8D		Bowl Support And Pins (refer To Color Variation Parts Page)		Appelez-nous	-
8	ARIBE6A50F41021F970B26A621F1823EE46		Base And Foot Assembly (refer To Color Variation Parts Page)		Appelez-nous	-
9	WP9708649		Foot   (Replaces: 9708649)			Immediately	$ 4.79
10	WP9703307		Ring, Retaining   (Replaces: 9703307)			Immediately	$ 4.42
11	W11775238		Rod, Bowl Lift   (Replaces: W11376364)				$ 5.73
12	4159622		Spring, Lift Rod   (Replaces: 9237)			Immediately	$ 4.70
13	W11708395		Washer   (Replaces: 9703439)				$ 4.47
14	8533907		Nut				$ 24.83
15	ARIB0796DB2D87D7C03087244F658F4035A		Column And Pins (refer To Color Variation Parts Page)		Appelez-nous	-
16	W11677164		Beater, Flat (silent Silver)   (Replaces: W11571991)		Appelez-nous	-
17	W11677163		Hook, Dough (silent Silver)   (Replaces: W11571994)		Appelez-nous	-
18	WP9706885		Arm, Bowl Lift   (Replaces: 9706885)			Immediately	$ 5.17
19	WP9703491		Whip, Wire   (Replaces: 9703491)			Immediately	$ 43.13
20	W11721849		Cam, Adjusting   (Replaces: 9703426)				$ 6.08
21	WP3400814		Screw   (Replaces: 3400863)				$ 4.62
22	W11682564		Assy, Cap And Handle   (Replaces: W11641104)		Appelez-nous	-
23	W11647946		Shield, Pouring (wide)   (Replaces: W11385624)				$ 58.43
	W11556523		Use & Care Guide (emea)		Appelez-nous	-
