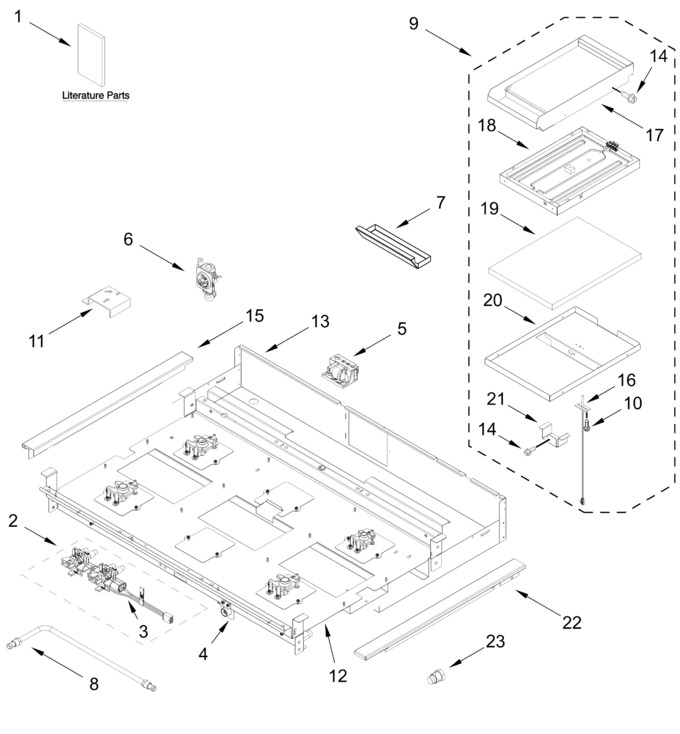

Burner Box And Griddle Parts
Cooktop, Burner, And Grate Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11785277 | Valve Manifold Assembly (Replaces: W11651412) |
|
- | |||||
| 3 | W11785278 | Switch, Harness (Replaces: W11596339) |
|
- | |||||
| 4 | W11121199 | Bracket, Manifold |
|
- | |||||
| 5 | W11818690 | Module, Spark (Replaces: W11121317) |
|
Immediately | $ 81.60 | ||||
| 6 | W11106948 | Regulator, Pressure (Replaces: W10449140) |
|
Immediately | $ 238.90 | ||||
| 7 | W10276497 | Tray, Griddle Drip |
|
$ 404.03 | |||||
| 8 | W11336704 | Tube, Manifold Supply (Replaces: W10892452) |
|
- | |||||
| 9 | W11602621 | Griddle Module Assembly (Replaces: W10891745) |
|
Immediately | $ 1,547.02 | ||||
| 10 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 11 | 8285790 | Bracket, Mounting Orifice |
|
$ 85.85 | |||||
| 12 | ARI67489F6E1A2CB69AB1596C613567F5E0 | Burner Box Assembly (not Serviced) |
|
- | |||||
| 13 | ARIDBAA9548A1EB15B27ADE369B6B57A1AD | Box, Burner (not Serviced) |
|
- | |||||
| 14 | W10162096 | Screw |
|
$ 21.90 | |||||
| 15 | W11339740 | Trim, Main (left) (Replaces: W11047750) |
|
Immediately | $ 177.07 | ||||
| 16 | W11319618 | Sensor, Griddle (Replaces: W10891584) |
|
$ 228.48 | |||||
| 17 | W11602622 | Module, Griddle (Replaces: W10891567) |
|
- | |||||
| 18 | W11319602 | Element, Griddle (Replaces: W10891698) |
|
$ 369.48 | |||||
| 19 | W11319228 | Insulation, Griddle (Replaces: W11121383) |
|
- | |||||
| 20 | W11330430 | Tray, Griddle Insulation |
|
- | |||||
| 21 | W11319226 | Bracket, Griddle-rtd (Replaces: W11121384) |
|
- | |||||
| 22 | W11339741 | Trim, Main (right) (Replaces: W11047752) |
|
Immediately | $ 177.07 | ||||
| 23 | W10892063 | Plug, Supply Outlet |
|
- | |||||
| W11337056 | Tube, Manifold Supply (Replaces: W10892450) |
|
$ 177.42 | ||||||
| W11565473 | Wiring Diagram, Cooktop |
|
- | ||||||
| W10624584 | Cord, Power |
|
$ 189.57 | ||||||
| W11508905 | Use And Care Guide |
|
- | ||||||
| W11508892 | Installation Instructions |
|
- | ||||||
| W11428599 | Kit, Lp Conversion (Replaces: W11422176) |
|
Immediately | $ 47.84 | |||||
| W11200326 | Harness, Cooktop |
|
- | ||||||
| W11202295 | Sheet, Tech |
|
- | ||||||
| ARI97EE49875860764C24B1F1C761487B6B | (right) |
|
- | ||||||
| W11038934 | Harness, Jumper |
|
$ 186.90 | ||||||
| ARI130620F5738F97FA53E648D69A4CE80B | (left Front, Left Rear) |
|
- | ||||||
| 4450800 | Screw, Grounding |
|
$ 13.47 | ||||||
| W11317787 | Harness, Griddle (Replaces: W10903727) |
|
$ 116.76 | ||||||
| ARIF4444C9CC15AF901E399B849F8A4059C | (right Front And Right Rear) |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| ARI55C06F183F5209A80F64451115E0C931 | (left) |
|
- | ||||||
| W11785276 | Valve Manifold Assembly (Replaces: W11651413) |
|
- |
