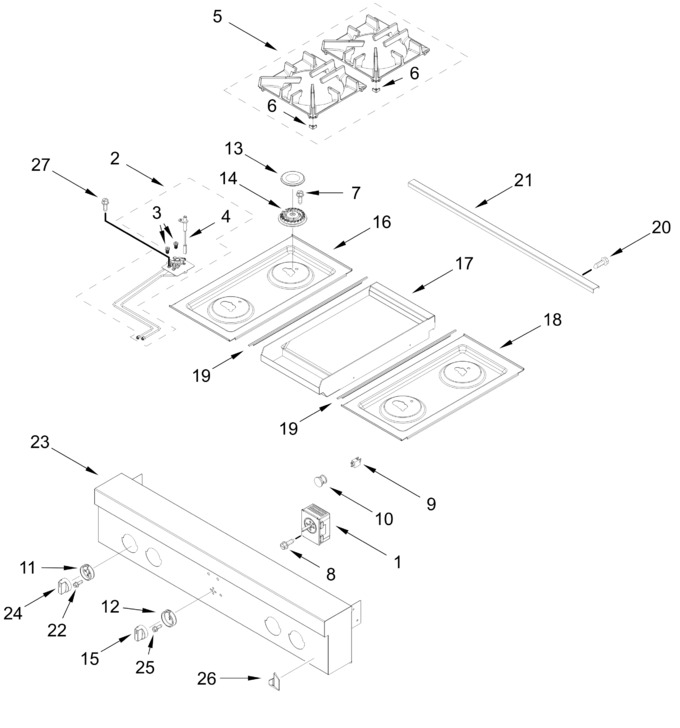

Cooktop, Burner, And Grate Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11318834 | Control, Griddle (Replaces: W11033497) |
|
$ 356.52 | |||||
| 2 | W11337062 | Orifice Holder Assembly (Replaces: W10892771) |
|
Immediately | $ 128.25 | ||||
| 3 | W11643164 | Orifice, Main (17.4k) (Replaces: W10892422) |
|
Immediately | $ 60.97 | ||||
| 4 | W11580024 | Igniter (Replaces: W11238758) |
|
Immediately | $ 23.66 | ||||
| 5 | W11515370 | Grate Assembly (black, Set Of 2) (Replaces: W11291176) |
|
$ 394.33 | |||||
| 6 | W11550692 | Bumper, Grate (Replaces: W11042504) |
|
Immediately | $ 12.57 | ||||
| 7 | W11766499 | Screw (Replaces: W11323260) |
|
Immediately | $ 12.72 | ||||
| 8 | W10674068 | Screw |
|
$ 24.39 | |||||
| 9 | W10116114 | Light, Indicator Housing |
|
Immediately | $ 93.57 | ||||
| 10 | W10294500 | Lens, Indicator Light |
|
$ 7.69 | |||||
| 11 | W11316873 | Bezel (brass) (Replaces: W11090283) |
|
Immediately | $ 49.29 | ||||
| 12 | W11317495 | Bezel, Griddle (brass) (Replaces: W11104966) |
|
$ 55.28 | |||||
| 13 | W11328971 | Cap, Burner (black, Set Of 4) (Replaces: W11121391) |
|
$ 173.40 | |||||
| 14 | W11319683 | Spreader, Flame (high) (Replaces: W10891987) |
|
Immediately | $ 250.69 | ||||
| 15 | W11620693 | Knob, Griddle (stainless) (Replaces: W11496089) |
|
- | |||||
| 16 | W11316700 | Panel, Left Cooktop (Replaces: W11038237) |
|
$ 502.01 | |||||
| 17 | ARIED961ACF1DFB3262BCF1A3D165D9DAED | Griddle Module Assembly (see Burner Box And Griddle Parts Page) |
|
- | |||||
| 18 | W11333312 | Panel, Right Cooktop (Replaces: W11038253) |
|
$ 475.25 | |||||
| 19 | W10291193 | Trim, L-strip |
|
- | |||||
| 20 | 7101P33860 | Screw |
|
- | |||||
| 21 | W11355760 | Trim, Island |
|
$ 246.15 | |||||
| 22 | W11509770 | Screw (Replaces: W11328357) |
|
$ 14.23 | |||||
| 23 | W11634758 | Console Panel (Replaces: W10878263) |
|
- | |||||
| 24 | W11785279 | Knob, Burner (stainless) (Replaces: W11560125) |
|
$ 52.49 | |||||
| 25 | 7101P30960 | Screw |
|
- | |||||
| 26 | W11700312 | Badge (stainless) (Replaces: W11238658) |
|
Immediately | $ 116.54 | ||||
| 27 | 7101P42660 | Screw |
|
- | |||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- | ||||||
| ARI8EE4F5E59D536F62986D20F6E6C7927B | (left Front, Left Rear, Right Front) |
|
- | ||||||
| ARI68146C2FADA8E1AE3122F181AC9275E2 | (left Front, Right Front) |
|
- | ||||||
| W11661909 | Orifice, Simmer (2.6k) (Replaces: W10892435) |
|
Immediately | $ 74.14 | |||||
| W11238756 | Igniter |
|
Immediately | $ 67.96 | |||||
| W11337065 | Orifice Holder Assembly (Replaces: W10892772) |
|
$ 128.73 | ||||||
| W10892440 | Orifice, Main (7.2k) |
|
$ 99.86 | ||||||
| W10892429 | Orifice, Simmer (2.0k) |
|
$ 99.86 | ||||||
| W11337063 | Orifice Holder Assembly (Replaces: W10892486) |
|
Immediately | $ 128.27 | |||||
| W11319673 | Spreader, Flame (low) (Replaces: W10892022) |
|
Immediately | $ 229.46 | |||||
| ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 | (left Rear) |
|
- |
