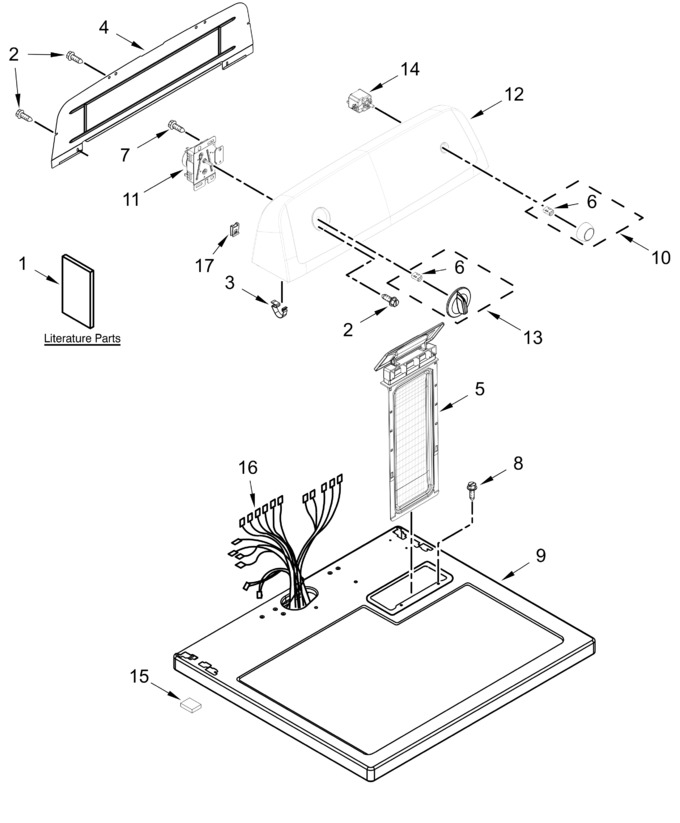

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.19
3	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
4	WPW10416486		Panel, Rear Console   (Replaces: W10416486)				$ 126.09
5	W11778253		Lint Screen (white)   (Replaces: W11713539)			Immediately	$ 52.03
6	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.81
7	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.82
8	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.06
9	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 332.62
10	W11816803		Knob, Push To Start (grey)   (Replaces: W11777048)		Appelez-nous	-
11	W10857612		Timer   (Replaces: W10745655)			Immediately	$ 175.61
12	W11816804		Assembly, Console (white)   (Replaces: W11774617)		Appelez-nous	-
13	W11816801		Timer Knob Assembly (grey)   (Replaces: W11774614)		Appelez-nous	-
14	WPW10420741		Switch, Push To Start   (Replaces: W10420741)			Immediately	$ 30.10
15	3389682		Spacer, Toe Panel				$ 8.79
16	WPW10450286		Harness, Wiring   (Replaces: W10450286)				$ 234.35
17	W11213336		U-nut   (Replaces: W10298336)				$ 7.74
	W10185989		Wiring Diagram		Appelez-nous	-
	W11777307		Quick Start Guide		Appelez-nous	-
	W11679946		Owners Manual		Appelez-nous	-
