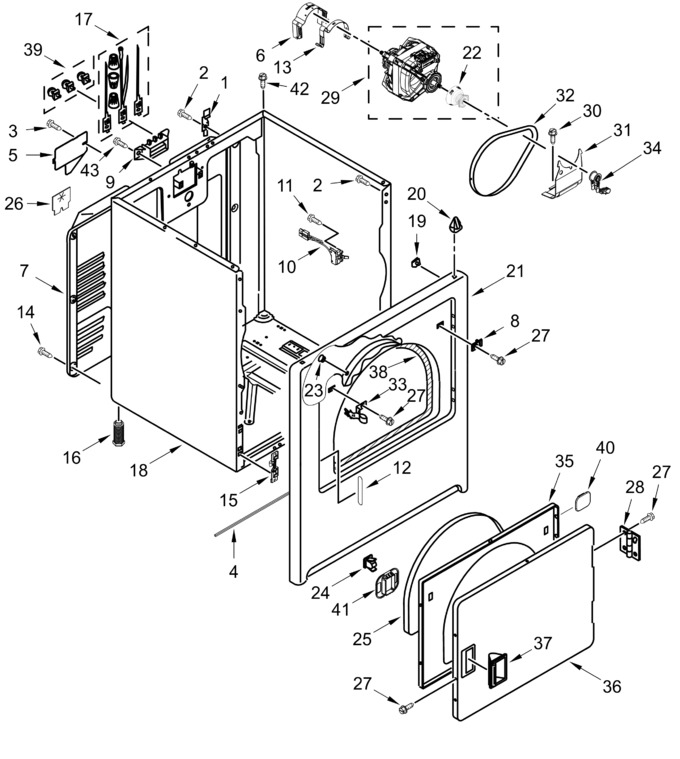

Bulkhead Parts
Cabinet Parts
Optional Parts (not Included)
Top And Console Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8066217 | Hinge, Top (Replaces: 8066217) |
|
$ 7.82 | |||||
| 2 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 3 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 4 | W11596046 | Seal, Spill Guard (Replaces: W10841728) |
|
Immediately | $ 51.51 | ||||
| 5 | W11298298 | Cover, Terminal Block (Replaces: W11219688) |
|
$ 89.44 | |||||
| 6 | W11811748 | Clamp, Motor (with Shield) (Replaces: W11712563) |
|
- | |||||
| 7 | W11626083 | Panel, Rear (Replaces: W11598681) |
|
$ 129.73 | |||||
| 8 | W11684591 | Plug, Strike (Replaces: W10567345) |
|
Immediately | $ 7.74 | ||||
| 9 | WP3397659 | Terminal Block (Replaces: 3397659) |
|
$ 23.02 | |||||
| 10 | WPW10237959 | Switch, Door (Replaces: W10237959) |
|
Immediately | $ 55.64 | ||||
| 11 | WP3395530 | Screw (Replaces: 697773) |
|
$ 7.70 | |||||
| 12 | W11481394 | Cover, Hinge Hole (white) (Replaces: W11308618) |
|
$ 21.32 | |||||
| 13 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 25.68 | ||||
| 14 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 7.82 | |||||
| 15 | W10854425 | Clip, Front Panel (Replaces: W10775448) |
|
Immediately | $ 15.56 | ||||
| 16 | W11025920 | Foot, Dryer (Replaces: W10779369) |
|
Immediately | $ 23.51 | ||||
| 17 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 100.99 | ||||
| 18 | 8533643 | Cabinet (white) (Replaces: 8530603) |
|
$ 399.26 | |||||
| 19 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 11.39 | ||||
| 20 | WP8066092 | Lock, Front Top (Replaces: 8066092) |
|
Immediately | $ 19.50 | ||||
| 21 | W10806345 | Panel, Front (white) (Replaces: W10664697) |
|
$ 232.74 | |||||
| 22 | WP8066184 | Pulley, Motor (Replaces: 8066184) |
|
Immediately | $ 51.02 | ||||
| 23 | 279220 | Clip, Felt Pad (Replaces: 685203) |
|
$ 20.65 | |||||
| 24 | W11429587 | Assembly, Door Catch (Replaces: W11224630) |
|
Immediately | $ 25.29 | ||||
| 25 | W10861521 | Seal, Door (Replaces: W10730752) |
|
Immediately | $ 58.69 | ||||
| 26 | W11627518 | Pad, Power Cord (Replaces: W11532648) |
|
$ 21.46 | |||||
| 27 | WP488627 | Screw (Replaces: 342055) |
|
$ 7.57 | |||||
| 28 | WPW10362431 | Hinge And Pin Assembly (white) (Replaces: W10362431) |
|
Immediately | $ 7.91 | ||||
| 29 | 279827 | Assembly, Motor (Replaces: W10396029) |
|
Immediately | $ 191.95 | ||||
| 30 | 3400500 | Bolt |
|
Immediately | $ 13.37 | ||||
| 31 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 121.57 | ||||
| 32 | 341241 | Belt, Drive (Replaces: W10131364) |
|
Immediately | $ 18.15 | ||||
| 33 | W11429589 | Strike, Door (Replaces: W11224633) |
|
Immediately | $ 20.99 | ||||
| 34 | WP691366 | Idler Assembly (Replaces: 691366) |
|
Immediately | $ 22.47 | ||||
| 35 | WPW10463967 | Door, Inner (white) (Replaces: W10463967) |
|
$ 219.71 | |||||
| 36 | W10861224 | Door, Front (white) (Replaces: W10714510) |
|
$ 256.21 | |||||
| 37 | W10861225 | Door Handle (white) (Replaces: W10714516) |
|
Immediately | $ 54.26 | ||||
| 38 | W11035878 | Assembly, Seal And Bearing (Replaces: W10803476) |
|
Immediately | $ 78.78 | ||||
| 39 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 47.37 | ||||
| 40 | W11173656 | Cover, Door Catch (Replaces: W10529198) |
|
$ 7.81 | |||||
| 41 | WPW10529197 | Bezel, Door Catch (Replaces: W10529197) |
|
Immediately | $ 25.46 | ||||
| 42 | WP681414 | Screw (Replaces: 3390663) |
|
Immediately | $ 7.85 | ||||
| 43 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.87 |
