View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

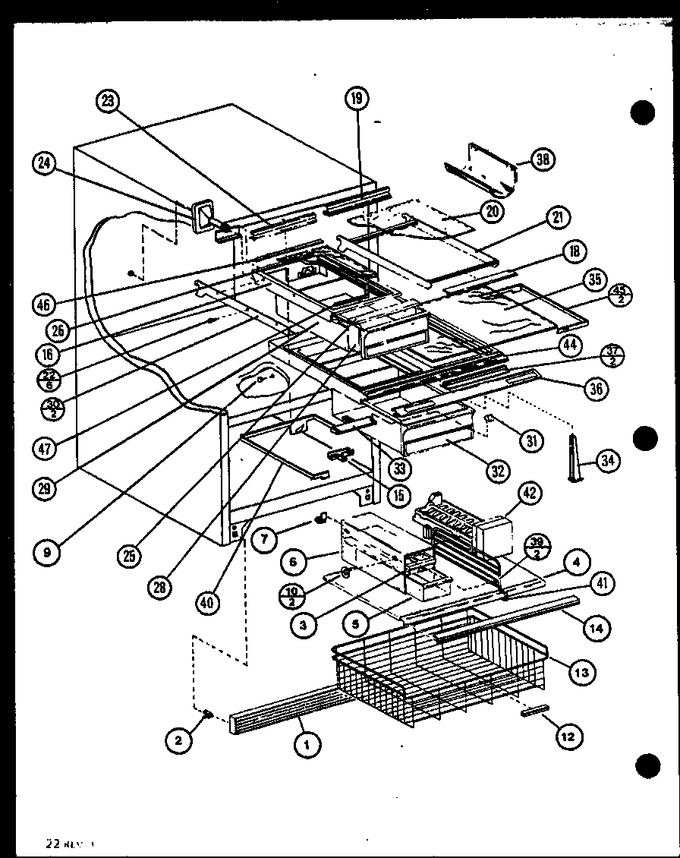

01 - Compressor Compartment Parts
02 - Fz Door Parts
03 - Page 10
04 - Page 11
05 - Page 12
06 - Rear Components
07 - Ref Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7520506 | Grille-toe K |
|
- | |||||
| 1 | D7520507 | Grille, Toe, Gold |
|
- | |||||
| 1 | D7520508 | Grille-toe L |
|
- | |||||
| 2 | M0117301 | Clip, Grille |
|
- | |||||
| 3 | WP841180A | Tray, Ice (Replaces: D7725401) |
|
Immediately | $ 47.84 | ||||
| 4 | D7681202 | Shelf |
|
- | |||||
| 5 | D7620009 | Ice Bin |
|
- | |||||
| 6 | D7620106 | Rack, Ice Service |
|
- | |||||
| 7 | B5720301 | Clip |
|
- | |||||
| 9 | WP67001130 | Plug, Button (wht) (Replaces: M0310701) |
|
Immediately | $ 5.98 | ||||
| 10 | M0270508 | Washer |
|
- | |||||
| 12 | B0571806 | Handle Basket |
|
- | |||||
| 13 | D7677402 | Basket |
|
- | |||||
| 14 | C8832508 | Trim Shelf |
|
- | |||||
| 15 | D7859401 | Slide-mk Control |
|
- | |||||
| 16 | D7853301 | Frame, M.k |
|
- | |||||
| 18 | 10049909 | Trim, Shelf |
|
- | |||||
| 19 | C8913601 | Trim, Shelf |
|
- | |||||
| 20 | D7421277 | Glass Shelf |
|
- | |||||
| 21 | D7871002 | Frame, Cantilever |
|
- | |||||
| 22 | M0230028 | Screw, No.8-32 X 5/16 Pph (blk) |
|
- | |||||
| 23 | C8990401 | Trim, Rear Shelf |
|
- | |||||
| 24 | D7859302 | Grommet M.k. |
|
- | |||||
| 25 | 10049912 | Trim, Shelf |
|
- | |||||
| 26 | D7421250 | Glass Shelf M.k |
|
- | |||||
| 28 | D7698314 | Meat Pan |
|
- | |||||
| 29 | D7698105 | Sleeve, Meat Keeper |
|
- | |||||
| 30 | D7862903 | Blank Side Rail |
|
- | |||||
| 30 | D7862904 | Blank Side Rail |
|
- | |||||
| 31 | 10038401 | Knob, Crisper Control |
|
- | |||||
| 32 | D7581024 | Crisper Pan |
|
- | |||||
| 33 | D7860601 | Slide, Crisper Control |
|
- | |||||
| 34 | D7602202 | Crisper Support Post |
|
- | |||||
| 35 | D7421258 | Glass Crisper Top Gg |
|
- | |||||
| 36 | D7616636 | Trim |
|
- | |||||
| 37 | D7718402 | Seal Crisper |
|
- | |||||
| 38 | D7547604 | Bottle Rack |
|
- | |||||
| 39 | M0219559 | Screw |
|
- | |||||
| 40 | D7859503 | Band M.k. Control |
|
- | |||||
| 41 | D7815401 | Divider, Frz Shelf |
|
- | |||||
| 42 | Y00000000 | See Note Ice Maker |
|
- | |||||
| 44 | D7856501 | Frame |
|
- | |||||
| 45 | D7859603 | Band Crisper Control |
|
- | |||||
| 46 | 10043101 | Ext. Rear Glass |
|
- | |||||
| 47 | A3263905 | Gasket-per Ft |
|
- |
