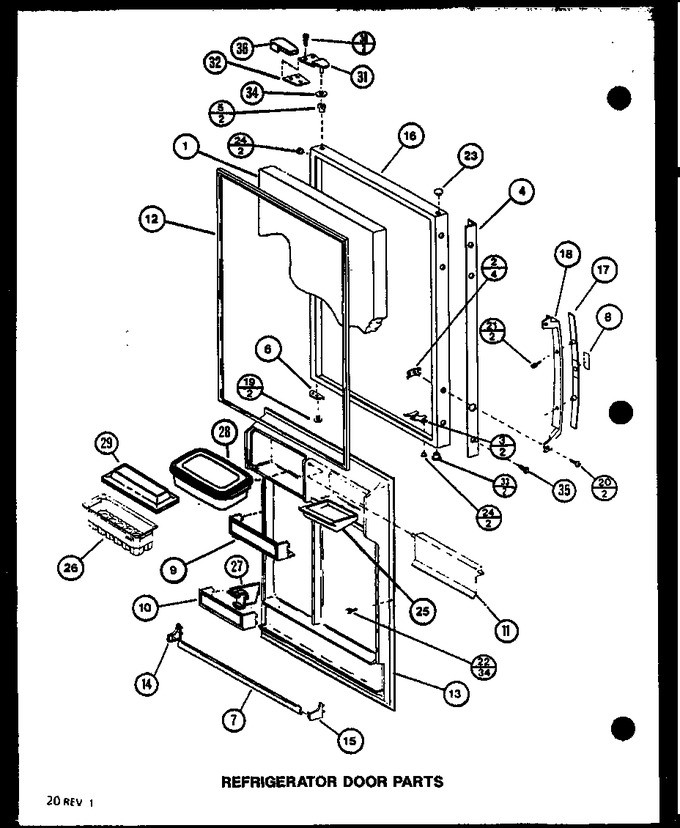

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B5683516		Insulation, Bat		Appelez-nous	-
2	B8361401		Nut		Appelez-nous	-
3	B8363501		Nut		Appelez-nous	-
4	D7739606		Trim, L		Appelez-nous	-
4	D7739604		Trim, White		Appelez-nous	-
4	D7739605		Trim G		Appelez-nous	-
5	C3652901		Bushing, Hinge Pin		Appelez-nous	-
6	C8894802		Door Stop		Appelez-nous	-
7	C8907222		Retainer, Pkg		Appelez-nous	-
8	C8945003		Nameplate		Appelez-nous	-
9	D7565406		Door Shelf		Appelez-nous	-
10	D7574506		Retainer Cant Door		Appelez-nous	-
11	D7805702		Dairy Door		Appelez-nous	-
12	D7605116		Gasket, Door		Appelez-nous	-
13	D7811901		Inner Door, Ref		Appelez-nous	-
14	D7681803		Cap, Pkg Retainer End		Appelez-nous	-
15	D7681804		Cap, Pkg Retainer End		Appelez-nous	-
16	D7728348		Use D7728348wq		Appelez-nous	-
16	D7728349		Ref Door, Gold		Appelez-nous	-
16	D7728350		Ref Door, Almond		Appelez-nous	-
17	D7694704		Insert, Handle		Appelez-nous	-
17	D7694705		Insert Handle		Appelez-nous	-
17	D7694706		Insert, L Handle		Appelez-nous	-
18	D7694803		Handle				$ 125.50
19	M0203458		Screw		Appelez-nous	-
20	M0203858		Screw		Appelez-nous	-
21	WP8281236		Screw (counter Sunk)   (Replaces: M0215704)				$ 8.16
22	M0219717		Screw		Appelez-nous	-
23	M0310606		Plug		Appelez-nous	-
23	M0310608		Plug		Appelez-nous	-
23	M0310601		Plug		Appelez-nous	-
24	M0203931		Screw, Tf		Appelez-nous	-
24	M0311301		Plug Button		Appelez-nous	-
24	M0311302		Plug Button		Appelez-nous	-
24	M0311303		Plug Button		Appelez-nous	-
25	D3799802		Butter Tray		Appelez-nous	-
26	D7695603		Egg Bucket A-v		Appelez-nous	-
27	D7806102		Snugger Door Shelf		Appelez-nous	-
28	D7806404		Container Sec. Ser.		Appelez-nous	-
29	D7805902		Cover, Egg Bucket		Appelez-nous	-
30	R9800670		Kit, Screw   (Replaces: M0257244)				$ 10.58
31	B5744301		Hinge		Appelez-nous	-
32	B8389003		Shim, Top Hinge, .016		Appelez-nous	-
32	B8389001		Shim, Top Hinge		Appelez-nous	-
32	B8389002		Shim Top Hinge		Appelez-nous	-
33	C8852202		Bearing, Hinge		Appelez-nous	-
34	M0274049		Washer		Appelez-nous	-
35	M0210418		Screw		Appelez-nous	-
36	D7872103		Cover Hinge L		Appelez-nous	-
36	D7872104		Cover Hinge		Appelez-nous	-
36	D7872105		Cover Hinge L		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
