SELECT A DIAGRAM

02 - Cabinet


03 - Refrigerator Liner


04 - Freezer Liner


05 - Refrigerator Door


06 - Freezer Door


07 - Unit


08 - Air Flow


09 - Control , Lit/optional

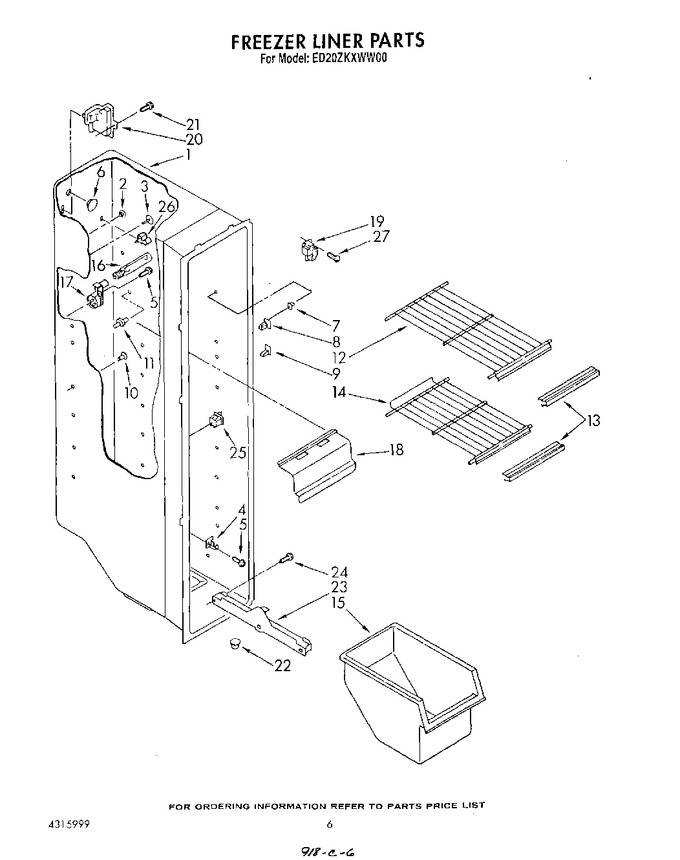

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	944795		Hole Plug		Appelez-nous	-
3	WP941839		Hole, Plug   (Replaces: 941839)				$ 7.65
4	1108436		Evaporator, Support		Appelez-nous	-
5	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
6	655411		Hole Plug		Appelez-nous	-
7	946355		Support, Stud (16)		Appelez-nous	-
8	946356		Stud (5)		Appelez-nous	-
9	1106982		Stud (5)		Appelez-nous	-
10	1110779		Grommet (14)		Appelez-nous	-
11	4388538		Stud (4)   (Replaces: 1110718)			Immediately	$ 31.34
12	1106979		Shelf		Appelez-nous	-
13	1110782		Trim Shelf		Appelez-nous	-
14	1106980		Shelf (2)		Appelez-nous	-
15	2148096		Freezer Bin		Appelez-nous	-
16	WP548049		Light Bulb   (Replaces: 548049)				$ 86.35
17	1108630		Socket Assembly		Appelez-nous	-
18	1108445		Lens, Light		Appelez-nous	-
19	942842		Terminal Block		Appelez-nous	-
20	1129915		Cover, Wiring		Appelez-nous	-
21	WP488729		Screw   (Replaces: 489176)			Immediately	$ 7.79
22	942768		Fitting, Drain		Appelez-nous	-
23	1115383		Slide, Freezer Bin (2)		Appelez-nous	-
24	487979		Screw (4)		Appelez-nous	-
25	W11384469		Rocker Arm Switch   (Replaces: 549702)			Immediately	$ 37.23
26	2215823		Clip, Air Duct (2)   (Replaces: 1114603)				$ 10.42
27	WP681414		Screw (repair)   (Replaces: 489254)			Immediately	$ 7.85
27	WP489478		Screw   (Replaces: 489242)				$ 7.75

    View Diagram in Separate Window       Print Part List
