02 - Cabinet


03 - Refrigerator Liner


04 - Freezer Liner


05 - Refrigerator Door


06 - Freezer Door


07 - Unit


08 - Air Flow


09 - Control , Lit/optional

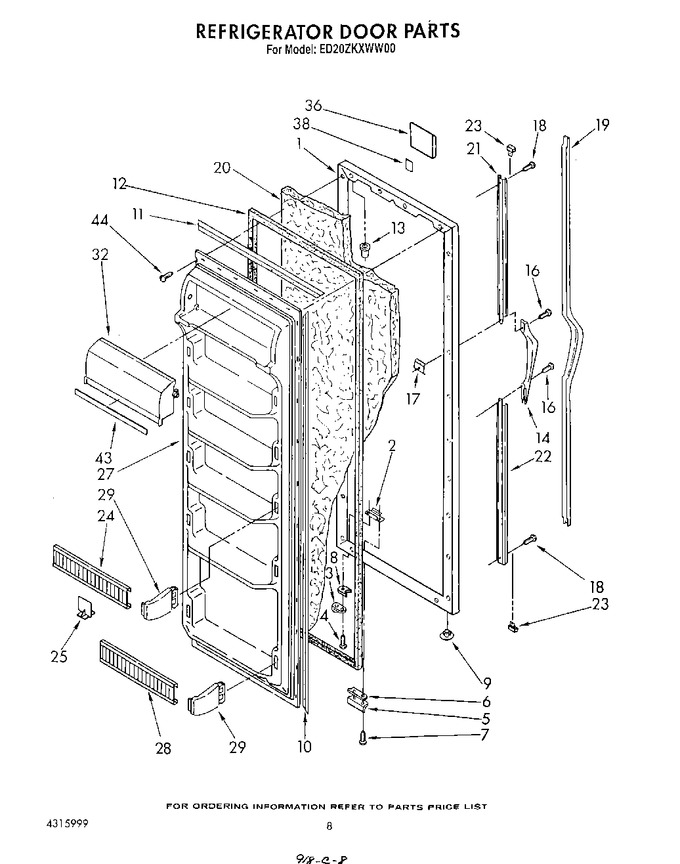

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1106923		Refrigerator Door (white)		Appelez-nous	-
1	1108464		Refrigerator Door (golden Harvest)		Appelez-nous	-
1	1108465		Refrigerator Door (almond) (also Order Item 20)		Appelez-nous	-
2	988402		Tap Plate		Appelez-nous	-
3	4318165		Door Closer, Upper Cam   (Replaces: 1115905)			Immediately	$ 27.36
4	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 7.86
5	1115906		Bracket, Door Stop		Appelez-nous	-
6	988421		Shim		Appelez-nous	-
7	488549		Screw, 8 X 5/8		Appelez-nous	-
8	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.58
9	534927		Hole Plug		Appelez-nous	-
10	1117766		Gasket Retainer, Side (2)				$ 36.55
11	1118301		Gasket Retainer, Top & Bottom		Appelez-nous	-
12	2188404A		Door Gasket, Magnetic   (Replaces: 2148270)				$ 269.26
13	509929		Cap, Hinge Sleeve		Appelez-nous	-
14	987009		Handle		Appelez-nous	-
16	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 7.79
17	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.50
18	489075		Screw, 10-32 X 5/8		Appelez-nous	-
19	2148102		Insert, Handle (white)		Appelez-nous	-
19	1108722		Insert, Handle (golden Harvest)		Appelez-nous	-
19	2148103		Insert, Handle (almond)		Appelez-nous	-
20	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
21	987008		Insert Retainer (top)		Appelez-nous	-
22	987010		Insert Retainer (bottom)		Appelez-nous	-
23	987006		End Cap		Appelez-nous	-
24	2148180		Trim, Door Shelf (2)		Appelez-nous	-
25	1114380		Divider		Appelez-nous	-
27	1124961		Interior, Door Panel		Appelez-nous	-
28	2148181		Trim, Door Shelf (2)		Appelez-nous	-
29	4388286		Retainer, Door Trim (8)   (Replaces: 1124877)				$ 15.33
32	2148218		Door, Compartment		Appelez-nous	-
36	945114		Nameplate		Appelez-nous	-
38	991259		Tape Strip		Appelez-nous	-
43	1110717		Trim, Door Compartment		Appelez-nous	-
44	WP489069		Screw, (30) 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.86
