View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - 8 Cube Compact Ice Maker

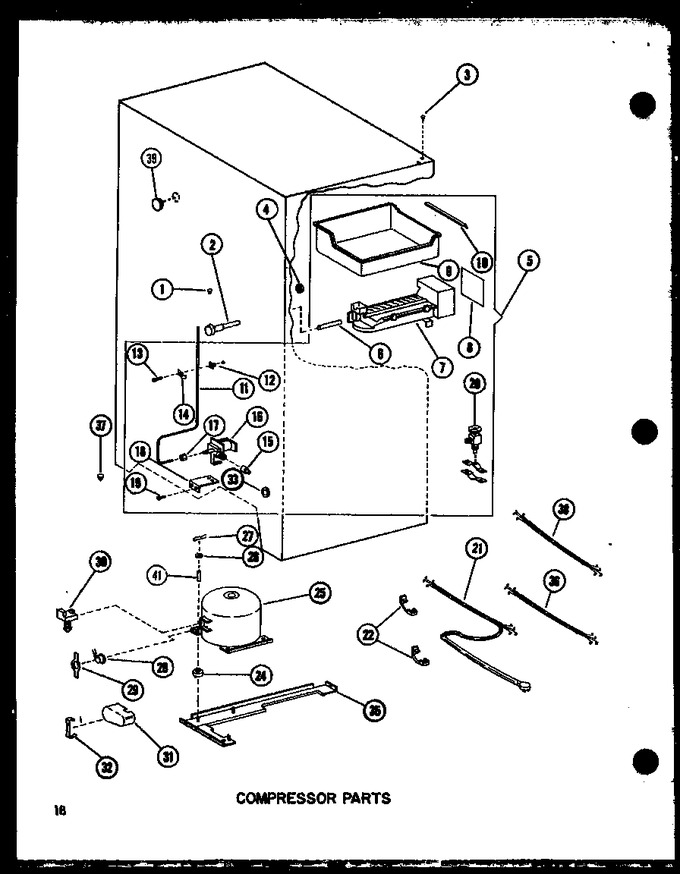

02 - Compressor Parts
03 - Condenser Parts
04 - Evap Parts
05 - Fz Door Parts
06 - Interior Parts
07 - Interior Parts
08 - Ref Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | B8318805 | Fill Tube Assy |
|
- | |||||
| 3 | M0310716 | Plug |
|
- | |||||
| 3 | M0310718 | Plug |
|
- | |||||
| 3 | WP67001130 | Plug, Button (wht) (Replaces: M0310701) |
|
Immediately | $ 5.98 | ||||
| 3 | WP67001130 | Plug (Replaces: M0310709) |
|
Immediately | $ 5.98 | ||||
| 3 | M0310714 | Plug |
|
- | |||||
| 3 | M0310721 | Plug |
|
- | |||||
| 3 | M0310720 | Plug |
|
- | |||||
| 3 | M0310722 | Plug |
|
- | |||||
| 3 | M0310723 | Plug |
|
- | |||||
| 3 | M0310724 | Plug |
|
- | |||||
| 6 | A3127402 | Ext-fill Tube |
|
- | |||||
| 7 | D7036805 | Ic2-(ice Maker) |
|
- | |||||
| 8 | B5662401 | Insert-im |
|
- | |||||
| 9 | WP67001255 | Pan, Ice (Replaces: D7053901) |
|
$ 203.08 | |||||
| 10 | C8831601 | Trim-ice Container |
|
- | |||||
| 11 | B5705310 | Tubing Plastic K |
|
- | |||||
| 12 | M0580007 | Grommet, Screw |
|
- | |||||
| 13 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 7.82 | ||||
| 14 | M0102804 | Clamp |
|
- | |||||
| 15 | A3084501 | Coupling, Solenoid Valve And H |
|
- | |||||
| 16 | 4318047 | Water Valve Kit (Replaces: D7036803) |
|
Immediately | $ 74.09 | ||||
| 17 | WP627018 | Nut, Sleeve (Replaces: M0753001) |
|
$ 10.97 | |||||
| 18 | B5630701 | Bracket |
|
- | |||||
| 19 | M0250531 | Screw |
|
- | |||||
| 19 | M0251017 | Screw |
|
- | |||||
| 20 | A3034801 | Saddle Valve |
|
- | |||||
| 21 | R0157154 | Power Cord |
|
- | |||||
| 22 | A0319703 | Strain Relief K |
|
- | |||||
| 24 | A4002702 | Grommet K |
|
- | |||||
| 25 | D7485551 | Compressor-ae1410a-1/4 |
|
- | |||||
| 26 | M0590101 | Washer, Nylon K |
|
- | |||||
| 27 | A3140801 | Clip K |
|
- | |||||
| 28 | C3689108 | Overload |
|
- | |||||
| 29 | B8329601 | Spring, Overload |
|
- | |||||
| 30 | C3689203 | Relay |
|
- | |||||
| 31 | C8867301 | Cover |
|
- | |||||
| 32 | B8329701 | Strap Bale |
|
- | |||||
| 33 | A3080002 | Plug, Button (wht) |
|
- | |||||
| 35 | C3688609 | Weld Comp Supt Pntd |
|
- | |||||
| 36 | B5730802 | Wiring Harness |
|
- | |||||
| 37 | A1004301 | Plug Button |
|
- | |||||
| 38 | D7469301 | Wiring Harness |
|
- | |||||
| 39 | A3080002 | Plug, Button (wht) |
|
- | |||||
| 39 | A3080001 | Plug, Button (blk) |
|
- | |||||
| 41 | A3072001 | Sleeve K |
|
- | |||||
| NI | D7451301 | Wiring Harness |
|
- |
