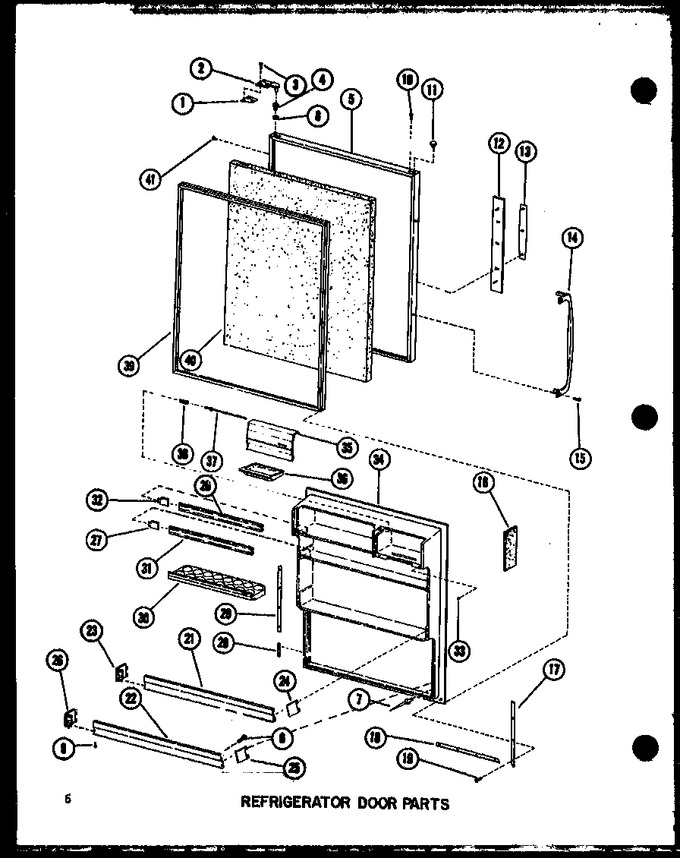

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A3270301		Shim, Top Hinge		Appelez-nous	-
1	A3270302		Shim-top Hinge K		Appelez-nous	-
1	A3270303		Shim Kit		Appelez-nous	-
2	B5744301		Hinge		Appelez-nous	-
3	R9800670		Kit, Screw   (Replaces: M0257244)				$ 10.58
4	C3652901		Bushing, Hinge Pin		Appelez-nous	-
5	C8845202		Door Ref-c-t-bc20e		Appelez-nous	-
5	C8845205		Outer Door Shell, Ref, Almond		Appelez-nous	-
5	C8845204		Outer Door Shell, Ref ,gold		Appelez-nous	-
5	C8845203		Outer Door Shell, Ref, Avocado		Appelez-nous	-
5	C8845201		Outer Door Shell, Ref, White		Appelez-nous	-
6	M0211516		Screw A K		Appelez-nous	-
7	B5642907		Pop Rivet-alm		Appelez-nous	-
8	M0500902		O Ring		Appelez-nous	-
9	M0010202		Rivet A		Appelez-nous	-
10	M0205631		Machine Screw		Appelez-nous	-
11	M0310607		Plug		Appelez-nous	-
11	M0310609		Plug		Appelez-nous	-
11	M0310608		Plug		Appelez-nous	-
11	M0310601		Plug		Appelez-nous	-
11	M0310606		Plug		Appelez-nous	-
12	D7415001		Pad, Handle		Appelez-nous	-
13	B8301601		Nampelate, Escutcheon		Appelez-nous	-
14	D7159501		Handle		Appelez-nous	-
15	M0207431		Screw		Appelez-nous	-
16	B0523563		Insulation Ft. K		Appelez-nous	-
17	D3928111		Retainer Gasket		Appelez-nous	-
18	D3928102		Retainer Gasket		Appelez-nous	-
19	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
20	B8302604		Retainer		Appelez-nous	-
21	D7415707		Retainer		Appelez-nous	-
22	D7415708		Retainer A		Appelez-nous	-
23	C3680907		Support		Appelez-nous	-
24	C3680908		Support		Appelez-nous	-
25	B5615107		End Cap A		Appelez-nous	-
26	B5615108		End Cap		Appelez-nous	-
27	C3693303		End Cap		Appelez-nous	-
28	B5693401		Support		Appelez-nous	-
29	D3928112		Retainer Gasket		Appelez-nous	-
30	D7429603		Egg Tray		Appelez-nous	-
31	B8302605		Retainer		Appelez-nous	-
32	B0530006		Support K		Appelez-nous	-
33	A3059003		Bumper		Appelez-nous	-
34	D7171703		Inner Dr Panel		Appelez-nous	-
35	C8833503		Butter Door		Appelez-nous	-
36	D3799801		Butter Tray		Appelez-nous	-
37	A3056207		Hinge Rod K		Appelez-nous	-
38	A3067001		Spring K		Appelez-nous	-
39	D3928210		Gasket		Appelez-nous	-
40	B5689701		Insulation		Appelez-nous	-
41	M0310717		Plug		Appelez-nous	-
41	M0310725		Plug		Appelez-nous	-
41	WP67001130		Plug   (Replaces: M0310705)			Immediately	$ 5.98
41	M0310715		Plug		Appelez-nous	-
41	M0310719		Plug		Appelez-nous	-
