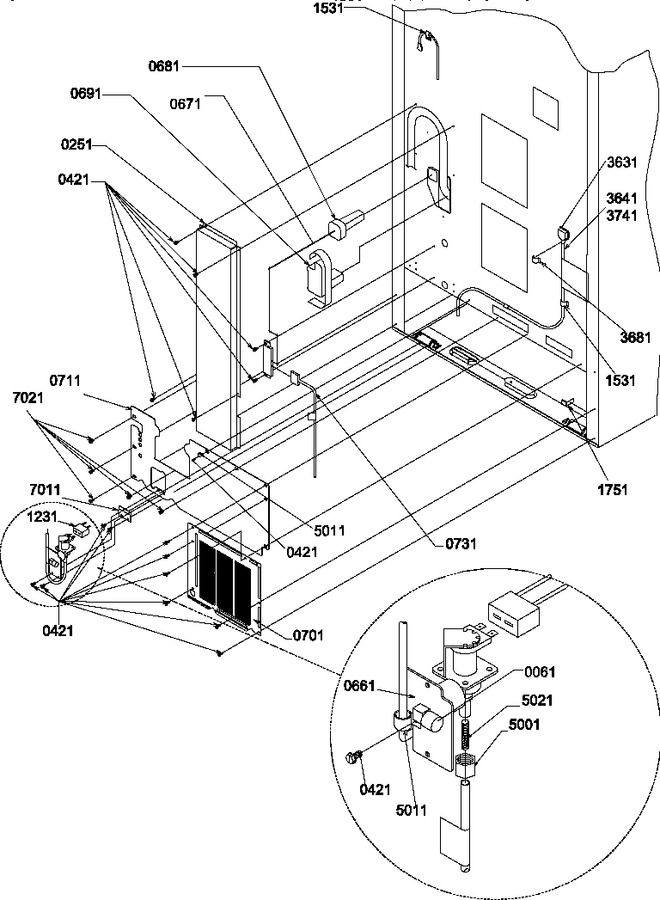

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
251	10502303		Cover, Ht Exch		Appelez-nous	-
421	M0227217		Screw, Sm		Appelez-nous	-
661	W10833899		Kit, Water Valve   (Replaces: 10524606)			Immediately	$ 253.55
671	10614304		Harness, Control		Appelez-nous	-
681	10699301		Grommet		Appelez-nous	-
691	10428001		Plug, Ht Exch V		Appelez-nous	-
701	12039806		Back, Mach Comp		Appelez-nous	-
711	12041828		Assy, Mc Back		Appelez-nous	-
731	10916502		Cord, Power		Appelez-nous	-
1231	10525901		Harness, Water Valve				$ 8.02
1531	WPM0104106		Clip   (Replaces: M0104106)				$ 7.78
1751	B5720303		Clip		Appelez-nous	-
3631	W11176463		Elbow, Fill Tube   (Replaces: 10463201)			Immediately	$ 119.86
3641	W10823511		Tube, Plastic   (Replaces: B5705323)			Immediately	$ 32.41
3681	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.05
3741	WPA3223101		Insert, Plastic Tube   (Replaces: A3223101)			Immediately	$ 7.82
5001	WP627018		Nut, Sleeve   (Replaces: M0753001)				$ 11.51
5011	W10833902		Clamp, Tube   (Replaces: M0108105)				$ 11.54
5021	A1055101		Spring, Antikink		Appelez-nous	-
7011	12047201		Plate-water Valve		Appelez-nous	-
7021	M0219704		Screw		Appelez-nous	-
