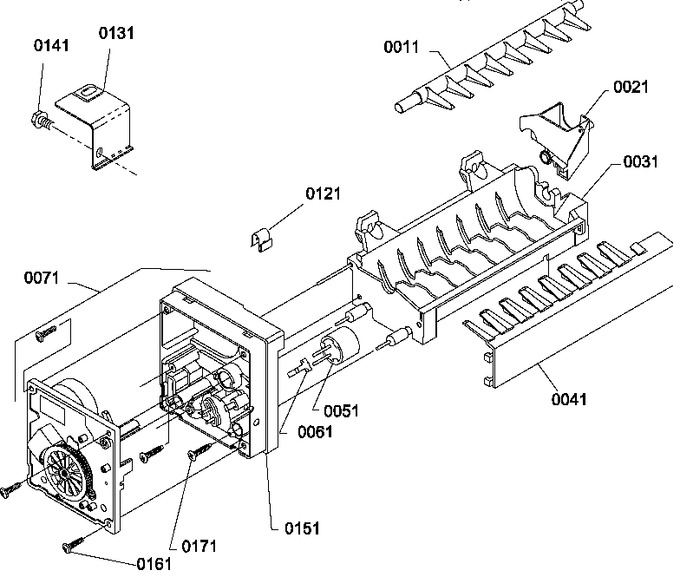

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | WP627843 | Ejector (Replaces: R0183119) |
|
$ 83.60 | |||||
| 21 | WP628356 | Cup, Water Fill/bearing (Replaces: R0156839) |
|
$ 51.19 | |||||
| 31 | D7824706Q | Assy, Mold & Heater (Replaces: R0156669) |
|
Immediately | $ 167.35 | ||||
| 41 | WP2182124 | Stripper, Ice (Replaces: R0183120) |
|
$ 86.05 | |||||
| 51 | WP627985 | N/a See Notes-thermostat (Replaces: R0161060) |
|
$ 109.18 | |||||
| 61 | WP2315522 | Retainer (Replaces: R0191094) |
|
$ 11.05 | |||||
| 62 | B5720301 | Clip |
|
- | |||||
| 71 | W10190935 | Module & Mtr Assy,120v/60hz (Replaces: R0167203) |
|
Immediately | $ 110.07 | ||||
| 72 | WPW10289690 | Cover, Ice Maker (Replaces: 10519801) |
|
Immediately | $ 8.40 | ||||
| 92 | WPD7813010 | Harness, Ice Maker Mod (Replaces: D7813004) |
|
Immediately | $ 73.97 | ||||
| 102 | WP67004028 | Arm, I.m. Shut-off (Replaces: 10884401) |
|
Immediately | $ 91.35 | ||||
| 121 | WP628379 | Clip, Thermal Fuse (Replaces: 10319801) |
|
$ 10.57 | |||||
| 122 | D7824706Q | Ice Maker (Replaces: D7824705) |
|
Immediately | $ 167.35 | ||||
| 131 | B8391802 | Bracket, I/m |
|
- | |||||
| 141 | 67006425 | Screw-sm No.8-1/2lg (Replaces: M0211017) |
|
Immediately | $ 6.95 | ||||
| 151 | WP2195914 | Support (Replaces: R0183121) |
|
$ 104.57 | |||||
| 152 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.00 | |||||
| 161 | R0186041 | Screw |
|
- | |||||
| 171 | R0186040 | Screw |
|
- | |||||
| 222 | 10526701 | Clamp, Wire |
|
- | |||||
| 242 | W10833899 | Kit, Water Valve (Replaces: 10524606) |
|
Immediately | $ 241.48 | ||||
| 252 | WP627018 | Nut, Sleeve (Replaces: M0753001) |
|
$ 10.97 | |||||
| 272 | A1055101 | Spring, Antikink |
|
- | |||||
| 282 | B5705325 | Tubing, Plastic |
|
- | |||||
| 312 | WPA3223101 | Insert, Plastic Tube (Replaces: A3223101) |
|
Immediately | $ 7.82 | ||||
| 342 | W11176463 | Elbow, Fill Tube (Replaces: 10463201) |
|
Immediately | $ 114.15 | ||||
| 352 | WPM0104106 | Clip,cord (Replaces: M0104101) |
|
$ 7.78 | |||||
| 422 | WP67001255 | Use 10476207 (Replaces: 10476201) |
|
$ 203.08 | |||||
| NI | 10834701 | Label, Im |
|
- | |||||
| NI | 10549601 | Label, Caution (ice Maker) |
|
- | |||||
| NI | A3036901 | Label Warranty |
|
- | |||||
| NI | M0108001 | Clamp, Tube |
|
- | |||||
| NI | 10244904 | Coupling |
|
$ 25.37 | |||||
| NI | M0311301 | Plug Button |
|
- | |||||
| NI | A3124301 | Plug |
|
- | |||||
| NI | 10527010 | Ic7 Bm Refrig Install/oper Ins |
|
- | |||||
| NI | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 11.05 |
