SELECT A DIAGRAM

01 - Cabinet Back


02 - Controls & Light Covers


03 - Door Assemblies


04 - Door Handles & Accessories


05 - Evap & Fz Control


06 - Ice Maker Assy & Parts


07 - Insulation & Roller Assy


08 - Light Switches & Drain Funnel


09 - Machine Compartment


10 - Shelving Assemblies

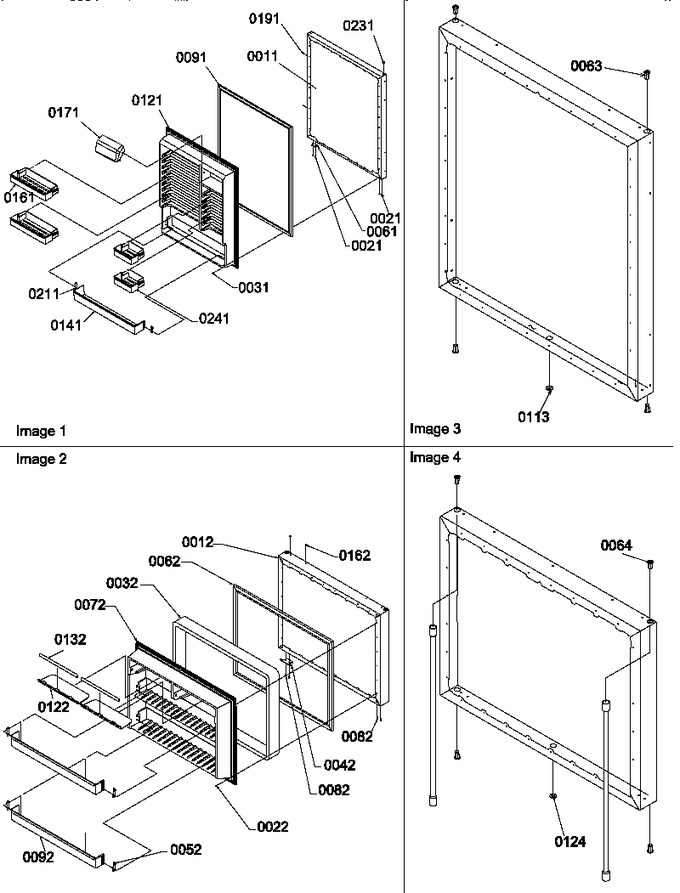

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10537207L		Ref Door Fm Assy		Appelez-nous	-
12	10537404L		Assy Frz Door Fm		Appelez-nous	-
21	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 7.76
22	M0219730		Screw				$ 7.65
31	M0219730		Screw				$ 7.65
32	876370		Insulation Bott (1= 1ft)   (Replaces: B0523588)				$ 231.56
42	10447107		Stop-l Door		Appelez-nous	-
52	10202001		Clip, Retainer		Appelez-nous	-
61	10447107		Stop-l Door		Appelez-nous	-
62	WP12550116Q		Gasket,fz Dr(white)   (Replaces: 10456838)			Immediately	$ 122.85
63	10961001		Bushing, Door (wht)		Appelez-nous	-
64	WP67004977		Bushing, Top   (Replaces: C8964401)				$ 7.81
72	12324801		Liner-fz Dr		Appelez-nous	-
82	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 7.76
91	WP12550115Q		Gasket,ref Dr(white)   (Replaces: 10456837)				$ 176.41
92	10419007		Retainer, Ref Door		Appelez-nous	-
113	M0310338		Plug Button Almond		Appelez-nous	-
121	10462502		Liner, Refr. Door		Appelez-nous	-
124	M0310338		Plug Button Almond		Appelez-nous	-
132	10304109		Extrs, Shelf		Appelez-nous	-
141	10183114		Retainer, Ref Door		Appelez-nous	-
161	10416906		Use 10416911		Appelez-nous	-
162	M0310730		Plug Button (almond)		Appelez-nous	-
171	10423416		Door,dairy		Appelez-nous	-
191	M0310730		Plug Button (almond)		Appelez-nous	-
211	10202001		Clip, Retainer		Appelez-nous	-
231	10686402		Plug, Button		Appelez-nous	-
241	10502906		Bucket, Ref Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
