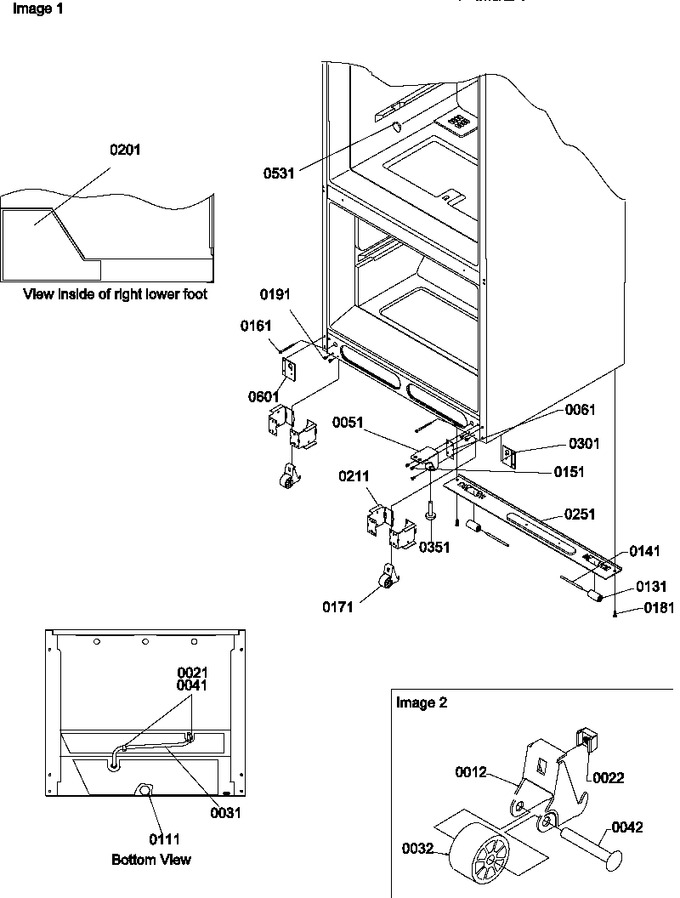

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | 10514801 | Bracket, Roller |
|
- | |||||
| 21 | M0227217 | Screw, Sm |
|
- | |||||
| 22 | M0286708 | Nut, Speed |
|
$ 45.57 | |||||
| 31 | 10513302 | Tube, Drain |
|
- | |||||
| 32 | WP10450603 | Roller (Replaces: 10450602) |
|
$ 7.88 | |||||
| 41 | M0102303 | Clamp |
|
- | |||||
| 42 | M1205302 | Rivet |
|
$ 5.85 | |||||
| 51 | 10585506 | Assy,hinge B-btm |
|
- | |||||
| 61 | 10447904 | Shim Hinge |
|
- | |||||
| 61 | 10447903 | Shim, Btm Hinge |
|
- | |||||
| 111 | A3076901 | Plug-button |
|
$ 5.70 | |||||
| 131 | 10450701 | Roller, Rear |
|
$ 28.91 | |||||
| 141 | 10450901 | Axle, Roller |
|
- | |||||
| 151 | WP67006715 | Screw (Replaces: M0233847) |
|
$ 7.19 | |||||
| 161 | M0204338 | Screw, Mach |
|
- | |||||
| 171 | 10476101 | Assy, Roller Brkt |
|
- | |||||
| 181 | M0260242 | Screw, Tf |
|
- | |||||
| 191 | W11573574 | Screw, Sm (Replaces: M0211031) |
|
Immediately | $ 14.02 | ||||
| 201 | 10663001 | Insul., R. Foot |
|
- | |||||
| 211 | 10427204 | Housing-roller |
|
- | |||||
| 251 | 10427112 | Brace |
|
- | |||||
| 301 | 10567205 | Plate-lw Hng Tap |
|
- | |||||
| 351 | W11177593 | Brake, Foot (Replaces: 10354001) |
|
$ 11.60 | |||||
| 531 | M0310342 | Plug, Button (wht) |
|
- | |||||
| 601 | 10567206 | Plate-lw Hng Tap |
|
- |
