Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 12443505W Handle,ref Dr(white) Appelez-nous -
12 10423129 Bin-utility Appelez-nous -
21 12443301 Trim, Upper Handle Appelez-nous -
22 10436404 Lid, Utility Special Order $ 60.85

31 12273513 Trim, Bot Mt Appelez-nous -
42 10436506 Tray, Egg Special Order $ 8.28

51 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

52 10310901 Tray, Butter Appelez-nous -
61 12248201 Screw, Hndl Cone Special Order $ 5.48

81 WP67005140 Handle, Frz Dr (white)   (Replaces: 12285404) In-Stock Immediately $ 155.76

91 12285501 Cap, Hndl Frz W Appelez-nous -
101 WP67001130 Plug, Handle Hole (wht)   (Replaces: 12246601) In-Stock Immediately $ 5.98

121 R9800670 Screw, Mounting   (Replaces: M0223230) Special Order $ 10.58

431 10474802 Grille, Toe (white) Special Order $ 44.88

441 10551502 Clip, Toe Grille Special Order $ 5.84


    View Diagram in Separate Window     Print Icon   Print Part List

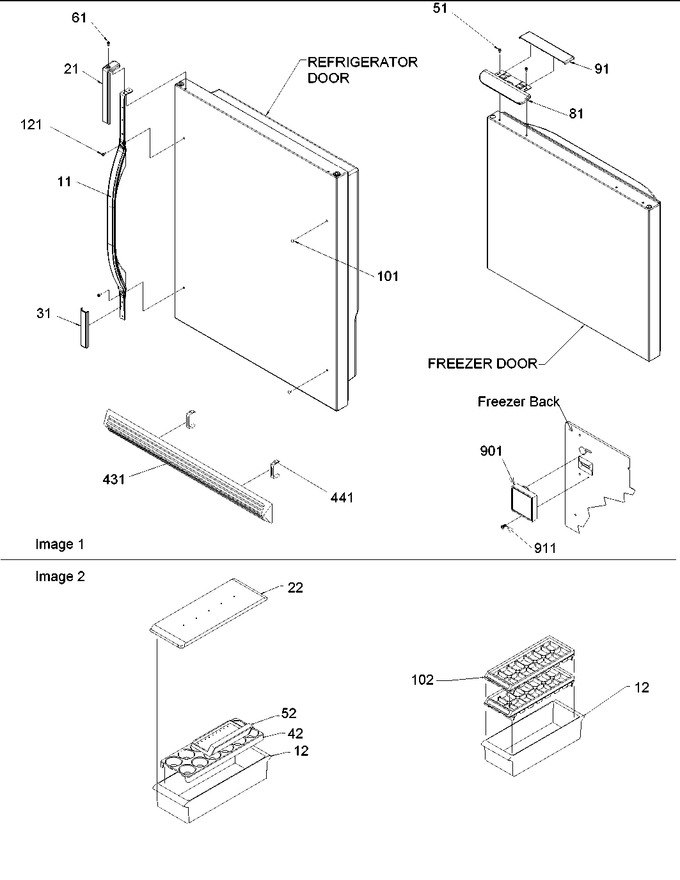

Diagram for BCI21VW (BOM: P1325017W W)
