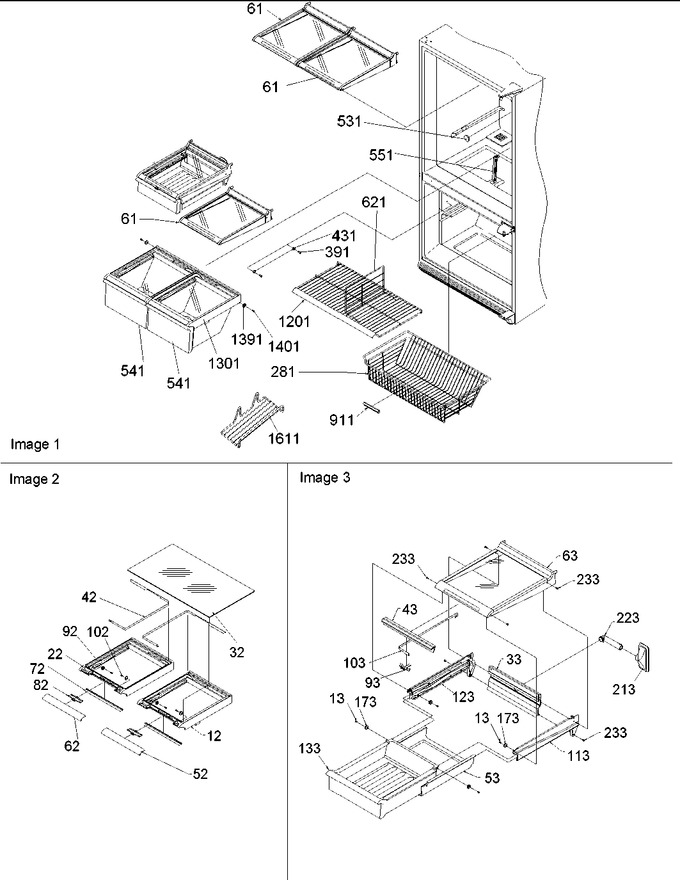

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | 10485901 | Frame, Crisper (r) |
|
- | |||||
| 22 | 10485902 | Frame, Crisper (l) |
|
- | |||||
| 32 | 10370035 | Glass, Shelf |
|
$ 101.12 | |||||
| 33 | 10934904 | Extr, Mk Rear |
|
- | |||||
| 42 | 10514002 | Band, Crisper Control |
|
- | |||||
| 43 | 10920303 | Extrusion, Mk Frt |
|
- | |||||
| 52 | 10530318 | Trim-crsp Front |
|
- | |||||
| 61 | 10895709 | Shelf, Stationary |
|
- | |||||
| 62 | 10530319 | Trim- Crsp Front |
|
- | |||||
| 63 | 10895712 | Shelf, Stationary |
|
- | |||||
| 72 | 10530204 | Seal, Crisper |
|
$ 39.10 | |||||
| 82 | 10797501 | Slide, Crisper |
|
- | |||||
| 113 | 10880202 | Glide, Mk R |
|
$ 21.98 | |||||
| 123 | 10897102 | Glide, L. Mk |
|
$ 68.61 | |||||
| 133 | 10417013 | Pan,meatkeeper |
|
- | |||||
| 233 | WPW10348409 | Screw, Mounting (Replaces: M0211533) |
|
Immediately | $ 7.76 | ||||
| 281 | 12433501 | Basket, Freezer |
|
- | |||||
| 531 | M0310343 | Plug, Button (wht) |
|
$ 10.67 | |||||
| 541 | 10432008 | Pan,crisper |
|
- | |||||
| 551 | 10461901 | Post, Crisper Support |
|
Immediately | $ 25.85 | ||||
| 911 | 10508506 | Handle, Basket/shelf |
|
- | |||||
| 1201 | 12459401 | Shelf, Frz Wire |
|
- | |||||
| 1301 | 12431807Q | Assy, Crisper |
|
- |
