SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Air Flow


06 - Motor And Ice Container

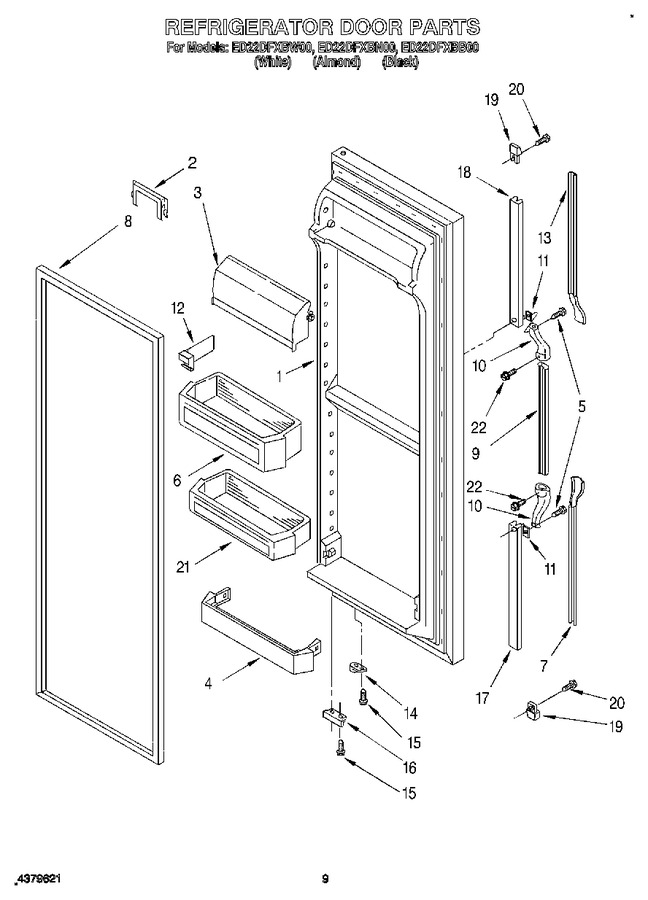

07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Icemaker


12 - Control, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2157627		Refrigerator Door (includes Item No.8) (white)		Appelez-nous	-
1	2177120		Refrigerator Door (includes Item No.8) (almond)		Appelez-nous	-
1	2177123		Refrigerator Door (includes Item No.8) (black)		Appelez-nous	-
2	2163566		Retainer, Bottle		Appelez-nous	-
3	WP2256101		Door, Compartment   (Replaces: 2177105)			Immediately	$ 89.42
4	WP2177962K		Trivet, Shelf   (Replaces: 2171163)				$ 85.14
5	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
6	2162889		Shelf Bin (2)		Appelez-nous	-
7	1119363		Insert, Handle (almond)		Appelez-nous	-
7	1118435		Insert, Handle (black)		Appelez-nous	-
7	1119361		Insert, Handle (white)		Appelez-nous	-
8	2159073		Door Gasket, Magnetic (service) (mist Beige)				$ 333.19
8	2159081		Door Gasket, Magnetic (service) (black)				$ 335.58
9	943079		Handle, Center (almond)		Appelez-nous	-
9	1124713		Handle, Center (white)		Appelez-nous	-
9	1118417		Handle, Center (black)		Appelez-nous	-
10	1119359		End Cap, Center Handle		Appelez-nous	-
11	935075		Shim		Appelez-nous	-
12	2152335		Divider, Bin		Appelez-nous	-
13	1119369		Insert, Handle (almond)		Appelez-nous	-
13	1118436		Insert, Handle (black)		Appelez-nous	-
13	1119367		Insert, Handle (white)		Appelez-nous	-
14	4318165		Door Closer, Upper Cam (natural)   (Replaces: 2155313)			Immediately	$ 29.74
14	4318165		Door Closer, Upper Cam (black)   (Replaces: 2155312)			Immediately	$ 29.74
15	WP999367		Screw   (Replaces: 489367)				$ 8.56
16	2155334		Bracket, Door Stop (black)		Appelez-nous	-
16	2155332		Bracket, Door Stop (chrome)		Appelez-nous	-
17	1119360		Retainer, Insert (bottom)		Appelez-nous	-
18	1119366		Retainer, Insert		Appelez-nous	-
19	2156220		End Cap (2)		Appelez-nous	-
20	489075		Screw		Appelez-nous	-
21	2162888		Shelf Bin		Appelez-nous	-
22	489022		Screw		Appelez-nous	-
