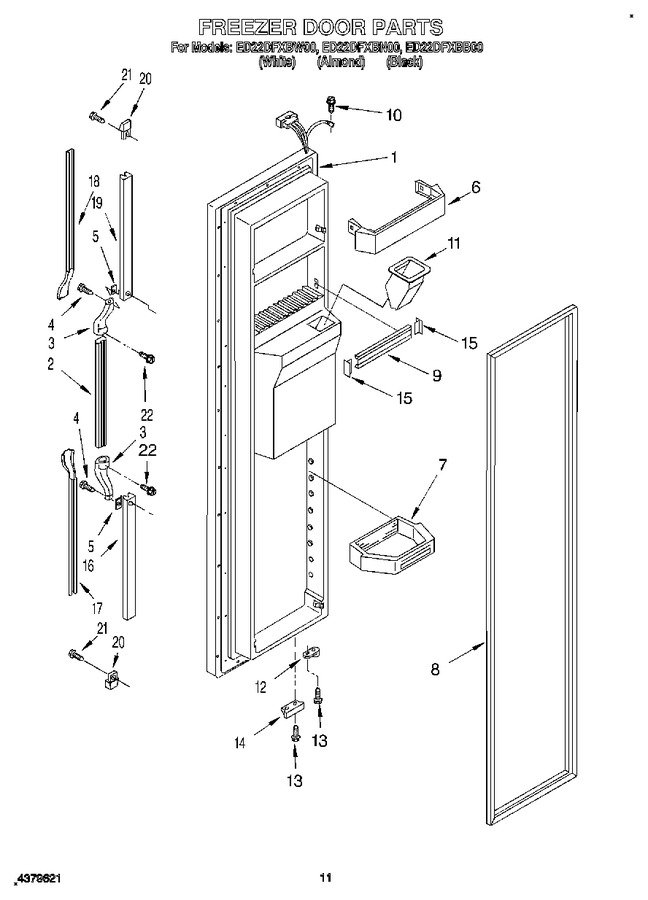

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2177122		Freezer Door (includes Item No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2177218		Freezer Door (includes Item No.8 And Dispenser Front Parts) (almond)		Appelez-nous	-
1	2177219		Freezer Door (includes Item No.8 And Dispenser Front Parts) (black)		Appelez-nous	-
2	943079		Handle, Center (almond)		Appelez-nous	-
2	1124713		Handle, Center (white)		Appelez-nous	-
2	1118417		Handle, Center (black)		Appelez-nous	-
3	1119359		End Cap (2)		Appelez-nous	-
4	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
5	935075		Shim, End Cap (2)		Appelez-nous	-
6	2156019		Trivet, Shelf		Appelez-nous	-
7	2162890		Shelf Bin (3)		Appelez-nous	-
8	2159072		Door Gasket, Magnetic (service) (mist Beige)				$ 308.19
8	2159080		Door Gasket, Magnetic (service) (black)				$ 310.39
9	WPW10307490		Trim, Door Shelf   (Replaces: 2171135)			Immediately	$ 23.11
10	WP488234		Screw   (Replaces: 489422)				$ 6.74
11	2156146		Chute, Ice		Appelez-nous	-
12	4318165		Door Closer, Upper Cam (natural)   (Replaces: 2155313)			Immediately	$ 27.36
12	4318165		Door Closer, Upper Cam (black)   (Replaces: 2155312)			Immediately	$ 27.36
13	WP999367		Screw   (Replaces: 489367)				$ 7.86
14	2155334		Bracket, Door Stop (black)		Appelez-nous	-
14	2155332		Bracket, Door Stop (chrome)		Appelez-nous	-
15	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.18
16	1119360		Retainer, Insert		Appelez-nous	-
17	1118435		Insert, Handle (black)		Appelez-nous	-
17	1119363		Insert, Handle (almond)		Appelez-nous	-
17	1119361		Insert, Handle (white)		Appelez-nous	-
18	1118436		Insert, Handle (black)		Appelez-nous	-
18	1119367		Insert, Handle (white)		Appelez-nous	-
18	1119369		Insert, Handle (almond)		Appelez-nous	-
19	1119366		Retainer, Insert		Appelez-nous	-
20	2156220		End Cap (2)		Appelez-nous	-
21	489075		Screw		Appelez-nous	-
22	489022		Screw		Appelez-nous	-
