SELECT A DIAGRAM

02 - Cabinet


03 - Refrigerator Liner


04 - Refrigerator Shelf


05 - Freezer Liner


06 - Air Flow


07 - Refrigerator Door


08 - Freezer Door, Lit/optional

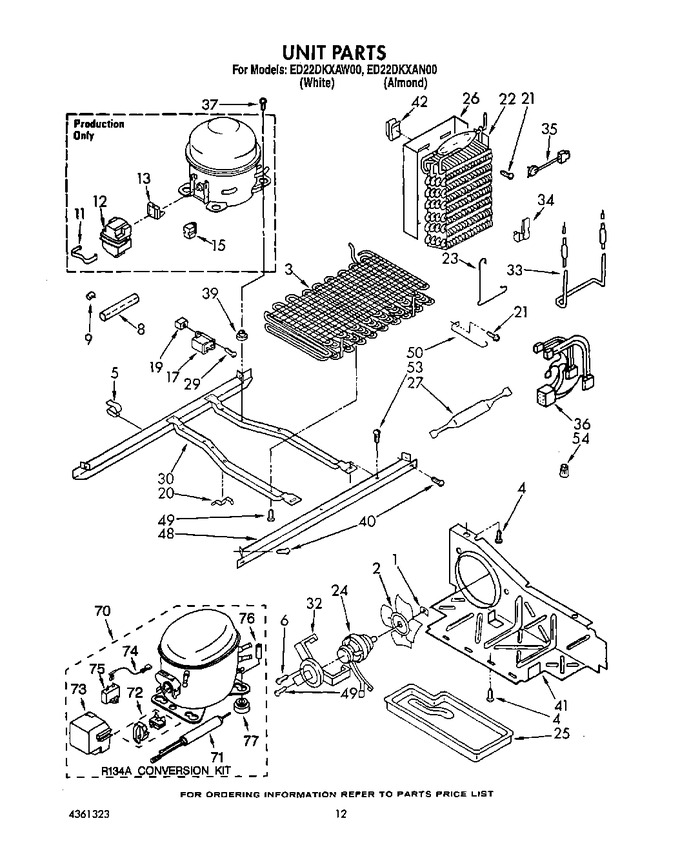

09 - Unit


10 - Control


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 7.82
2	1108179		Fan, Blade				$ 49.54
3	2154010		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489337)			Immediately	$ 7.83
5	2155658		Clip, Wire		Appelez-nous	-
6	681390		Screw, 8-32 X 3/8   (Replaces: 489019)				$ 13.06
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
9	WP2158826		Dampener   (Replaces: 2158826)				$ 1.73
11	943322		Spring, Relay Case		Appelez-nous	-
12	1105055		Case, Relay		Appelez-nous	-
13	2154857		Overload (includes Relay)		Appelez-nous	-
15	N/A		Relay (see Overload)		Appelez-nous	-
17	WPW10662129		Running, Capacitor   (Replaces: 1114291)			Immediately	$ 58.86
19	509812		Screw Grommet		Appelez-nous	-
20	548744		Clip, Unit Cover (2)		Appelez-nous	-
21	WP489478		Screw   (Replaces: 489242)				$ 7.75
22	WP2188822		Evaporator   (Replaces: 2155500)			Immediately	$ 339.85
23	2161329		Clamp		Appelez-nous	-
24	833697		Fan, Motor   (Replaces: 2154735)			Immediately	$ 88.15
25	2154114		Tray, Evaporator		Appelez-nous	-
26	2149293		Heat Shield		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2154002)			Immediately	$ 52.57
29	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.06
30	2304903		Unit Mounting Frame   (Replaces: 1127944)				$ 233.03
32	2162062		Fan, Motor Bracket		Appelez-nous	-
33	2162079		Heater, Defrost		Appelez-nous	-
34	2161330		Clip		Appelez-nous	-
35	WPW10225581		Defrost, Bi-metal   (Replaces: 2161331)			Immediately	$ 50.77
36	2153994		Unit, Harness		Appelez-nous	-
37	489387		Screw		Appelez-nous	-
39	2162067		Grommet (4)		Appelez-nous	-
40	489340		Screw		Appelez-nous	-
41	W10896764		Baffle, Air   (Replaces: 2149128)				$ 96.38
42	2155547		Clip, Heat Shield		Appelez-nous	-
48	2149717		Unit Mounting Rail		Appelez-nous	-
49	488624		Screw		Appelez-nous	-
50	1105612		Guard, Fan				$ 40.58
53	WP489427		Screw, 1/4-28 X 1/2 (2)   (Replaces: 489339)				$ 7.47
54	227991		Wire Connector		Appelez-nous	-
70	4388006		Compressor (includes Items 71, 72, 73, 74, 75, 76, & 77) Also Order		Appelez-nous	-
70	876765		Tube Kit			Immediately	$ 86.33
71	W10843121		Drier   (Replaces: 4387019)			Immediately	$ 52.57
72	WP4387835		Overload/relay Asy.   (Replaces: 4387835)				$ 168.66
73	WP2162358		Cover, Terminal   (Replaces: 4387731)				$ 90.75
74	WP2172890		Wire, Capacitor   (Replaces: 2172890)				$ 8.10
75	WP4387764		Capacitor   (Replaces: 4387764)				$ 177.04
76	4387559		Sleeve		Appelez-nous	-
77	876764		Valve, Access(3/16``)			Immediately	$ 91.35
77	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
77	978029		Valve Access (5/8``)				$ 93.85
77	978030		Valve, Access (3/4``)				$ 130.71
77	WP4387558		Grommet   (Replaces: 4387558)				$ 6.95
77	978026		Valve, Access (5/16``)			Immediately	$ 128.09
77	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
77	978028		Valve, Access (1/2)		Appelez-nous	-
