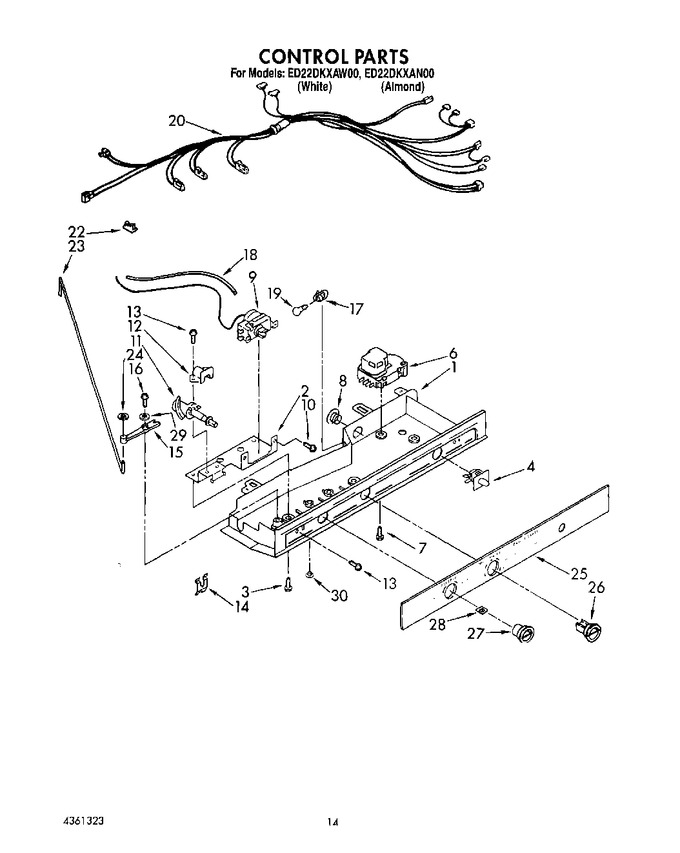

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2155518		Control Box		Appelez-nous	-
2	1110629		Mounting Bracket		Appelez-nous	-
3	489190		Screw (2)		Appelez-nous	-
4	WP2149705		Light Switch   (Replaces: 2149705)			Immediately	$ 40.40
6	2162347		Defrost Timer (10 Hr.)		Appelez-nous	-
7	489392		Screw (2)   (Replaces: 489192)				$ 13.35
8	WP941839		Hole, Plug   (Replaces: 941839)				$ 7.65
9	WP2198202		Thermostat Assembly   (Replaces: 2161284)			Immediately	$ 78.43
10	WP965173		Screw, 8 X 3/8 (2)   (Replaces: 487869)			Immediately	$ 10.72
11	2161250		Cam Assembly		Appelez-nous	-
12	1110560		Bearing Body				$ 10.76
13	WP489478		Screw   (Replaces: 489242)				$ 7.75
14	938439		Retainer, Damper		Appelez-nous	-
15	1110559		Pivot Arm				$ 8.35
16	627068		Screw				$ 12.12
17	4387478		Light Socket   (Replaces: 851067)			Immediately	$ 110.16
18	WP2196003		Tube Barrier, Thermostat   (Replaces: 1115241)				$ 7.95
19	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
20	2149186		Control Box Harness		Appelez-nous	-
22	1115375		Clip, Wiring				$ 11.15
23	1123960		Connecting Rod				$ 6.81
24	489285		Fastener, Push-on		Appelez-nous	-
25	2161213		Escutcheon, Control Box		Appelez-nous	-
26	1116852		Knob, Thermostat		Appelez-nous	-
27	1116853		Knob, Air Control		Appelez-nous	-
28	837444		Knob, Retainer		Appelez-nous	-
29	489203		Spring Washer		Appelez-nous	-
30	940014		Hole Plug				$ 18.33
