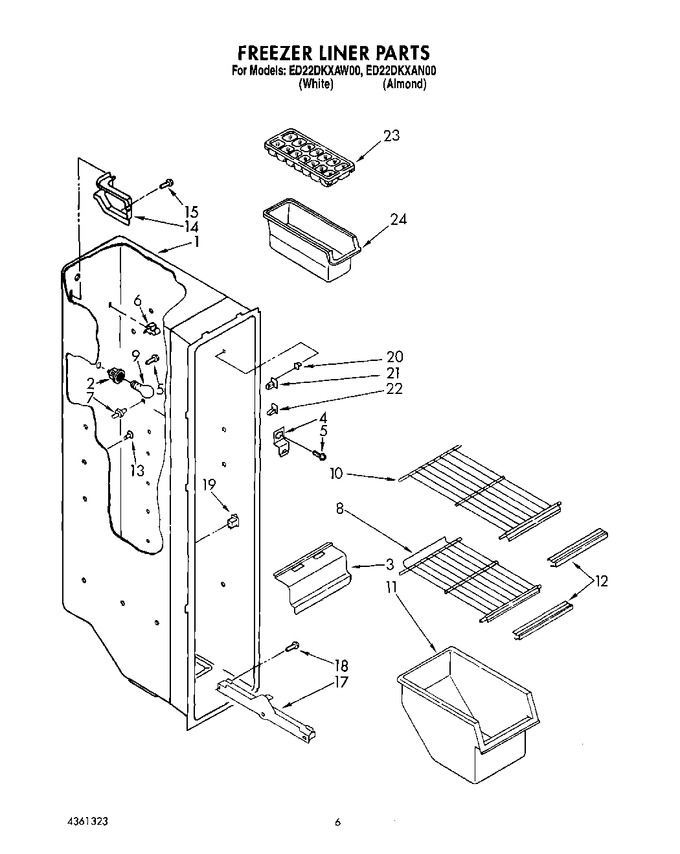

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	WPW10119935		Socket, Light   (Replaces: 2155597)				$ 106.16
3	WP2155595		Lens, Light Compartment   (Replaces: 2155595)				$ 88.36
4	2155021		Support Clip Ice Maker		Appelez-nous	-
5	WP489478		Screw   (Replaces: 489242)				$ 8.18
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.94
7	4388538		Support, Stud (4)   (Replaces: 1110718)			Immediately	$ 32.85
8	1114609		Shelf (large 2)		Appelez-nous	-
8	1118165		Shelf (small 1)		Appelez-nous	-
9	8009		Bulb, Light   (Replaces: 527949)			Immediately	$ 18.67
10	1114608		Shelf		Appelez-nous	-
11	2148194		Bin, Freezer		Appelez-nous	-
12	2149090		Trim, Shelf		Appelez-nous	-
13	1110779		Grommet		Appelez-nous	-
14	2152644		Cover, Wiring		Appelez-nous	-
15	WP488729		Screw   (Replaces: 489176)			Immediately	$ 8.28
17	1115383		Slide, Freezer Bin		Appelez-nous	-
18	487979		Screw		Appelez-nous	-
19	W11384469		Switch, Rocker Arm   (Replaces: 1108112)			Immediately	$ 39.09
20	946355		Stud		Appelez-nous	-
21	946356		Stud, R.s. Front		Appelez-nous	-
22	1106982		Stud, Rear		Appelez-nous	-
23	WP841180A		Ice Cube Tray   (Replaces: 841180)			Immediately	$ 47.84
24	WP982704		Container, Ice   (Replaces: 1116917)				$ 32.55
