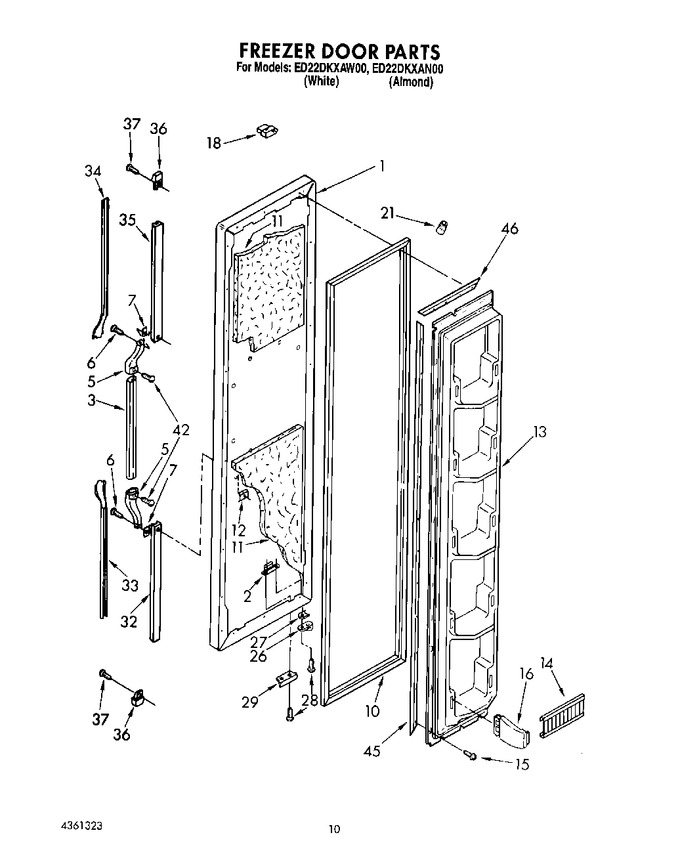

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4362016 | Freezer, Door Panel (almond (also Order Item 11)) |
|
- | |||||
| 1 | 4362017 | Freezer, Door Panel (white) |
|
- | |||||
| 2 | 988402 | Tap Plate |
|
- | |||||
| 3 | 943079 | Handle, Center (almond) |
|
- | |||||
| 3 | 1124713 | Handle, Center (white) |
|
- | |||||
| 5 | 1119359 | End Cap (2) |
|
- | |||||
| 6 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 7.67 | |||||
| 7 | 935075 | Shim, End Cap (2) |
|
- | |||||
| 10 | 2188405A | Door Gasket, Magnetic (Replaces: 1125926) |
|
$ 351.08 | |||||
| 10 | 2188405A | Door Gasket Magnetic (for Model Ed22dkxan00) (Replaces: 1129267) |
|
$ 351.08 | |||||
| 11 | 876029 | Foam Insulation |
|
- | |||||
| 12 | 941242 | Screw Anchor (2) |
|
- | |||||
| 13 | 1129241 | Panel, Interior Door |
|
- | |||||
| 14 | 2157023 | Trim, Door Shelf |
|
- | |||||
| 15 | WPW10141645 | Screw (repair) (Replaces: 489084) |
|
$ 7.67 | |||||
| 15 | WP489069 | Screw, 7 X 1/2 (28) (Replaces: 489101) |
|
Immediately | $ 7.86 | ||||
| 16 | WP2196100 | Trim, End Cap (Replaces: 1110719) |
|
Immediately | $ 8.66 | ||||
| 18 | 936183 | Connector, Plug |
|
- | |||||
| 21 | 227991 | Wire Connector |
|
- | |||||
| 26 | 4318165 | Door Closer, Upper Cam (Replaces: 986758) |
|
Immediately | $ 27.36 | ||||
| 27 | WP1104787 | Shim, Door Closer (Replaces: 1104787) |
|
$ 7.58 | |||||
| 28 | WP489069 | Screw, 8 X 1/2 (Replaces: 488938) |
|
Immediately | $ 7.86 | ||||
| 29 | 988420 | Bracket, Door Stop |
|
- | |||||
| 32 | 1119360 | Retainer, Insert |
|
- | |||||
| 33 | 1119361 | Insert, Handle (white) |
|
- | |||||
| 33 | 1119363 | Insert, Handle (almond) |
|
- | |||||
| 34 | 1119367 | Insert, Handle (white) |
|
- | |||||
| 34 | 1119369 | Insert, Handle (almond) |
|
- | |||||
| 35 | 1119366 | Retainer, Insert |
|
- | |||||
| 36 | 2156220 | End Cap (2) |
|
- | |||||
| 37 | 489075 | Screw, 10-32 X 5/8 (2) |
|
- | |||||
| 42 | 489022 | Screw, 6-20 X 3/8 (4) |
|
- | |||||
| 45 | 1117766 | Gasket Retainer, Side (2) |
|
$ 36.55 | |||||
| 46 | 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | |||||
| 46 | 350956 | Xenamel, Almond (13 Oz. Spray Can) |
|
$ 51.44 | |||||
| 46 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 46 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 17.91 | |||||
| 46 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 46 | 876370 | Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 231.56 | |||||
| 46 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 173.95 | ||||
| 46 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 117.94 | |||||
| 46 | WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.18 | ||||
| 46 | 1117767 | Gasket Retainer, Top & Bottom |
|
- | |||||
| 46 | 350942 | Primer White (13 Oz. Spray Can) |
|
$ 89.66 | |||||
| 46 | 350941 | Leveler, Enamel (13 Oz. Spray Can) |
|
- | |||||
| 46 | 285006 | Enamel, Black (13 Oz. Spray Can) (Replaces: 350939) |
|
$ 57.04 | |||||
| 46 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | ||||
| 46 | 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | |||||
| 46 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 46 | 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | |||||
| 46 | 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | ||||
| 46 | 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | |||||
| 46 | 876370 | Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``) |
|
$ 231.56 | |||||
| 46 | 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | |||||
| 46 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 49.29 | |||||
| 46 | 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 78.45 | |||||
| 46 | 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 46 | 833938 | Kit, Terminal Connector |
|
$ 8.07 | |||||
| 46 | 515393 | Transformer (115-230 Volt) |
|
- | |||||
| 46 | 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 231.56 | |||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| LIT4361323 | Parts List |
|
- | ||||||
| LIT628107 | Modular Icemaker Service Sheet |
|
- | ||||||
| LIT2155714 | Energy Label |
|
- | ||||||
| LIT2155653 | Service & Wiring Sheet |
|
- | ||||||
| LIT2162749 | Label Use & Care Guide |
|
- |
