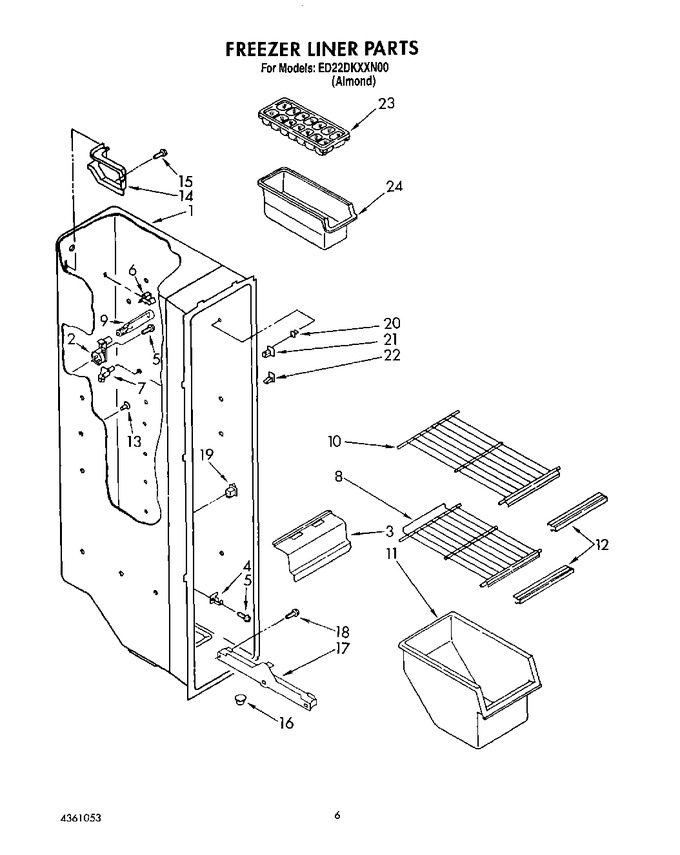

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	1108630		Socket Assembly		Appelez-nous	-
3	1108445		Lens, Light		Appelez-nous	-
4	1108436		Evaporator, Support		Appelez-nous	-
5	WP489478		Screw   (Replaces: 489242)				$ 7.75
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.42
7	4388538		Support, Stud (4)   (Replaces: 1110718)			Immediately	$ 31.34
8	1114609		Shelf		Appelez-nous	-
9	WP548049		Bulb, Light   (Replaces: 548049)				$ 86.35
10	1114608		Shelf		Appelez-nous	-
11	2148194		Bin, Freezer		Appelez-nous	-
12	1110782		Trim Shelf		Appelez-nous	-
13	1110779		Grommet		Appelez-nous	-
14	1129915		Cover, Wiring		Appelez-nous	-
15	WP488729		Screw   (Replaces: 489176)			Immediately	$ 7.79
16	942768		Fitting, Drain		Appelez-nous	-
17	1115383		Slide, Freezer Bin		Appelez-nous	-
18	487979		Screw		Appelez-nous	-
19	W11384469		Switch, Rocker Arm   (Replaces: 1108112)			Immediately	$ 37.23
20	946355		Stud		Appelez-nous	-
21	946356		Stud, R.s. Front		Appelez-nous	-
22	1106982		Stud, L.s. Rear		Appelez-nous	-
23	WP841180A		Ice Cube Tray   (Replaces: 841180)			Immediately	$ 45.56
24	WP982704		Container, Ice   (Replaces: 1116917)				$ 31.00
