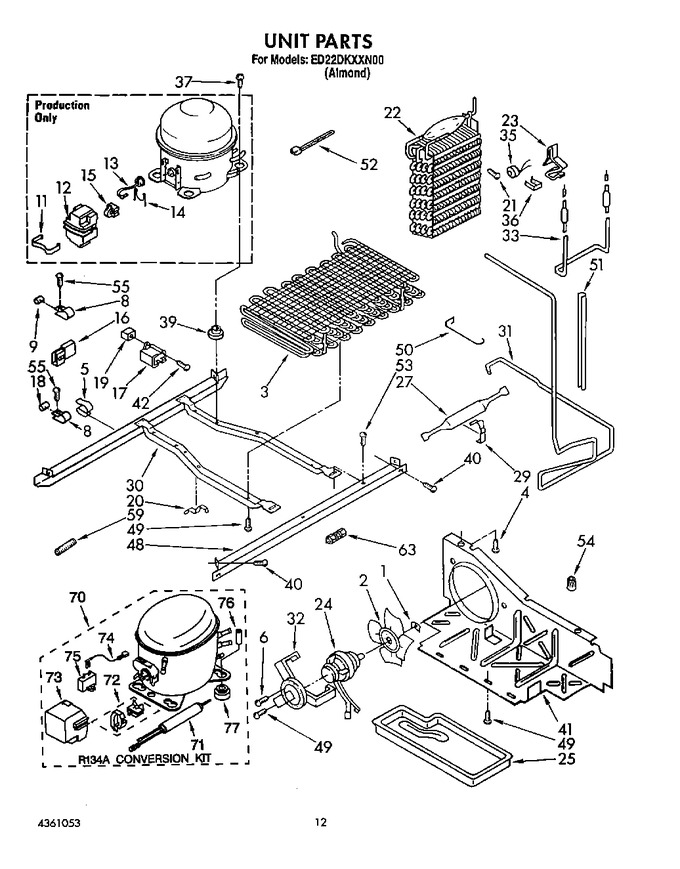

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 7.82
2	1108179		Fan, Blade				$ 49.54
3	1105640		Condenser Assembly		Appelez-nous	-
4	488624		Screw		Appelez-nous	-
5	548745		Clip, Wire (2)		Appelez-nous	-
6	681390		Screw, 8-32 X 3/8   (Replaces: 489019)				$ 13.06
8	510716		Tube Clamp		Appelez-nous	-
9	510769		Dampener		Appelez-nous	-
11	943322		Spring, Relay Case		Appelez-nous	-
12	1105055		Case, Relay		Appelez-nous	-
13	945586		Overload		Appelez-nous	-
14	943320		Overload Spring		Appelez-nous	-
15	945507		Relay		Appelez-nous	-
16	1118850		Housing Plug		Appelez-nous	-
17	WPW10662129		Running, Capacitor   (Replaces: 1114291)			Immediately	$ 58.86
18	WP2158826		Dampener   (Replaces: 836075)				$ 1.73
19	509812		Screw Grommet		Appelez-nous	-
20	548744		Clip, Unit Cover (2)		Appelez-nous	-
21	WP488729		Screw   (Replaces: 489196)			Immediately	$ 7.79
22	1106987		Evaporator		Appelez-nous	-
23	1108431		Clamp (4)		Appelez-nous	-
24	833697		Fan Motor   (Replaces: 2149963)			Immediately	$ 88.15
25	1105524		Tray, Evaporator		Appelez-nous	-
27	W10843121		Drier   (Replaces: 1105550)			Immediately	$ 52.57
29	1127590		Clamp, Dryer		Appelez-nous	-
30	2304903		Unit Mounting Frame   (Replaces: 1127944)				$ 233.03
31	1106990		Exchanger, Heat		Appelez-nous	-
32	548695		Fan, Motor Bracket		Appelez-nous	-
33	2154542		Heater, Defrost		Appelez-nous	-
35	WP4387499		Bimetal, Defrost   (Replaces: 2154544)				$ 120.86
36	513584		Clamp		Appelez-nous	-
37	876811		Screw   (Replaces: 489373)				$ 7.42
39	876811		Grommet (4)   (Replaces: 1100826)				$ 7.42
40	489340		Screw		Appelez-nous	-
41	1105530		Baffle, Air		Appelez-nous	-
42	W11693756		Screw, 8 X 5/8   (Replaces: 488687)			Immediately	$ 14.06
48	2149717		Unit Mounting Rail		Appelez-nous	-
49	WP489464		Screw   (Replaces: 489337)			Immediately	$ 7.83
50	1105614		Guard, Fan		Appelez-nous	-
51	1114634		Sleeve		Appelez-nous	-
52	851095		Strap		Appelez-nous	-
53	WP489427		Screw, 1/4-28 X 1/2 (2)   (Replaces: 489339)				$ 7.47
54	227991		Wire Connector		Appelez-nous	-
55	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488197)				$ 21.16
59	983659		Spring, Tube Forming		Appelez-nous	-
63	WP4211117		Union   (Replaces: 2150347)				$ 9.96
70	4388006		Compressor (includes Items 71, 72, 73, 74, 75, 76, & 77) Also Order		Appelez-nous	-
70	876765		Tube Kit			Immediately	$ 86.33
71	W10843121		Drier   (Replaces: 4387019)			Immediately	$ 52.57
72	WP4387835		Overload/relay Asy.   (Replaces: 4387835)				$ 168.66
73	WP2162358		Cover, Terminal   (Replaces: 4387731)				$ 90.75
74	WP2172890		Wire, Capacitor   (Replaces: 2172890)				$ 8.10
75	WP4387764		Capacitor   (Replaces: 4387764)				$ 177.04
76	4387559		Sleeve		Appelez-nous	-
77	876764		Valve, Access(3/16``)			Immediately	$ 91.35
77	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
77	WP4387558		Grommet   (Replaces: 4387558)				$ 6.95
77	978029		Valve Access (5/8``)				$ 93.85
77	978030		Valve, Access (3/4``)				$ 130.71
77	978026		Valve, Access (5/16``)			Immediately	$ 128.09
77	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
77	978028		Valve, Access (1/2)		Appelez-nous	-
