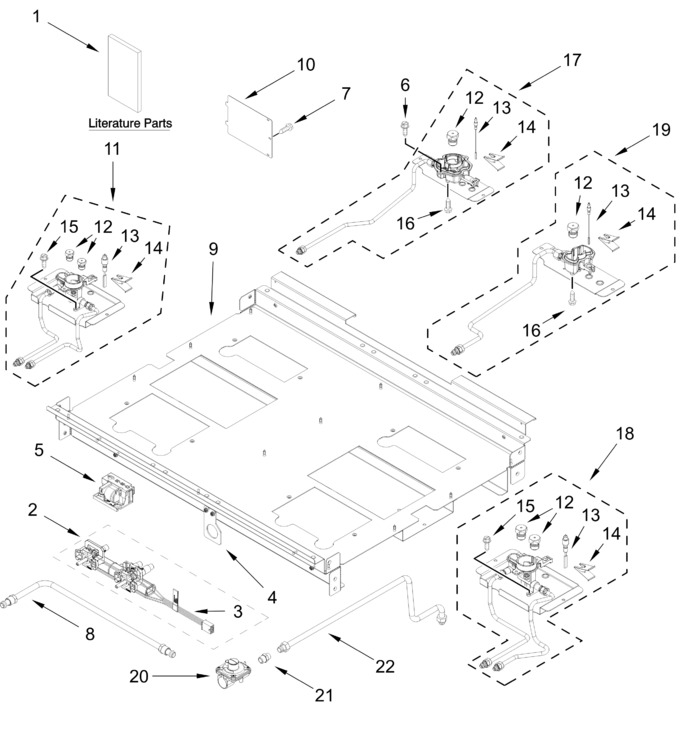

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11788692 | Valve Manifold Assembly (Replaces: W11730895) |
|
- | |||||
| 3 | W11788695 | Switch, Lighted Harness (Replaces: W11749906) |
|
$ 392.52 | |||||
| 4 | W11320153 | Bracket, Manifold (Replaces: W11121194) |
|
$ 79.97 | |||||
| 5 | W11818690 | Module, Spark (Replaces: W11121317) |
|
Immediately | $ 81.60 | ||||
| 6 | W11788768 | Screw (Replaces: W11719156) |
|
- | |||||
| 7 | 7101P42660 | Screw |
|
- | |||||
| 8 | W11788696 | Tube, Manifold Supply (Replaces: W11730894) |
|
- | |||||
| 9 | ARIDBAA9548A1EB15B27ADE369B6B57A1AD | Box, Burner (not Serviced) |
|
- | |||||
| 10 | W10115843 | Cover, Ignition |
|
- | |||||
| 11 | W11805915 | Orifice Holder Assembly (Replaces: W11775868) |
|
- | |||||
| 12 | ARIE067872F6F52DD2FD69D26241530A01D | Orifice (not Serviced, Must Order Orifice Holder Assembly) |
|
- | |||||
| 13 | W11788750 | Igniter (Replaces: W11759723) |
|
Immediately | $ 35.81 | ||||
| 14 | W11684564 | Electrode, Spring (Replaces: W10827923) |
|
Immediately | $ 12.65 | ||||
| 15 | 3196172 | Screw |
|
Immediately | $ 13.47 | ||||
| 16 | W11676349 | Screw, Burner Rail (m4) (Replaces: 8286921) |
|
Immediately | $ 14.76 | ||||
| 17 | W11788747 | Orifice Holder Assembly (Replaces: W11744491) |
|
- | |||||
| 18 | W11805916 | Orifice Holder Assembly (Replaces: W11775869) |
|
- | |||||
| 19 | W11788749 | Orifice Holder Assembly (Replaces: W11744490) |
|
- | |||||
| 20 | W11106948 | Regulator, Pressure (Replaces: W10449140) |
|
Immediately | $ 238.90 | ||||
| 21 | 4453116 | Adapter, Male |
|
$ 179.43 | |||||
| 22 | W11320154 | Tube, Pressure Regulator (Replaces: W11106963) |
|
$ 185.91 | |||||
| ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 | (left Rear) |
|
- | ||||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | ||||||
| 7101P48560 | Screw, Anti-tip Kit |
|
- | ||||||
| W11788752 | Igniter (Replaces: W11759742) |
|
- | ||||||
| W11788751 | Igniter (Replaces: W11759741) |
|
- | ||||||
| W11544575 | Bracket, Anti-tip (Replaces: W10253333) |
|
$ 59.88 | ||||||
| WPW10351278 | Bumper And Screw (Replaces: W10351278) |
|
$ 11.01 | ||||||
| W10780278 | Harness, Door Lock |
|
Immediately | $ 95.87 | |||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- | ||||||
| W11788694 | Valve Manifold Assembly (Replaces: W11730899) |
|
- | ||||||
| W11788697 | Tube, Manifold Supply (Replaces: W11730898) |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11776414 | Wiring Diagram |
|
- | ||||||
| ARI55C06F183F5209A80F64451115E0C931 | (left) |
|
- | ||||||
| ARI76BF577D359F4F7B6AC1C45BB9FB0006 | (left Front) |
|
- | ||||||
| W11779946 | Installation Instructions, Oven Door |
|
- | ||||||
| ARI5AD74B3C8D449725567FBC40A122921E | (right Front, Right Rear) |
|
- | ||||||
| W11200328 | Harness, Cooktop |
|
$ 199.91 | ||||||
| W11200301 | Harness, Main (30 In) |
|
- | ||||||
| ARI5A21FEE31EB202DDA189D0EC8CA36187 | (left Front, Left Rear) |
|
- | ||||||
| ARI68146C2FADA8E1AE3122F181AC9275E2 | (left Front, Right Front) |
|
- | ||||||
| ARI1CEA8328406821DB8179A8C971BDB5B4 | (left Rear, Right Rear) |
|
- | ||||||
| ARI97EE49875860764C24B1F1C761487B6B | (right) |
|
- | ||||||
| W11777739 | Wiring Diagram (cooktop) |
|
- | ||||||
| W10624584 | Cord, Power |
|
$ 189.57 | ||||||
| ARIA12C7E5D311C54B1AACBC1820DF34957 | (right Front) |
|
- | ||||||
| W11797099 | Lp Oven Conversion Kit (Replaces: W11779797) |
|
- | ||||||
| W11797098 | Lp Surface Conversion Kit (Replaces: W11779130) |
|
- | ||||||
| 4450800 | Screw, Grounding |
|
$ 13.47 | ||||||
| W11779773 | Quick Start Guide |
|
- | ||||||
| W11767508 | Owners Manual |
|
- | ||||||
| W11790531 | Harness, Communication (Replaces: W11766035) |
|
$ 139.03 |
