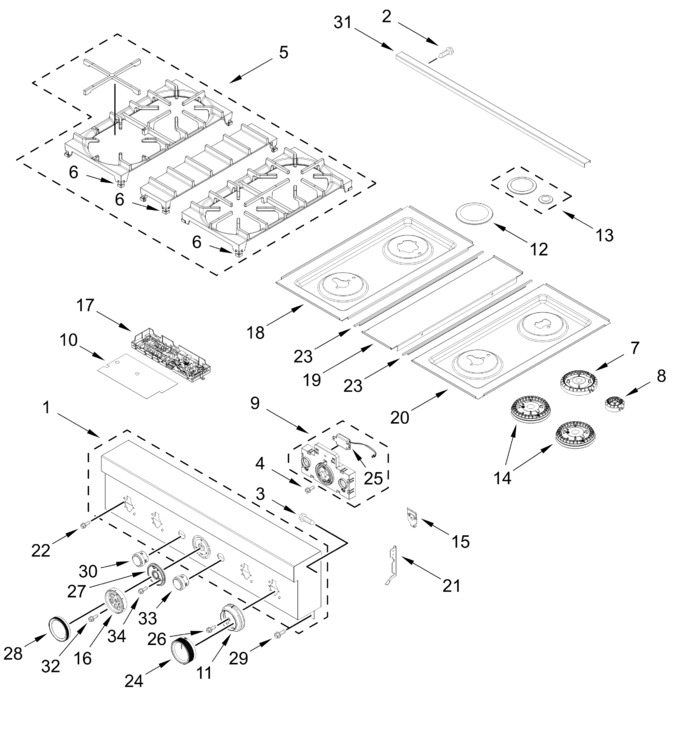

Burner Box And Orifice Holder Assembly Parts


Chassis Parts


Cooktop, Burner And Grate Parts


Internal Oven Parts


Optional Parts (not Included)


Oven Door Parts


Oven Parts


Venting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11789632		Console Panel   (Replaces: W11774889)		Appelez-nous	-
2	7101P33860		Screw		Appelez-nous	-
3	3196265		Screw   (Replaces: 3400099)		Appelez-nous	-
4	W10162096		Screw				$ 21.90
5	W11789239		Grate Burner Kit		Appelez-nous	-
6	W11550692		Bumper, Grate   (Replaces: W11042504)			Immediately	$ 12.57
7	W11531096		Flame Spreader   (Replaces: W11352193)				$ 81.92
8	W11531098		Flame Spreader   (Replaces: W11352197)				$ 80.72
9	W11790604		User Interface   (Replaces: W11777683)		Appelez-nous	-
10	W11320149		Barrier, Appliance Manager   (Replaces: W11281269)				$ 130.57
11	W11788770		Bezel Assembly, Gas Burner (stainless)   (Replaces: W11731056)		Appelez-nous	-
12	W11576413		Cap, Stack Burner (black)   (Replaces: W11346163)				$ 89.25
13	W11788771		Cap Kit, Burner (black, Set Of 2)   (Replaces: W11750250)		Appelez-nous	-
14	W11436986		Flame Spreader, Stack   (Replaces: W11348511)			Immediately	$ 71.73
15	W11318207		Spring Clip, Range   (Replaces: W11036559)				$ 12.88
16	W11789785		Knob, Oven Mode (stainless)   (Replaces: W11738550)		Appelez-nous	-
17	W11790581		Manager, Appliance (powermax)   (Replaces: W11767303)				$ 409.76
18	W11788773		Panel, Left Cooktop (black)   (Replaces: W11758655)		Appelez-nous	-
19	W11121361		Filler, Cooktop (black)				$ 465.65
20	W11788779		Panel, Right Cooktop (black)   (Replaces: W11758656)		Appelez-nous	-
21	W10130760		Bracket, Moving Console (left)				$ 75.94
22	W11674763		Screw   (Replaces: W10919387)				$ 14.76
23	W10271524		Trim, T-strip (black)				$ 212.34
24	W11788781		Knob, Dual (stainless)   (Replaces: W11732024)				$ 87.79
25	W11123146		Speaker Assembly   (Replaces: W10568405)				$ 80.93
26	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
27	W11788782		Bezel Assembly, Oven (stainless)   (Replaces: W11738551)		Appelez-nous	-
28	W11788784		Knob, Oven Temperature (stainless)   (Replaces: W11740403)				$ 61.29
29	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
30	W11318857		Button Assembly, Oven Light   (Replaces: W11090651)				$ 23.81
31	W11156414		Trim, Island				$ 260.38
32	WP486754		Screw   (Replaces: 246119)				$ 8.01
33	W11319196		Button Assembly, Oven Start   (Replaces: W11090650)				$ 23.67
34	W11788785		Screw   (Replaces: W11755190)		Appelez-nous	-
	ARI283693F3486669333C7F1EE938CD8A5B		(right Rear)		Appelez-nous	-
	W11788780		Knob, Single (stainless)   (Replaces: W11731284)				$ 52.49
	W10130759		Bracket, Moving Console (right)				$ 75.94
	ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9		(left Rear)		Appelez-nous	-
	ARI68146C2FADA8E1AE3122F181AC9275E2		(left Front, Right Front)		Appelez-nous	-
	ARI1CEA8328406821DB8179A8C971BDB5B4		(left Rear, Right Rear)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
