SELECT A DIAGRAM
Chassis Parts

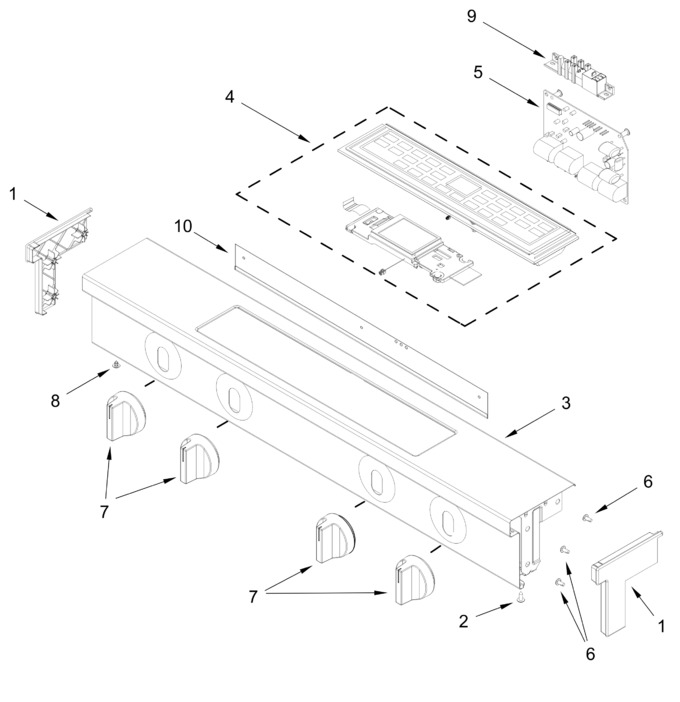

Control Panel Parts
Cooktop Parts
Door Parts
Drawer Parts
Manifold Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11776746 | Console, Endcap (grey, Left) (Replaces: W11742723) |
|
Immediately | $ 128.46 | ||||
| 2 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 3 | W11817171 | Panel, Control (stainless) (Replaces: W11756509) |
|
- | |||||
| 4 | W11817184 | Control, User Interface (Replaces: W11785664) |
|
$ 465.97 | |||||
| 5 | W10898291 | Module, Spark Dsi (Replaces: W10818365) |
|
Immediately | $ 365.64 | ||||
| 6 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 14.75 | ||||
| 7 | W11730083 | Knob (stainless) (Replaces: W11632040) |
|
$ 65.13 | |||||
| 8 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 9 | W11693498 | Module, Spark (Replaces: W11349967) |
|
Immediately | $ 105.71 | ||||
| 10 | W11817164 | Console Filler (Replaces: W11784731) |
|
- | |||||
| W11776748 | Console,endcap (grey, Right) (Replaces: W11742725) |
|
Immediately | $ 128.46 |
