Chassis Parts
Control Panel Parts
Cooktop Parts
Door Parts
Drawer Parts
Manifold Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

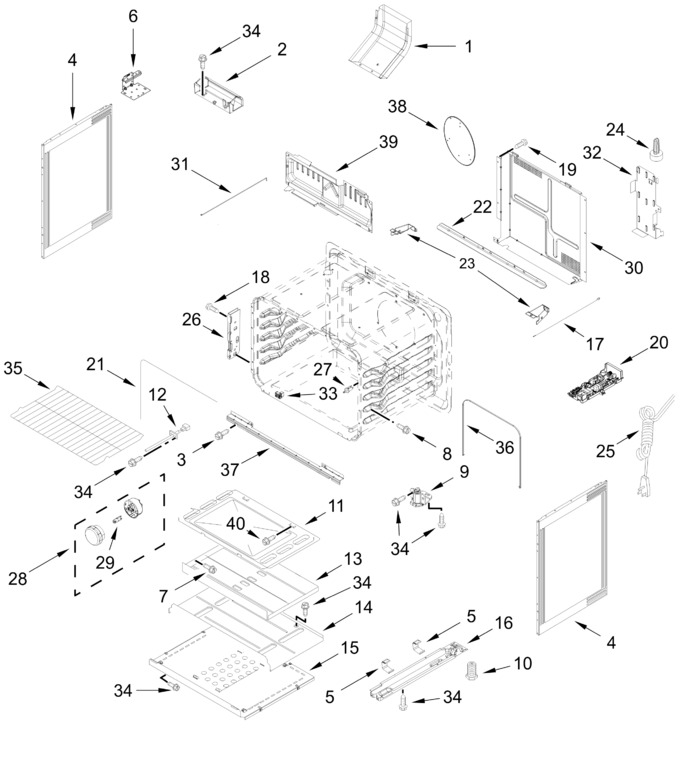

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11747642 | Box, Flue (Replaces: W11366116) |
|
- | |||||
| 2 | W11730237 | Shield, Flue (Replaces: W11279866) |
|
- | |||||
| 3 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 8.30 | |||||
| 4 | W11730303 | Panel, Side (black) (Replaces: W11445467) |
|
Immediately | $ 178.50 | ||||
| 5 | W10137382 | Clip, Panel |
|
Immediately | $ 48.42 | ||||
| 6 | W11727012 | Bracket, Cooktop Console (Replaces: W11287215) |
|
- | |||||
| 7 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| 8 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 9 | WPW10341186 | Front Foot Assembly (Replaces: W10341186) |
|
Immediately | $ 32.59 | ||||
| 10 | WPW10058460 | Foot, Leveling (rear) (Replaces: W10058460) |
|
Immediately | $ 8.24 | ||||
| 11 | W11730226 | Bottom, Oven (Replaces: W11602073) |
|
$ 231.05 | |||||
| 12 | W11730224 | Sensor (Replaces: W11633068) |
|
Immediately | $ 48.92 | ||||
| 13 | 8053967 | Baffle, Burner Oven |
|
$ 315.96 | |||||
| 14 | 8053969 | Shield, Heat |
|
$ 113.04 | |||||
| 15 | W11730232 | Shield, Lower (Replaces: W11640074) |
|
- | |||||
| 16 | W11818353 | Assembly, Base Rail (left) (Replaces: W10390008) |
|
$ 62.66 | |||||
| 17 | 9757239 | Rod, Door Switch |
|
$ 96.37 | |||||
| 18 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 19 | W11684512 | Screw (Replaces: 3400080) |
|
$ 14.81 | |||||
| 20 | W11817159 | Electronic, Control, (Replaces: W11798449) |
|
- | |||||
| 21 | W11542153 | Seal, Door (Replaces: W11491751) |
|
Immediately | $ 50.20 | ||||
| 22 | W10435470 | Brace, Main Back |
|
$ 81.74 | |||||
| 23 | W10162253 | Brace, Corner (left) |
|
$ 74.13 | |||||
| 24 | 8016P02260 | Glide, Main Top |
|
- | |||||
| 25 | W11730265 | Cord, Power (Replaces: W11661976) |
|
$ 84.65 | |||||
| 26 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 9.32 | ||||
| 27 | W11620712 | Switch, Door (Replaces: W11511828) |
|
Immediately | $ 46.31 | ||||
| 28 | W11707255 | Light Assembly (Replaces: W11634772) |
|
Immediately | $ 40.75 | ||||
| 29 | WPW10571723 | Bulb, Halogen 40 Watts (Replaces: W10571723) |
|
Immediately | $ 27.71 | ||||
| 30 | W11747649 | Side, Cover (Replaces: W11633165) |
|
$ 133.94 | |||||
| 31 | W10078380 | Rod, Latch |
|
$ 94.91 | |||||
| 32 | W11729919 | Bracket, Acu (Replaces: W11365827) |
|
$ 77.10 | |||||
| 33 | W10807823 | Glide, Drawer Front (Replaces: W10674705) |
|
Immediately | $ 19.30 | ||||
| 34 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 35 | W11520287 | Rack, Oven (Replaces: W11173792) |
|
Immediately | $ 57.99 | ||||
| 36 | 4820F01559 | Insulation, Strap |
|
- | |||||
| 37 | W11464547 | Bracket, Front Frame |
|
$ 45.89 | |||||
| 38 | W11765137 | Convection, Cover (Replaces: W11661763) |
|
- | |||||
| 39 | W11813672 | Convection, Rear Cover (Replaces: W11778054) |
|
- | |||||
| 40 | W10379120 | Screw |
|
- | |||||
| W11161831 | Insulation, Wrap (Replaces: W10774939) |
|
Immediately | $ 116.41 | |||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11776761 | Insulation, Back (Replaces: W11632434) |
|
- | ||||||
| W11818353 | Assembly, Base Rail (right) (Replaces: W10390007) |
|
$ 62.66 | ||||||
| W10162252 | Brace, Corner (right) |
|
$ 78.59 |
