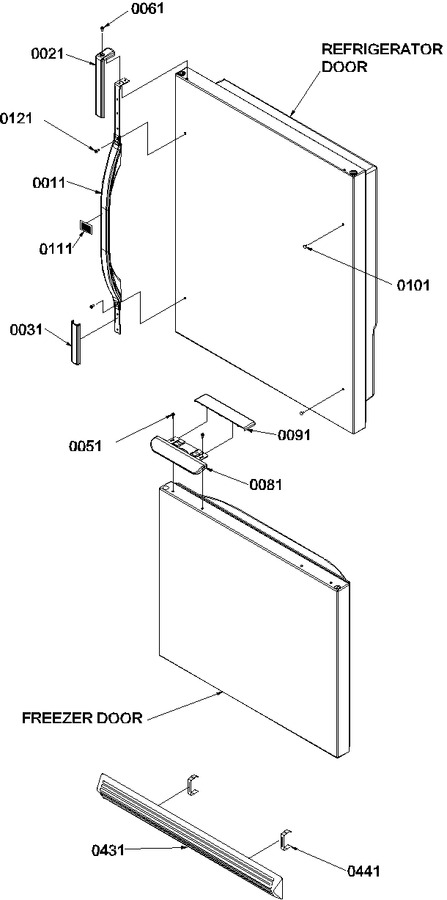

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12443502		Handle,ref Dr(almond)		Appelez-nous	-
21	12443302		Trim, Upper Handle (almond)		Appelez-nous	-
31	12273511		Trim, Lwr Handle (almond)		Appelez-nous	-
51	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
61	12248201		Screw, Hndl Cone				$ 5.48
81	12285405		Handle, Frz Dr (almond)		Appelez-nous	-
91	12285502		Cap, Hndl Frz L		Appelez-nous	-
101	M0310730		Plug Button (almond)		Appelez-nous	-
111	12457801		Nameplate, Handle		Appelez-nous	-
121	R9800670		Screw, Mounting   (Replaces: M0223230)				$ 10.58
431	10474905		Grille, L Toe		Appelez-nous	-
441	10551502		Clip, Toe Grille				$ 5.84
