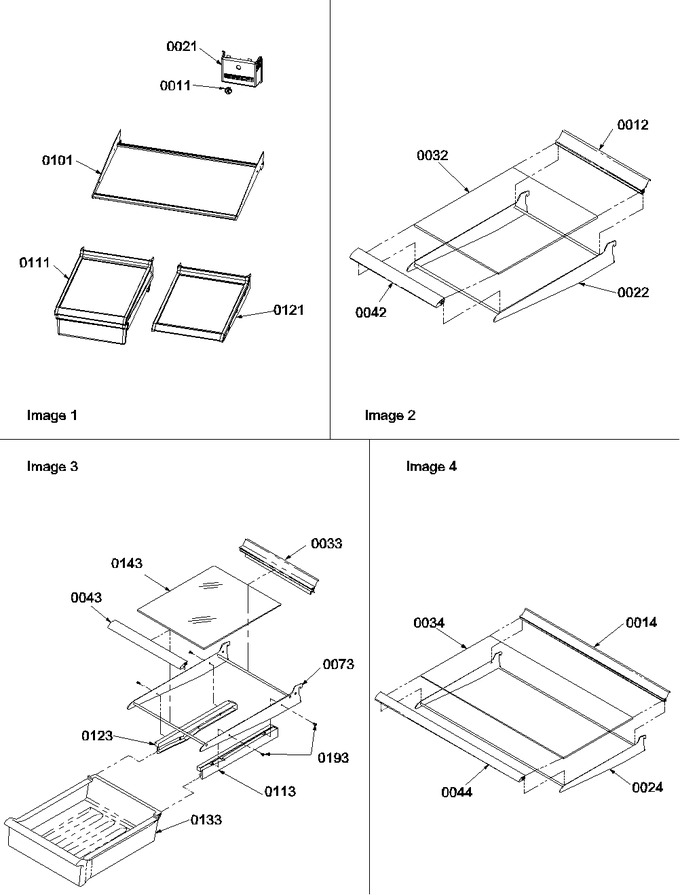

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	D7795826		Knob, Control (wht)		Appelez-nous	-
12	10946012		Extr, Rear Shelf		Appelez-nous	-
14	WP10946013		Extr, Full Shelf (rear)   (Replaces: 10946013)				$ 131.84
21	12219302		Cover, Damper		Appelez-nous	-
22	10460114		Shelf, Glass Frame		Appelez-nous	-
24	W10840992		Frame, Full Shelf   (Replaces: 10460115)				$ 226.38
32	12204808		Glass Shelf				$ 27.75
33	10946012		Extr, Rear Shelf		Appelez-nous	-
34	WP12204809		Glass, Full Shelf   (Replaces: 12204809)				$ 251.22
42	10459930		Extr, Front Shelf				$ 42.17
43	10459930		Extr, Front Shelf				$ 42.17
44	10459931		Extr, Full Shelf (frt)		Appelez-nous	-
73	10460114		Shelf, Glass Frame		Appelez-nous	-
101	10480434Q		Assy, Glass Shelf		Appelez-nous	-
111	10918219Q		Assy, Mk Shelf		Appelez-nous	-
113	12027201		Glide, R Deli				$ 64.15
121	10480433Q		Assy, Glass Shelf		Appelez-nous	-
123	12027101		Glide, L Deli		Appelez-nous	-
133	10417115		Pan, Meat Keeper		Appelez-nous	-
143	12204808		Glass Shelf				$ 27.75
193	W11233072		Screw   (Replaces: M0214931)			Immediately	$ 14.72

    View Diagram in Separate Window       Print Part List
