Diagram for 01 - Cabinet Back
01 - Cabinet Back

Diagram for 02 - Compressor Compartment
02 - Compressor Compartment

Diagram for 03 - Crisper Compartment
03 - Crisper Compartment

Diagram for 04 - Evap Area
04 - Evap Area

Diagram for 05 - Fz Door
05 - Fz Door

Diagram for 06 - Ref Inner Door
06 - Ref Inner Door

Diagram for 07 - Ref Outer Door
07 - Ref Outer Door

Diagram for 08 - Ref/fz Controls & Light Switches
08 - Ref/fz Controls & Light Switches

Diagram for 09 - Ref/fz Shelving
09 - Ref/fz Shelving

Diagram for 10 - Rollers/drain Tube
10 - Rollers/drain Tube


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10538401 Harness, Liner Appelez-nous -
2 67006425 Screw, Sm   (Replaces: M0209616) In-Stock Immediately $ 7.30

3 WP90767 Screw, Sm   (Replaces: M0224416) In-Stock Immediately $ 8.25

4 B5759611 Gasket Appelez-nous -
5 10485406 Cover, Evap. Appelez-nous -
6 WP10442411 Thermostat, Defrost   (Replaces: 10442402) In-Stock Immediately $ 44.02

7 WP10428409 Heater, Evap   (Replaces: 10428409) Special Order $ 158.41

8 WP489128 Screw   (Replaces: M0220417) Special Order $ 11.40

9 R0170059 Assy,low Side Appelez-nous -
10 A4539619 Pop Rivet Appelez-nous -
11 10427716 Shield, Evap Appelez-nous -
12 A3189320 Gasket, Foam Appelez-nous -
13 67006425 Screw-sm No.8-1/2lg   (Replaces: M0211017) In-Stock Immediately $ 7.30

14 10486102 Tray, Drip Appelez-nous -
15 10485302 Brkt, Ctr. Hinge Appelez-nous -
16 W11673433 Clip, Evap Heater   (Replaces: 10428101) Special Order $ 148.18

17 10519101 Block, Evap (r) Appelez-nous -
18 10485208 Mullion, Ctr Pnt (white) Appelez-nous -
19 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

20 WP2264462 Grommet   (Replaces: A1017202) In-Stock Immediately $ 46.17

21 10492701 Brkt, Lwr. Evap. Fan Special Order $ 5.27

22 GEFM Motor-evap Fan   (Replaces: 10513801) In-Stock Immediately $ 118.50

23 W10116797 Assy, Fan-evap   (Replaces: 10855401) In-Stock Immediately $ 8.56

24 10492801 Brkt, Up Evap. Fan Special Order $ 5.27

25 M0310305 Plug, Button (wht) Appelez-nous -
26 A3030353 Gasket Appelez-nous -
27 10638601 Duct, Return Air Appelez-nous -
28 10623002 Clip, Evaporator Special Order $ 12.11

29 WP67001130 Plug, Top Hinge Button (wht)   (Replaces: M0310729) In-Stock Immediately $ 5.98

30 D7874403 Cover-fl Tb/plug Appelez-nous -
31 10502401 Grille, Frz Air Appelez-nous -
32 10619304 Shroud, Evap Fan Appelez-nous -
33 B0523595 Insul, Batt Appelez-nous -
NI WPW10339879 Tie   (Replaces: M0321202) Special Order $ 8.30


    View Diagram in Separate Window     Print Icon   Print Part List

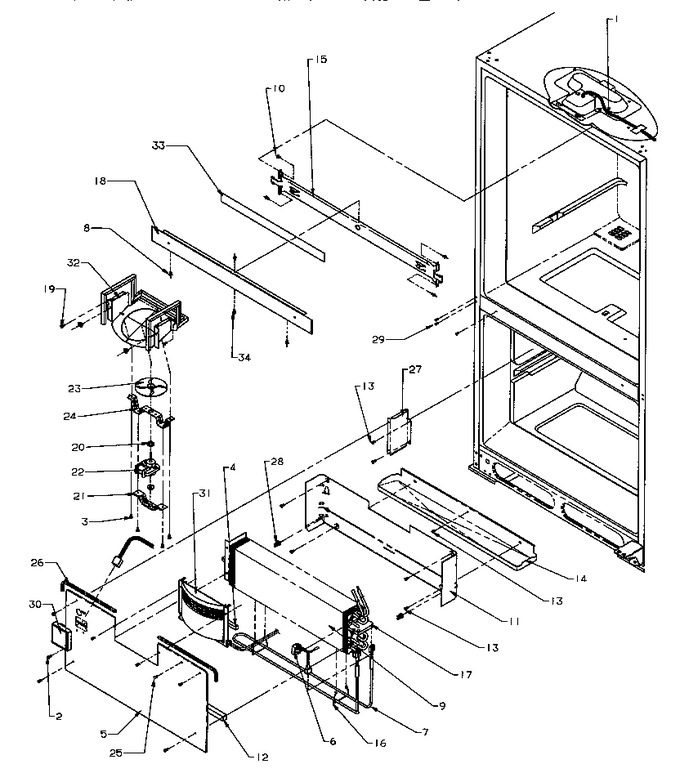

Diagram for BH20S5W (BOM: P1196501W)
