SELECT A DIAGRAM
New Model Search:

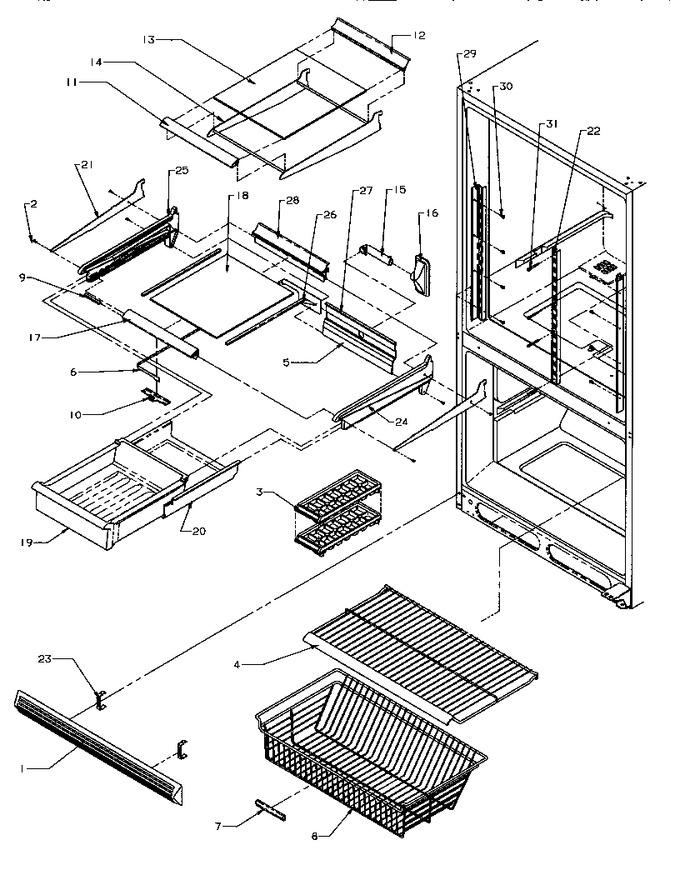

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10474802 | Grille, Toe (white) |
|
$ 44.88 | |||||
| 2 | WPW10348409 | Screw, Mounting (Replaces: M0211533) |
|
Immediately | $ 8.20 | ||||
| 3 | WP841180A | Ice Tray (Replaces: D7725402) |
|
Immediately | $ 47.84 | ||||
| 4 | 10956501 | Shelf, Wire Frz |
|
- | |||||
| 5 | A3189356 | Gasket, Foam |
|
- | |||||
| 6 | 10513503 | Band, Mk Control |
|
- | |||||
| 7 | 10508501 | Handle, Basket |
|
- | |||||
| 8 | 10513401 | Basket, Freezer |
|
- | |||||
| 9 | 10990501 | Spacer, Control |
|
- | |||||
| 10 | 10588201 | Slide, Mtkp Cont. |
|
- | |||||
| 11 | 10459911 | Extr, Front Shelf |
|
- | |||||
| 12 | 10946001 | Extr, Rear Shelf |
|
- | |||||
| 13 | 10370034 | Glass, Shelf |
|
- | |||||
| 14 | 10460110 | Shelf, Glass Frame |
|
- | |||||
| 15 | 10486401 | Tunnel, Air Mt Kp |
|
- | |||||
| 16 | 10501901 | Grommet, Mt. Kpr. |
|
- | |||||
| 17 | 10450316 | Extrusion, Mk Fr |
|
- | |||||
| 18 | 10370049 | Glass, Shelf (mk Top) |
|
- | |||||
| 19 | 10417013 | Pan,meatkeeper |
|
- | |||||
| 20 | 10437304 | Sleeve, Mk |
|
- | |||||
| 21 | 10681401 | Rail, Painted |
|
- | |||||
| 22 | D7599002 | Ladder, Center |
|
- | |||||
| 23 | 10551501 | Clip-toe Grille |
|
- | |||||
| 24 | 10485501 | Glide, R. Mk |
|
- | |||||
| 25 | 10485601 | Glide, L. Mk |
|
- | |||||
| 26 | 10562501 | Ext, Gl Shelf Side |
|
- | |||||
| 27 | 10502501 | Ext, Mt Kpr Band |
|
- | |||||
| 28 | 10502201 | Extrsn, Meatkeeper |
|
- | |||||
| 29 | D7599105 | Ladder, Side |
|
- | |||||
| 30 | 67006425 | Screw-sm No.8-1/2lg (Replaces: M0211017) |
|
Immediately | $ 7.30 | ||||
| 31 | M0231426 | Screw |
|
- | |||||
| NI | 10480415 | Assy, Glass Shelf |
|
- |
