SELECT A DIAGRAM

02 - Cabinet

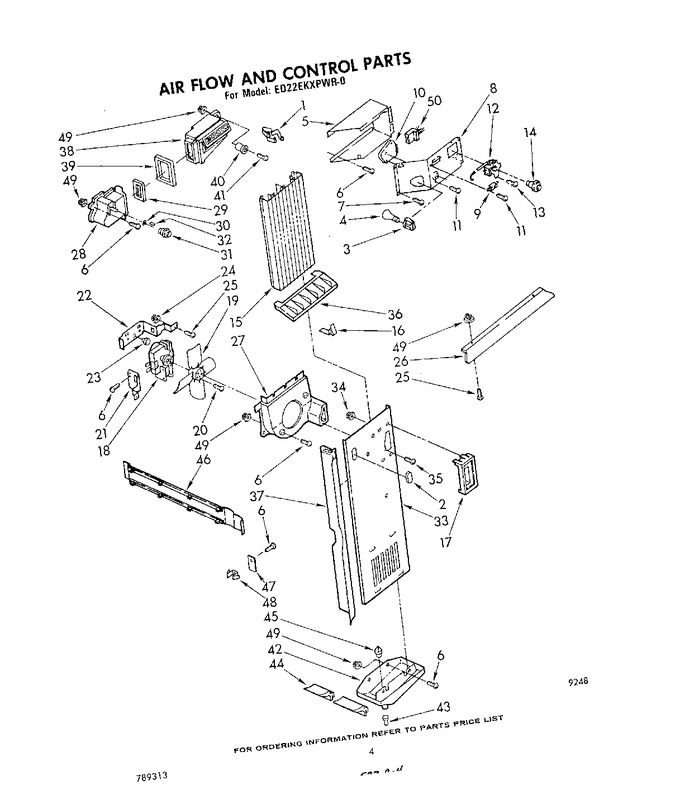

03 - Airflow And Control


04 - Refrigerator Door


05 - Freezer Door


06 - Unit


07 - Shelf , Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2215823		Clip, Air Duct   (Replaces: 842534)				$ 10.42
2	659776		Hole, Plug		Appelez-nous	-
3	4387478		Socket   (Replaces: 851067)			Immediately	$ 110.16
4	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
5	984550		Box, Control		Appelez-nous	-
6	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
7	488474		Screw, 8-32 X 3/8		Appelez-nous	-
8	934045		Control Box Front		Appelez-nous	-
9	938049		Switch, Toggle		Appelez-nous	-
10	W10822278		Defrost Timer   (Replaces: 943435)			Immediately	$ 34.44
11	WP3388228		Screw, 6-20 X 3/8   (Replaces: 488911)				$ 6.95
12	WP4317800		Thermostat & Barrier Assembly   (Replaces: 946644)			Immediately	$ 265.41
13	WP489128		Screw, 8-32 X 3/8   (Replaces: 488500)				$ 10.88
14	836482		Knob, Temperature Control		Appelez-nous	-
15	848484		Air Duct		Appelez-nous	-
16	987954		Baffle, Air		Appelez-nous	-
17	835740		Grille, Freezer		Appelez-nous	-
18	SM999		Fan, Motor   (Replaces: 938372)			Immediately	$ 30.26
19	992920		Blade, Fan				$ 39.91
20	00487887		Screw, 3-48 X 1/4   (Replaces: 487887)				$ 244.80
21	548263		Fan, Bracket Double		Appelez-nous	-
22	548264		Fan, Bracket Single		Appelez-nous	-
23	548268		Fan, Grommet		Appelez-nous	-
24	538449		Screw Grommet		Appelez-nous	-
25	WP489069		Screw, 8 X 1/2   (Replaces: 488772)			Immediately	$ 7.86
26	836216		Baffle, Liner Top		Appelez-nous	-
27	991285		Scroll Fan		Appelez-nous	-
28	841269		Air Scoop Assembly		Appelez-nous	-
29	844871		Gasket, Air Scoop		Appelez-nous	-
30	938439		Retainer, Damper		Appelez-nous	-
31	837445		Control Knob		Appelez-nous	-
32	837444		Knob, Retainer		Appelez-nous	-
33	849496		Cover, Evaporator		Appelez-nous	-
34	981616		Screw, Grommet		Appelez-nous	-
35	WP488729		Screw, 8-15 X 1/2   (Replaces: 488992)			Immediately	$ 7.79
36	836144		End Cap, Evaporator		Appelez-nous	-
37	844844		Gasket, Evaporator Cover		Appelez-nous	-
38	946145		Air Diffuser Assembly		Appelez-nous	-
39	842394		Gasket, Air Diffuser		Appelez-nous	-
40	836667		Spacer		Appelez-nous	-
41	488357		Screw, 8 X 1-1/4		Appelez-nous	-
42	842404		Drain Pan		Appelez-nous	-
43	841770		Fitting, Drain Pan		Appelez-nous	-
44	845564		Gasket, Drain Pan		Appelez-nous	-
45	842259		Cap, Drain		Appelez-nous	-
46	848482		Cover, Heat Exchanger		Appelez-nous	-
47	983605		Heat Exchanger, Clip		Appelez-nous	-
48	537095		Expansion Clip		Appelez-nous	-
49	842339		Grommet		Appelez-nous	-
50	481782		Wiring Cabinet (defrost Timer)		Appelez-nous	-
