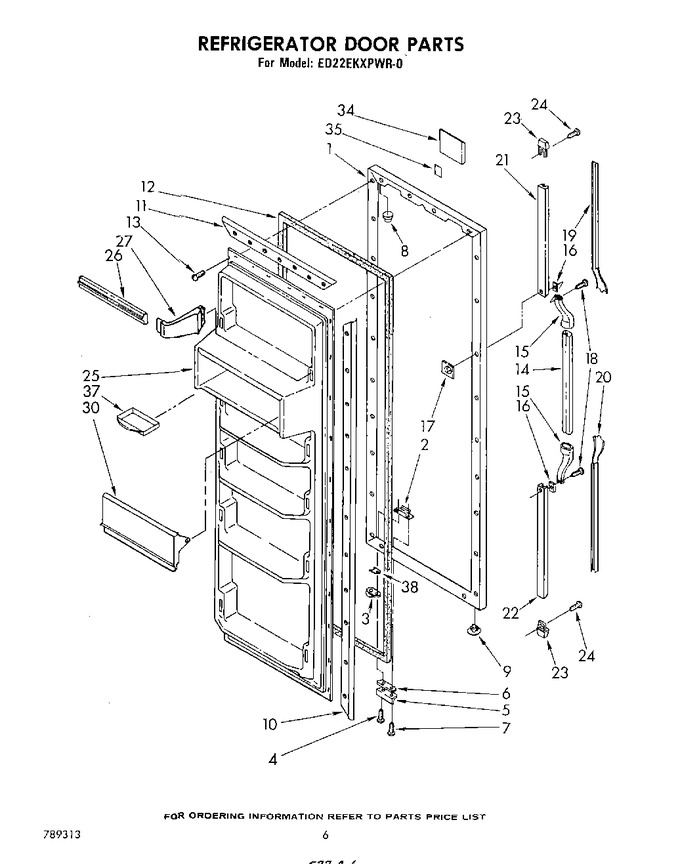

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1101363 | Refrigerator, Door Panel (toast) |
|
$ 1.85 | |||||
| 1 | 1101364 | Refrigerator, Door Panel (platinum) |
|
- | |||||
| 1 | 941246 | Refrigerator, Door Panel (white) |
|
- | |||||
| 1 | 941247 | Refrigerator, Door Panel (coffee) |
|
- | |||||
| 1 | 941248 | Refrigerator, Door Panel (golden Harvest) |
|
- | |||||
| 1 | 941250 | Refrigerator, Door Panel (almond) |
|
- | |||||
| 2 | 988402 | Tap Plate |
|
- | |||||
| 3 | 4318165 | Door Closer, Cam (Replaces: 986758) |
|
Immediately | $ 29.74 | ||||
| 4 | WP489069 | Screw, 8 X 1/2 (Replaces: 488938) |
|
Immediately | $ 8.40 | ||||
| 5 | 988420 | Bracket, Door Stop |
|
- | |||||
| 6 | 988421 | Shim |
|
- | |||||
| 7 | 488549 | Screw, 8 X 5/8 |
|
- | |||||
| 8 | 509929 | Cap, Hinge Sleeve |
|
- | |||||
| 9 | 534927 | Hole Plug |
|
- | |||||
| 10 | 836120 | Retainer Side, Gasket |
|
- | |||||
| 11 | 836121 | Retainer Top & Bottom Gasket |
|
- | |||||
| 12 | 2188404A | Door, Gasket Magnetic (Replaces: 939565) |
|
$ 269.26 | |||||
| 13 | WP489069 | Screw, 7 X 1/2 (Replaces: 489101) |
|
Immediately | $ 8.40 | ||||
| 14 | 1105718 | Handle, Center |
|
- | |||||
| 15 | 935103 | Center End Cap (2) |
|
- | |||||
| 16 | 935075 | Shim, Handle Center (2) |
|
- | |||||
| 17 | 941242 | Screw Anchor |
|
- | |||||
| 18 | WPW10141645 | Screw, 8 X 1/2 (Replaces: 489084) |
|
$ 8.05 | |||||
| 19 | 1105775 | Insert, Handle (top) |
|
- | |||||
| 20 | 1105720 | Insert, Handle (bottom) |
|
- | |||||
| 21 | 941260 | Retainer Insert (top) |
|
- | |||||
| 22 | 941262 | Retainer Insert (bottom) |
|
- | |||||
| 23 | 941259 | End Cap (2) |
|
- | |||||
| 24 | 489075 | Screw, 10-32 X 5/8 |
|
- | |||||
| 25 | 1104203 | Panel, Interior |
|
- | |||||
| 26 | 1105713 | Trim, Interior Door (5) |
|
- | |||||
| 27 | WP849996 | Retainer, Door Trim (10) (Replaces: 849996) |
|
$ 7.95 | |||||
| 30 | 1105773 | Compartment, Door Utility |
|
- | |||||
| 34 | 1104899 | Nameplate |
|
- | |||||
| 35 | 991259 | Tape Strip |
|
- | |||||
| 37 | 520747 | Tray, Butter |
|
- | |||||
| 38 | WP1104787 | Shim, Door Closer Cam (Replaces: 1104787) |
|
$ 7.96 |
