01 - Backguard


02 - Main Top


03 - Optional Griddle


04 - Body


05 - Oven Door


06 - Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

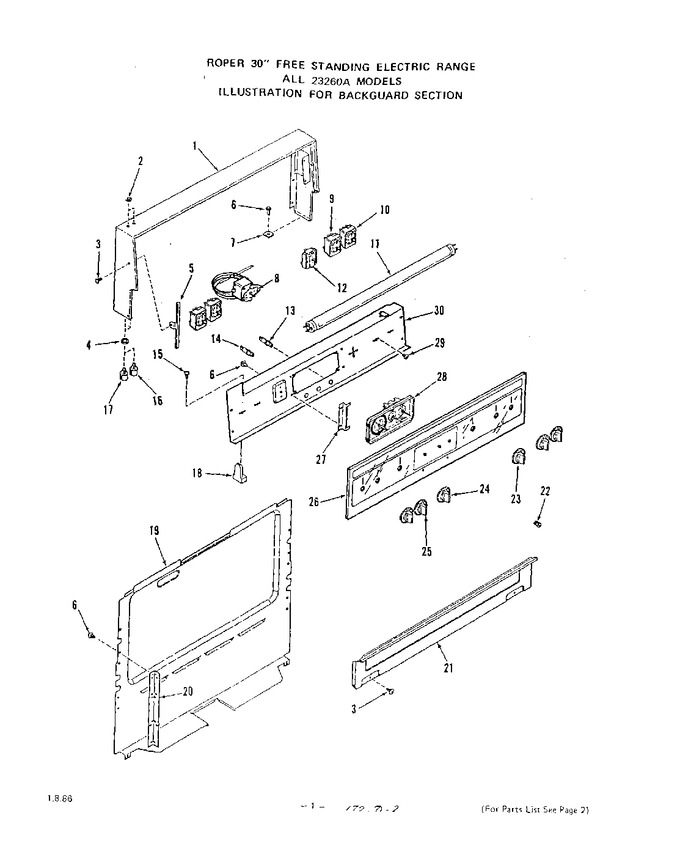

1	296584		Frame-backguard		Appelez-nous	-
2	87403		Nut-round		Appelez-nous	-
3	327621		Screw 6-20x3/8``		Appelez-nous	-
4	236129		Nut-hex		Appelez-nous	-
5	299705		Trim-glass End		Appelez-nous	-
6	327320		Screw 10-16x7/16``		Appelez-nous	-
7	323523		Plate		Appelez-nous	-
8	321958		Thermostat		Appelez-nous	-
9	324608		Control-infinite-lt. Front & Rt. Rear		Appelez-nous	-
10	324609		Control-infinite-lt. Rear & Rt. Front		Appelez-nous	-
11	71734		Lamp-fluorescent		Appelez-nous	-
12	320942		Selector Switch		Appelez-nous	-
13	296317		Light-indicator Surface		Appelez-nous	-
14	326906		Light-indicator Oven		Appelez-nous	-
15	108788		Screw 6-32 X 1/2``		Appelez-nous	-
16	DE81-03691A		Push Switch-fluorescent Lamp   (Replaces: 105386)				$ 110.00
17	283523		Switch-oven Light		Appelez-nous	-
18	325597		Holder-fluorescent Light		Appelez-nous	-
19	326121		Cover-backguard Wire		Appelez-nous	-
20	319361		Support-backguard		Appelez-nous	-
21	296585		Front-backguard Bottom		Appelez-nous	-
22	109225		Knob-clock (start & Stop Time) (3)		Appelez-nous	-
23	327878		Knob-selector		Appelez-nous	-
24	327879		Knob-thermostat		Appelez-nous	-
25	325472		Knob-infinite Control (4 Req)		Appelez-nous	-
26	333756		Glass-backguard		Appelez-nous	-
27	333559		Bracket-clock		Appelez-nous	-
28	333049		Clock W/1 Hr. Timer		Appelez-nous	-
29	78565		Screw 8-32x3/16``		Appelez-nous	-
30	334299		Panel-control Mounting		Appelez-nous	-
