01 - Backguard

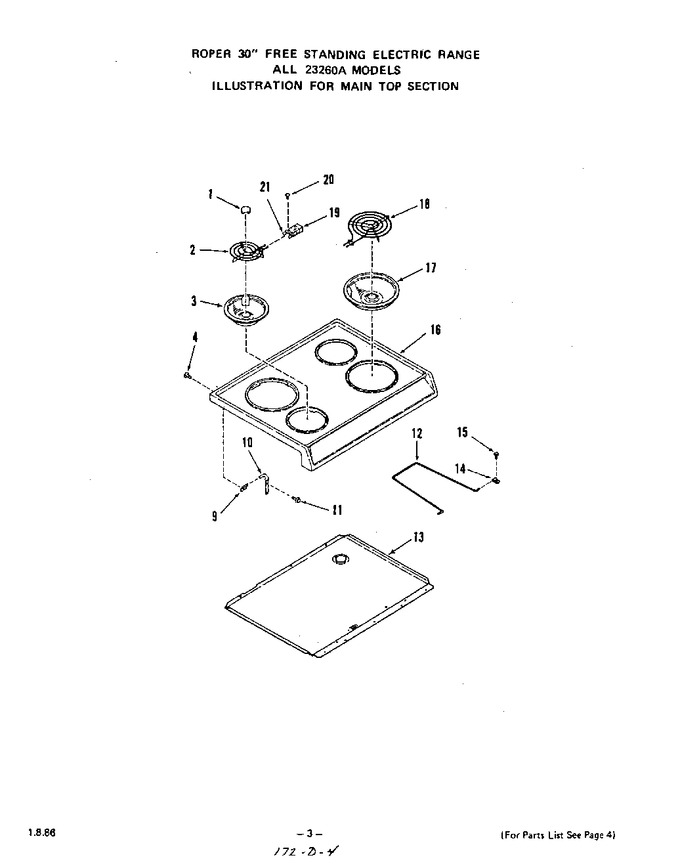

02 - Main Top
03 - Optional Griddle
04 - Body
05 - Oven Door
06 - Oven Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 319704 | Medallion (4 Req) |
|
- | |||||
| 2 | 321010 | 6`` Surface Element-lt. Front & Rt. Rear |
|
- | |||||
| 3 | WPW10196406 | 6`` Chrome Bowl-lt., Rt. Rear & Lt. Front (Replaces: 296481) |
|
Immediately | $ 13.80 | ||||
| 4 | 326974 | Screw 10abx1/2`` |
|
- | |||||
| 9 | 320931 | Bracket-main Top Hinge (lt. Or Rt.) |
|
- | |||||
| 10 | 320922 | Hinge-main Top (left) |
|
- | |||||
| 10 | 320921 | Hinge-main Top (right) |
|
- | |||||
| 11 | 321162 | Screw 10-32 X 3/4`` |
|
- | |||||
| 12 | 320725 | Support Rod-main Top |
|
- | |||||
| 13 | 331590 | Burner Box Bottom |
|
- | |||||
| 14 | 285945 | Clip (2 Req) |
|
- | |||||
| 15 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 16 | 326531 | Main Top (almond) |
|
- | |||||
| 16 | 326530 | Main Top (white) |
|
- | |||||
| 17 | WPW10196405 | 8`` Chrome Bowl (rt. Front & Lt. Rear) (Replaces: 304969) |
|
Immediately | $ 17.29 | ||||
| 18 | 321008 | 8`` Surface Element-rt. Front & Lt. Rear |
|
- | |||||
| 19 | 330031 | Terminal Block W/wire Lead (4 Req) (Replaces: 318960) |
|
Immediately | $ 19.92 | ||||
| 20 | 299632 | Screw 7-32x5/16`` |
|
- | |||||
| 21 | 318872 | Bracket-terminal Block (4 Req) |
|
- |
