SELECT A DIAGRAM

01 - Backguard


02 - Main Top


03 - Power Lock


04 - Body


05 - Oven Door


06 - Wire Harness


07 - Wire Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	329907		Thermostat		Appelez-nous	-
3	323121		Brace-backguard		Appelez-nous	-
4	329905		Selector Switch		Appelez-nous	-
5	5500-200		Infinite Control Switch (rt. Front, Lt. Rear)   (Replaces: 320946)			Immediately	$ 54.85
5	320945		Infinite Control Switch (lt. Front, Rt. Rear)		Appelez-nous	-
6	329906		Bracket-clock		Appelez-nous	-
7	283296		Clock Motor-60 Cycle		Appelez-nous	-
7	283297		Clock Motor (50 Cycle (optional))		Appelez-nous	-
8	329938		Clock W/ 1 Hr. Timer (inc`s. Key 7) (60 Cycle)		Appelez-nous	-
8	329939		Clock W/ 1 Hr. Timer (inc`s. Key 7) (50 Cycle (optional))		Appelez-nous	-
9	323174		Clock Glass		Appelez-nous	-
10	109225		Knob-clock (start & Stop Time) (3)		Appelez-nous	-
11	87403		Knurled Nut		Appelez-nous	-
12	333767		Control Panel		Appelez-nous	-
13	323228		Indicator Light (surface & Lock)		Appelez-nous	-
13	330278		Indicator Light (oven)		Appelez-nous	-
14	327320		Screw 10-16x7/16``		Appelez-nous	-
15	326518		Support-backguard (left)		Appelez-nous	-
15	326517		Support-backguard (right)		Appelez-nous	-
16	323115		End Cap-backguard (right)		Appelez-nous	-
16	323116		End Cap-backguard (left)		Appelez-nous	-
17	298793		Push Switch-oven Light		Appelez-nous	-
18	236129		Pal Nut 3/8-27		Appelez-nous	-
19	327621		Screw 6-20x3/8``		Appelez-nous	-
20	331297		Knob-thermostat		Appelez-nous	-
21	325677		Lens-indicator Light (3 Req)		Appelez-nous	-
22	155021		G.m. Screw 8-32x3/16``		Appelez-nous	-
23	322966		Knob-infinite Control Switch (4 Req)				$ 44.69
24	329934		Knob-selector Switch		Appelez-nous	-
25	326974		Screw 10abx1/2``		Appelez-nous	-
26	326085		Wire Cover-backguard		Appelez-nous	-

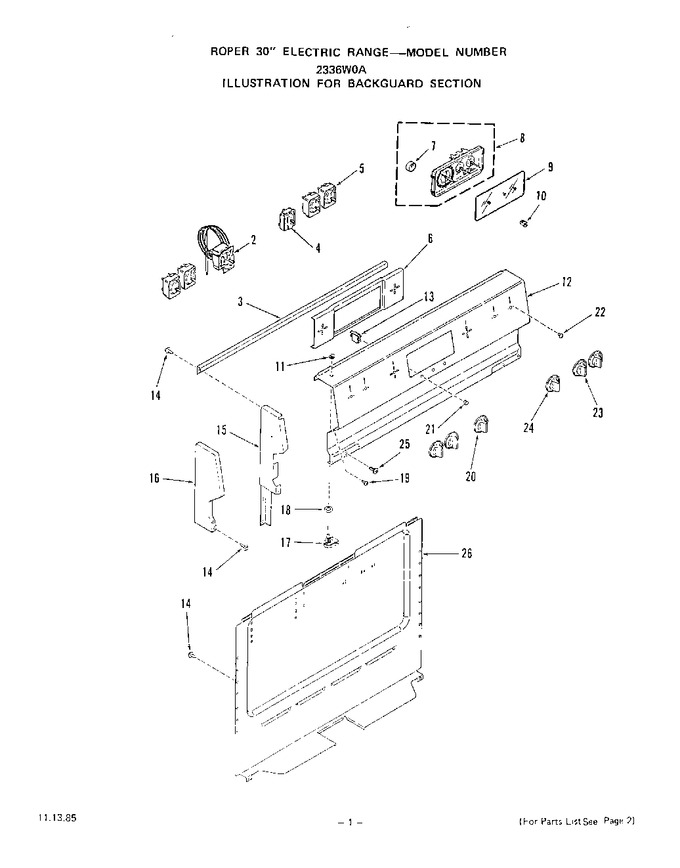

    View Diagram in Separate Window       Print Part List
