SELECT A DIAGRAM

01 - Backguard


02 - Main Top


03 - Power Lock


04 - Body


05 - Oven Door


06 - Wire Harness


07 - Wire Harness

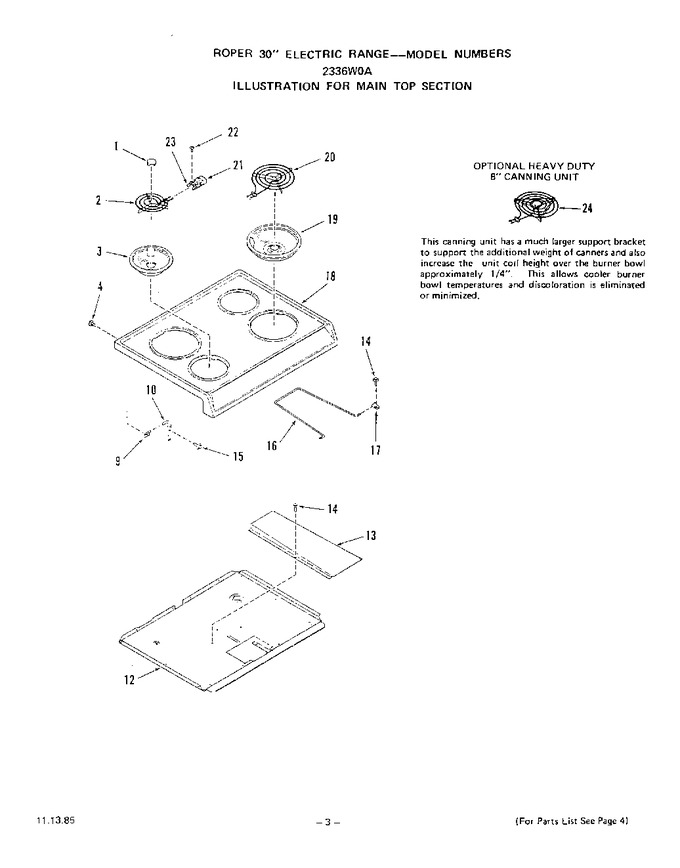

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	319704		Medallion (2 Req. (canning Units-optional))		Appelez-nous	-
1	318586		Medallion (4 Req)		Appelez-nous	-
2	325507		6`` Surface Unit (240 Volt-208 Volt) Lt. Front & Rt. Rear		Appelez-nous	-
3	WPW10196406		6`` Chrome Bowl-lt., Rt. Rear & Lt. Front   (Replaces: 296481)			Immediately	$ 12.05
4	326974		Screw 10abx1/2``		Appelez-nous	-
9	320931		Bracket-main Top Hinge (2 Req)		Appelez-nous	-
10	320922		Hinge-main Top (left)		Appelez-nous	-
10	320921		Hinge-main Top (right)		Appelez-nous	-
12	331589		Burner Box Bottom		Appelez-nous	-
13	308830		Cover-lock Rod		Appelez-nous	-
14	327320		Screw 10-16x7/16``		Appelez-nous	-
15	321162		Screw 10-32 X 3/4``		Appelez-nous	-
16	320725		Support Rod-main Top		Appelez-nous	-
17	285945		Clip (2 Req)		Appelez-nous	-
18	326530		Main Top		Appelez-nous	-
19	WPW10196405		8`` Chrome Bowl (rt. Front & Lt. Rear)   (Replaces: 304969)			Immediately	$ 15.56
20	325503		8`` Surface Unit (240 Volt-208 Volt) Rt. Front & Lt. Rear		Appelez-nous	-
21	330031		Terminal Block W/wire Lead (4 Req)   (Replaces: 318960)			Immediately	$ 17.93
22	299632		Screw 7-32x5/16``		Appelez-nous	-
23	318872		Bracket-terminal Block (4 Req)		Appelez-nous	-
24	WPY04100165		Optional Heavy Duty 8`` Canning Unit (208 Volt)   (Replaces: 326787)			Immediately	$ 56.92
24	326786		Optional Heavy Duty 8`` Canning Unit (240 Volt)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
