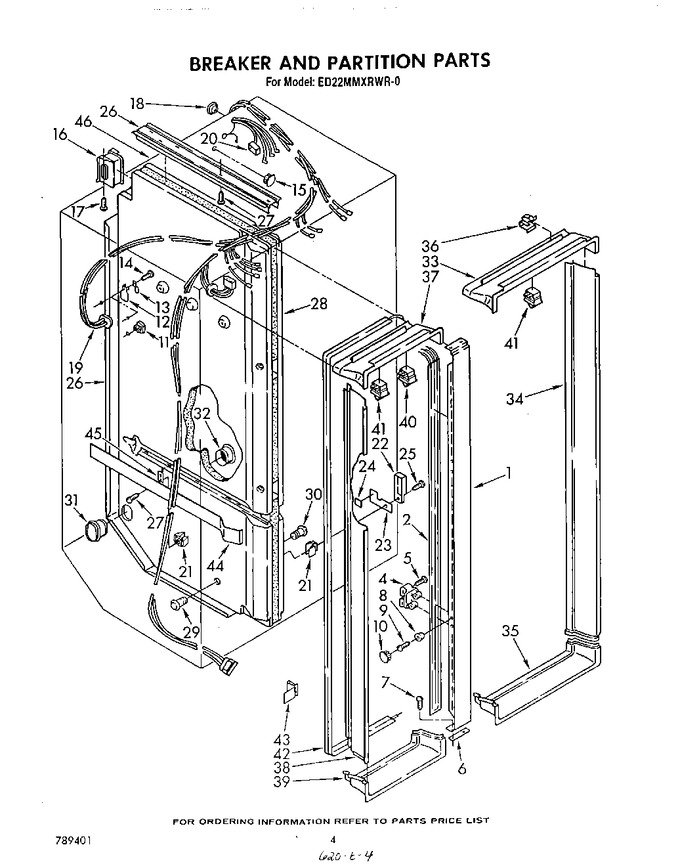

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 985974 | Center Rail Mullion (white) |
|
- | |||||
| 1 | 989921 | Center Rail Mullion (golden Harvest) |
|
- | |||||
| 1 | 989923 | Center Rail Mullion (almond) |
|
- | |||||
| 1 | 1101361 | Center Rail, Mullion (toast) |
|
- | |||||
| 1 | 1101362 | Center Rail, Mullion (platinum) |
|
- | |||||
| 2 | 936199 | Heater, Mullion |
|
- | |||||
| 4 | 849367 | Stabilizer, Mullion (2) |
|
$ 8.30 | |||||
| 5 | WP488787 | Screw, 8-18 X 1/2 (2) (Replaces: 487927) |
|
$ 11.26 | |||||
| 6 | 983592 | Spacer |
|
- | |||||
| 7 | WP489069 | Screw, 8 X 1/2a (4) (Replaces: 488480) |
|
Immediately | $ 8.40 | ||||
| 7 | WP308685 | Screw (repair) (Replaces: 488258) |
|
Immediately | $ 7.87 | ||||
| 8 | 849368 | Spacer, Screw (4) |
|
- | |||||
| 9 | 488318 | Screw, 8 X 7/8 (4) |
|
- | |||||
| 10 | 848414 | Hole Cover (4) |
|
- | |||||
| 11 | 842339 | Grommet |
|
- | |||||
| 12 | 538532 | Grommet, Ice Maker (2) |
|
- | |||||
| 13 | 538533 | Clip, Support (2) |
|
- | |||||
| 14 | WP681414 | Screw, 10-12 X 3/8 (2) (Replaces: 488552) |
|
Immediately | $ 8.47 | ||||
| 15 | 519890 | Hole Plug (2) |
|
- | |||||
| 16 | 848433 | Control Connector & Gasket Assembly |
|
- | |||||
| 17 | WP488163 | Screw, 8 X 13/16 (4) (Replaces: 488208) |
|
$ 7.92 | |||||
| 18 | 851020 | Grommet, Wiring |
|
- | |||||
| 19 | 481658 | Harness, Cabinet Wiring (ice Maker) |
|
- | |||||
| 20 | 481782 | Harness, Cabinet Wiring (defrost Timer) |
|
- | |||||
| 21 | 537095 | Expansion Clip |
|
- | |||||
| 22 | 984101 | Escutcheon, Cold Control |
|
- | |||||
| 23 | 984102 | Slide, Cold Control |
|
$ 5.02 | |||||
| 24 | 992358 | Pad, Foam |
|
- | |||||
| 25 | 486214 | Screw 8-15 X 1/2 |
|
- | |||||
| 26 | 946146 | Track Divider (back & Bottom) |
|
- | |||||
| 26 | 988455 | Track, Divider (top) |
|
- | |||||
| 27 | W11624204 | Screw, 8 X 1/2 (15) (Replaces: 486194) |
|
$ 14.72 | |||||
| 28 | 940968 | Divider Mullion Assembly |
|
- | |||||
| 29 | 843888 | Retainer, Hole |
|
- | |||||
| 30 | 843887 | Insert, Hole |
|
- | |||||
| 31 | 982921 | Insert, Hole |
|
- | |||||
| 32 | 982920 | Retainer, Hole |
|
- | |||||
| 33 | 848475 | Breaker Trim, Top |
|
- | |||||
| 34 | 848476 | Breaker Trim (r.s.) |
|
- | |||||
| 35 | 848477 | Breaker, Trim (bottom) |
|
- | |||||
| 36 | 836090 | Retainer, Breaker (9) |
|
- | |||||
| 37 | 937536 | Breaker Trim, Top |
|
- | |||||
| 38 | 848480 | Breaker Trim (l.s.) |
|
- | |||||
| 39 | 848481 | Breaker Trim, Bottom |
|
- | |||||
| 40 | WP4387911 | Switch, Rocker Arm (Replaces: 851387) |
|
Immediately | $ 41.64 | ||||
| 41 | W11384469 | Rocker Arm Switch (Replaces: 549702) |
|
Immediately | $ 39.09 | ||||
| 42 | 989660 | Stile Heater |
|
- | |||||
| 43 | 935663 | Clip, Heater (6) |
|
- | |||||
| 44 | 848482 | Cover, Heat Exchanger |
|
- | |||||
| 45 | 983605 | Heat Exchanger, Clip |
|
- |
