Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 1100384 Refrigerator, Door Panel (platinum) Appelez-nous -
1 943197 Refrigerator, Door Panel (white) Appelez-nous -
1 943199 Refrigerator, Door Panel (golden Harvest) Appelez-nous -
1 943201 Refrigerator, Door Panel (almond) Appelez-nous -
1 1100383 Refrigerator, Door Panel (toast) Appelez-nous -
2 988402 Tap Plate Appelez-nous -
3 4318165 Door, Cam Upper   (Replaces: 986758) In-Stock Immediately $ 29.74

4 WP489069 Screw, 8 X 1/2   (Replaces: 488938) In-Stock Immediately $ 8.40

5 988420 Bracket, Door Stop Appelez-nous -
6 988421 Shim Appelez-nous -
7 488549 Screw, 8 X 5/8 Appelez-nous -
8 509929 Cap, Hinge Appelez-nous -
9 534927 Hole Plug Appelez-nous -
10 836120 Retainer, Side Appelez-nous -
11 836121 Retainer, Top & Bottom Appelez-nous -
12 2188404A Door, Gasket Magnetic   (Replaces: 939565) Special Order $ 269.26

13 WP681414 Screw ((repair))   (Replaces: 488552) In-Stock Immediately $ 8.47

13 WP489069 Screw, No.7 X 1/2   (Replaces: 489101) In-Stock Immediately $ 8.40

14 1108841 Handle, Center (for Platinum Model Only) Appelez-nous -
14 1108792 Handle, Center Appelez-nous -
15 935103 Center End Cap (2) Appelez-nous -
16 935075 Shim, Handle Center (2) Appelez-nous -
17 941242 Screw Anchor (2) Appelez-nous -
18 WPW10141645 Screw, 8 X 1/2   (Replaces: 489084) Special Order $ 8.05

19 1108795 Insert, Handle (top) (almond) Appelez-nous -
19 1108793 Insert, Handle (top) (white) Appelez-nous -
19 1108794 Insert, Handle (top) (golden Harvest) Appelez-nous -
19 1108796 Insert, Handle (top) (toast) Appelez-nous -
19 1108797 Insert, Handle (top) (platinum) Appelez-nous -
20 1108802 Insert, Handle (bottom) (platinum) Appelez-nous -
20 1108798 Insert, Handle (bottom) (white) Appelez-nous -
20 1108799 Insert, Handle (bottom) (golden Harvest) Appelez-nous -
20 1108800 Insert, Handle (bottom) (almond) Appelez-nous -
20 1108801 Insert, Handle (bottom) (toast) Appelez-nous -
21 941954 Retainer Insert Appelez-nous -
22 942081 Retainer, Insert Appelez-nous -
23 941259 End Cap Appelez-nous -
24 935106 End Cap Insert Appelez-nous -
25 488915 Screw, 6-32 X 1/2 Appelez-nous -
26 489075 Screw, 10-32 X 3/8 Appelez-nous -
27 988671 Interior Door, Panel Appelez-nous -
28 1108786 Trim, Door Shelf Appelez-nous -
29 839904 Retainer, Door Trim Special Order $ 5.65

30 1108787 Trim Door Shelf Appelez-nous -
31 988709 Retainer Door Trim Appelez-nous -
32 1108788 Compartment Door Appelez-nous -
33 983804 Shelf Ladder Appelez-nous -
34 537095 Clip, Expansion Appelez-nous -
35 WP488729 Screw, 8 X 1/2   (Replaces: 488320) In-Stock Immediately $ 8.28

37 945116 Insert, Nameplate Appelez-nous -
39 1108789 Shelf, Door Cantilever Appelez-nous -
41 520747 Tray, Butter Appelez-nous -
42 WP1104787 Shim, Door Closer Cam   (Replaces: 1104787) Special Order $ 7.96


    View Diagram in Separate Window     Print Icon   Print Part List

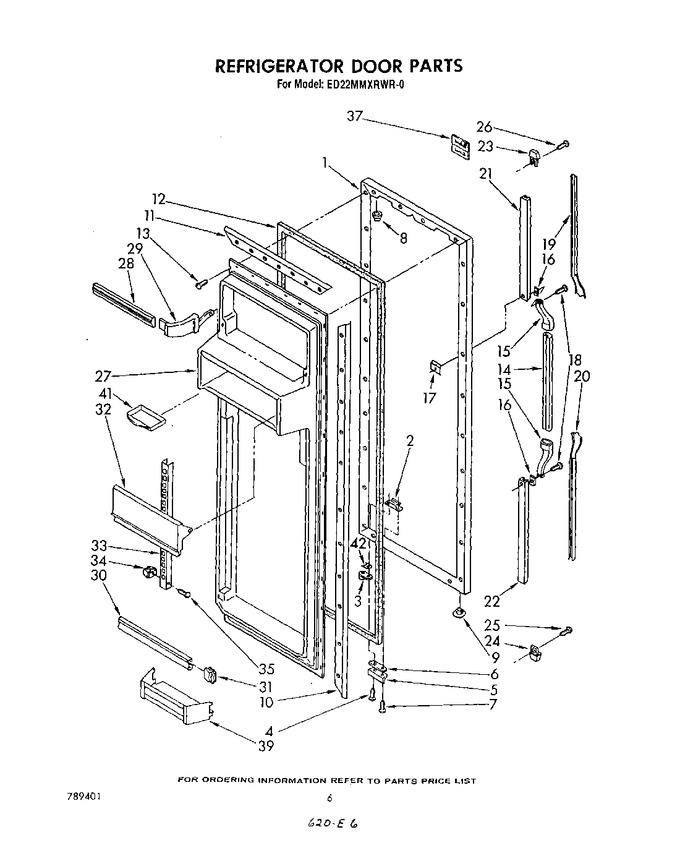

Diagram for ED22MMXRWR0
