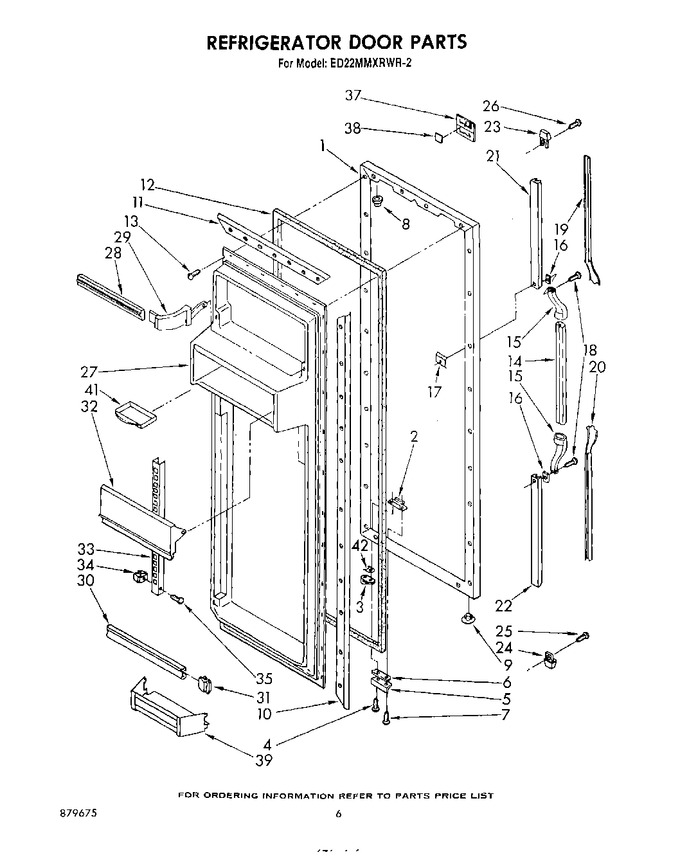

04 - Refrigerator Door


05 - Freezer Door


06 - Freezer Liner


07 - Dispenser Front


08 - Airflow


09 - Refrigerator Interior , Lit/optional


10 - Unit


11 - Ice Maker


12 - Airflow And Control


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1100384		Refrigerator, Door Panel (platinum)		Appelez-nous	-
1	943197		Refrigerator, Door Panel (white)		Appelez-nous	-
1	943199		Refrigerator, Door Panel (golden Harvest)		Appelez-nous	-
1	943201		Refrigerator, Door Panel (almond)		Appelez-nous	-
1	1100383		Refrigerator, Door Panel (toast)		Appelez-nous	-
2	988402		Tap Plate		Appelez-nous	-
3	4318165		Door, Cam Upper   (Replaces: 986758)			Immediately	$ 29.74
4	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 8.40
5	988420		Bracket, Door Stop		Appelez-nous	-
6	988421		Shim		Appelez-nous	-
7	488549		Screw, 8 X 5/8		Appelez-nous	-
8	509929		Cap, Hinge		Appelez-nous	-
9	534927		Hole Plug		Appelez-nous	-
10	836120		Retainer, Side		Appelez-nous	-
11	836121		Retainer, Top & Bottom		Appelez-nous	-
12	2188404A		Door, Gasket Magnetic   (Replaces: 939565)				$ 269.26
13	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
13	WP489069		Screw, No.7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
14	1110287		Handle, Center (for Platinum Model Only)		Appelez-nous	-
14	1108792		Handle, Center		Appelez-nous	-
15	935103		Center End Cap (2)		Appelez-nous	-
16	935075		Shim, Handle Center (2)		Appelez-nous	-
17	941242		Screw Anchor (2)		Appelez-nous	-
18	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 8.05
19	1108796		Insert, Handle (top) (toast)		Appelez-nous	-
19	1108793		Insert, Handle (top) (white)		Appelez-nous	-
19	1108794		Insert, Handle (top) (golden Harvest)		Appelez-nous	-
19	1108795		Insert, Handle (top) (almond)		Appelez-nous	-
19	1108797		Insert, Handle (top) (platinum)		Appelez-nous	-
20	1108802		Insert, Handle (bottom) (platinum)		Appelez-nous	-
20	1108798		Insert, Handle (bottom) (white)		Appelez-nous	-
20	1108799		Insert, Handle (bottom) (golden Harvest)		Appelez-nous	-
20	1108800		Insert, Handle (bottom) (almond)		Appelez-nous	-
20	1108801		Insert, Handle (bottom) (toast)		Appelez-nous	-
21	941954		Retainer Insert		Appelez-nous	-
22	942081		Retainer, Insert		Appelez-nous	-
23	941259		End Cap		Appelez-nous	-
24	935106		End Cap Insert		Appelez-nous	-
25	488915		Screw, 6-32 X 1/2		Appelez-nous	-
26	489075		Screw, 10-32 X 3/8		Appelez-nous	-
27	988671		Interior Door, Panel		Appelez-nous	-
28	1108786		Trim, Door Shelf		Appelez-nous	-
29	839904		Retainer, Door Trim				$ 5.65
30	1108787		Trim Door Shelf		Appelez-nous	-
31	988709		Retainer Door Trim		Appelez-nous	-
32	1108788		Compartment Door		Appelez-nous	-
33	983804		Shelf Ladder		Appelez-nous	-
34	537095		Clip, Expansion		Appelez-nous	-
35	WP488729		Screw, 8 X 1/2   (Replaces: 488320)			Immediately	$ 8.28
37	945116		Insert, Nameplate		Appelez-nous	-
38	991259		Tape Strip		Appelez-nous	-
39	1108789		Shelf, Door Cantilever		Appelez-nous	-
41	520747		Tray, Butter		Appelez-nous	-
42	WP1104787		Shim, Door Closer Cam   (Replaces: 1104787)				$ 7.96
