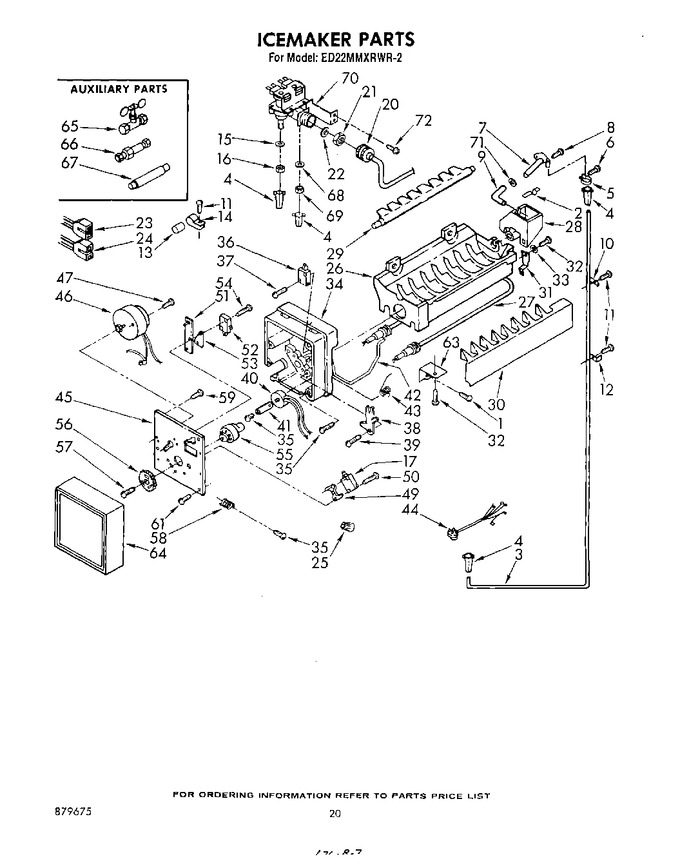

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-12 X 3/8   (Replaces: 488552)			Immediately	$ 8.47
2	652604		Clip		Appelez-nous	-
3	W10823511		Water Tube   (Replaces: 653415)			Immediately	$ 32.41
4	4387491		Insert, Plastic Tube (2)   (Replaces: 841707)				$ 8.23
5	WP488878		Tube Clamp   (Replaces: 488878)				$ 12.18
6	WP965173		Screw 8 X 3/8   (Replaces: 487415)			Immediately	$ 11.87
7	WP2196157		Fitting, Water Tube   (Replaces: 983990)			Immediately	$ 12.59
8	WP98165		Screw, 8 X 5/8 (2)   (Replaces: 488401)				$ 8.57
9	983656		Tube, Water Inlet		Appelez-nous	-
10	WP488366		Tube Clamp   (Replaces: 488366)				$ 11.92
11	WP489069		Screw, 8 X 1/2   (Replaces: 488645)			Immediately	$ 8.40
12	836472		Tube, Clamp		Appelez-nous	-
13	WP2158826		Dampener   (Replaces: 836074)				$ 1.82
14	510716		Tube Clamp		Appelez-nous	-
15	488794		``o`` Ring Seal		Appelez-nous	-
16	WP627018		Nut   (Replaces: 627018)				$ 11.51
17	627848		Switch, S.p.d.t.		Appelez-nous	-
20	627860		Tube, Inlet		Appelez-nous	-
21	537588		Nut, Valve		Appelez-nous	-
22	WP16123		Washer   (Replaces: 488292)				$ 8.16
23	548734		Wiring, Water Valve		Appelez-nous	-
24	850564		Wiring, Dispenser Valve		Appelez-nous	-
25	227991		Connector Wire		Appelez-nous	-
26	627170		Mold & Heater Assembly		Appelez-nous	-
27	625843		Heater, Mold		Appelez-nous	-
28	625707		Bearing & Inlet		Appelez-nous	-
29	WP627843		Ejector   (Replaces: 627169)				$ 87.78
30	627753		Stripper, Ice		Appelez-nous	-
31	627409		Bracket, Shut-off Arm		Appelez-nous	-
32	00489128		Screw   (Replaces: 489128)				$ 859.97
33	627435		Fastener		Appelez-nous	-
34	625827		Support		Appelez-nous	-
35	488372		Screw, 8-32 X 1		Appelez-nous	-
36	625851		Switch, S.p.d.t.		Appelez-nous	-
37	488360		Screw, 4-24 X 3/4		Appelez-nous	-
38	625830		Lever, Arm		Appelez-nous	-
39	627199		Screw, Shoulder		Appelez-nous	-
40	627047		Thermostat		Appelez-nous	-
41	625829		Clamp, Thermostat		Appelez-nous	-
42	627484		Arm, Shut-off		Appelez-nous	-
43	625832		Spring, Shut-off Arm		Appelez-nous	-
44	627357		Wiring Harness		Appelez-nous	-
45	627782		Plate, Mounting		Appelez-nous	-
46	625846		Motor		Appelez-nous	-
47	488361		Screw (used W/ 625846 Motor)		Appelez-nous	-
49	625834		Spacer, Holding Switch				$ 7.99
50	488361		Screw, 4-40 X 1		Appelez-nous	-
51	625836		Plate, Valve		Appelez-nous	-
52	625947		Switch, S.p.s.t.		Appelez-nous	-
53	627680		Insulator		Appelez-nous	-
54	00488362		Screw, 4-40 X 3/4   (Replaces: 488362)				$ 144.58
55	625913		Cam		Appelez-nous	-
56	625914		Gear		Appelez-nous	-
57	488957		Screw		Appelez-nous	-
58	627163		Spring		Appelez-nous	-
59	488542		Screw, 8-32 X 1/4		Appelez-nous	-
61	WP488787		Screw, (8-18 X 1/2)   (Replaces: 488886)				$ 11.26
63	WP2256087		Bracket   (Replaces: 625910)				$ 97.65
64	627356		Cover		Appelez-nous	-
65	541157		Valve, Shut-off		Appelez-nous	-
66	512503		Union		Appelez-nous	-
67	978488		Filter Kit		Appelez-nous	-
68	00753257		Ring, ``o``   (Replaces: 488819)			Immediately	$ 295.49
69	488795		Nut		Appelez-nous	-
70	4318046		Valve, Solenoid   (Replaces: 627890)			Immediately	$ 92.87
71	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 10.43
72	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488649)				$ 22.22
